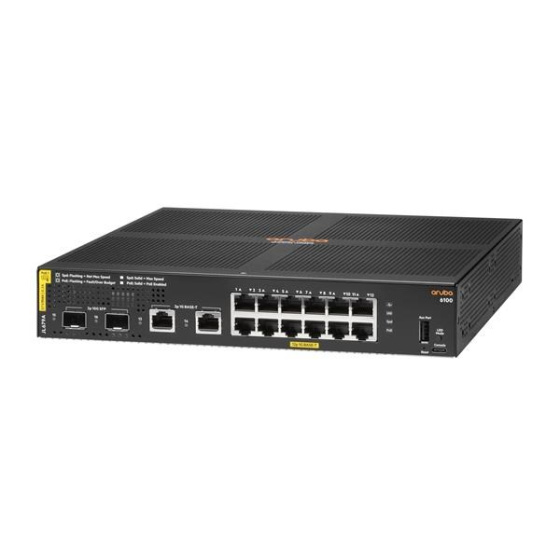

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
Kód: 1881199Skladom
Termín a spôsob doručenia
Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps, 10 Gigabit optika, Gigabit ethernet + 10 Gigabit optika, Gigabit optika; Maximálny počet portov:12; Management:SNMP/RMON; Vlastnosti switche:Funkcia POE na portoch.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
1881199
EAN:
190017348964
Záruka:
24 Doživotní
Stav:
Maximální počet portů:
12
Provedení:
Rack mounted 19"
Technologie:
Gigabit ethernet + 10 Gigabit optika, 10 Gigabit optika, Gigabit Ethernet 1000Mbps, Gigabit optika
Management:
SNMP/RMON
Vlastnosti switche:
Funkce POE po portech
PoE budget (W):
140
Přenosová rychlost LAN (Mb/s):
45
Funkce:
QoS (Quality of service), VPN, L3, L2, DHCP snooping, Stohovatelnost, PoE (Power over ethernet), VLAN (virtual local area network)
Počet SFP portů:
2
Počet PoE Out portů:
12
Počet SFP+ portů:
2
Podporované standardy PoE:
802.3at, 802.3af
Počet portů LAN:
12
Ventilátor:
Ne
Počet PoE+ portů:
12
Počet portů LAN:
12
Maximální počet portů:
12
Počet PoE Out portů:
12
Počet SFP portů:
2
Počet SFP+ portů:
2
PoE budget (W):
140
Počet PoE+ portů:
12
Počet USB 2.0:
2
Počet USB 2.0:
2
Popis Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB

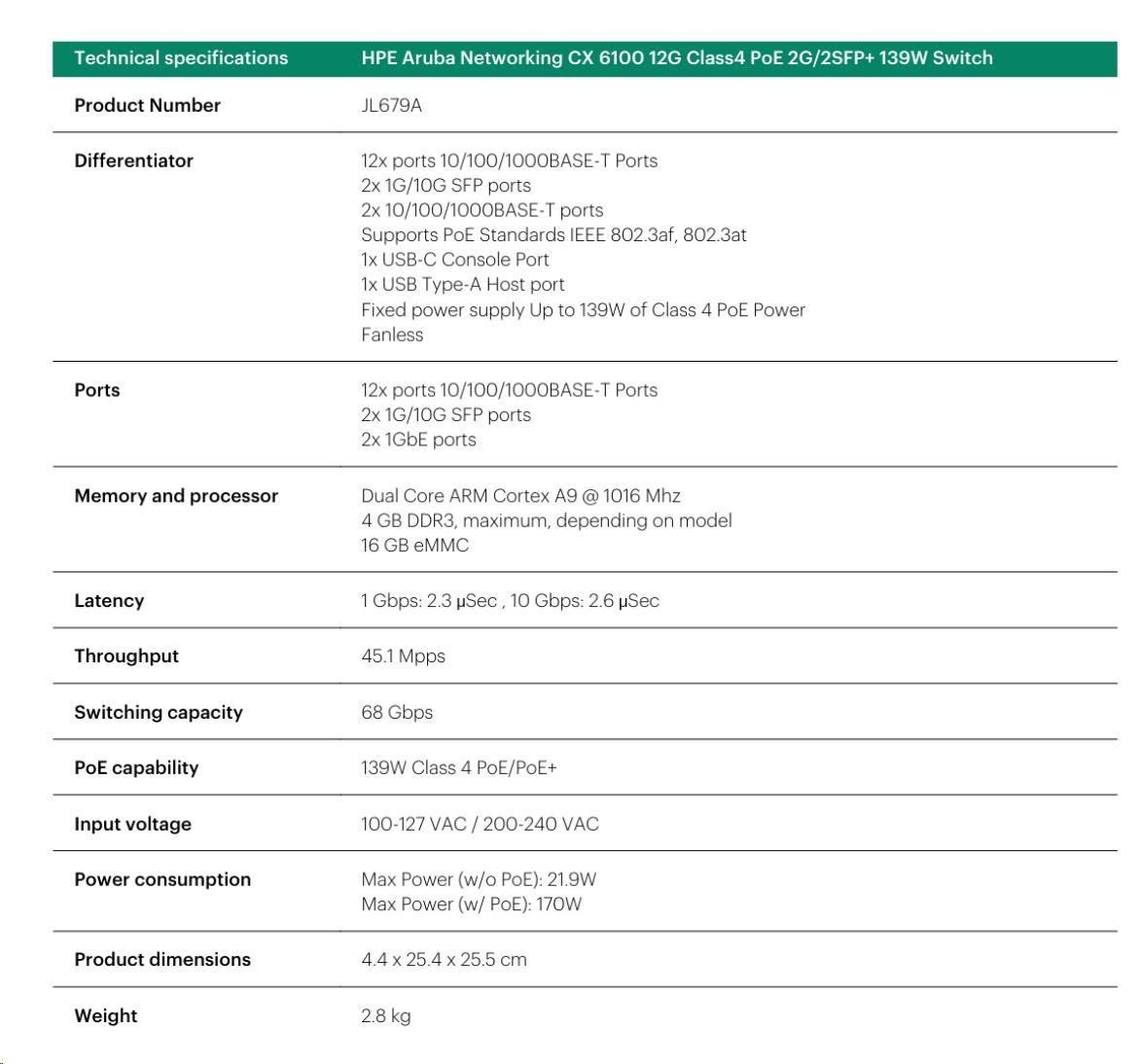

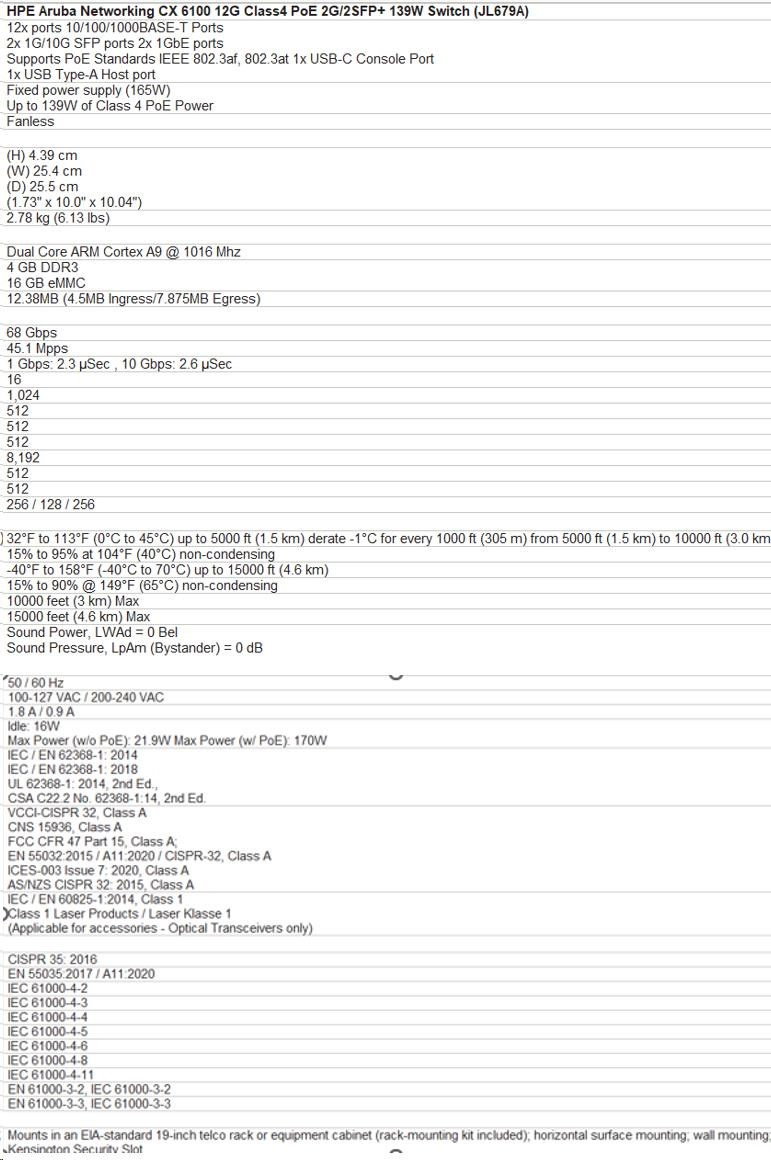

Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch JL679A#ABB
.
| Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) | |
| Description | 12x ports 10/100/1000BASE-T Ports 2x 1G/10G SFP ports 2x 1GbE ports Supports PoE Standards IEEE 802.3af, 802.3at 1x USB-C Console Port 1x USB Type-A Host port |
| Power supplies | Fixed power supply (165W) Up to 139W of Class 4 PoE Power |
| Fans | Fanless |
| Physical characteristics | |
| Dimensions | (H) 4.39 cm (W) 25.4 cm (D) 25.5 cm (1.73" x 10.0" x 10.04") |
| Configuration Weight | 2.78 kg (6.13 lbs) |
| Additional Specifications | |
| CPU | Dual Core ARM Cortex A9 @ 1016 Mhz |
| Memory and Flash | 4 GB DDR3 16 GB eMMC |
| Packet Buffer | 12.38MB (4.5MB Ingress/7.875MB Egress) |
| Performance | |
| Model Switching Capacity | 68 Gbps |
| Model Throughput Capacity | 45.1 Mpps |
| Average Latency (LIFO-64-bytes packets) | 1 Gbps: 2.3 µSec , 10 Gbps: 2.6 µSec |
| Switched Virtual Interfaces (dual stack) | 16 |
| IPv4 Host Table (ARP) | 1,024 |
| IPv6 Host Table (ND) | 512 |
| IPv4 Unicast Routes | 512 |
| IPv6 Unicast Routes | 512 |
| MAC Table Capacity | 8,192 |
| IGMP Groups | 512 |
| MLD Groups | 512 |
| IPv4/IPv6/MAC ACL Entries (ingress) | 256 / 128 / 256 |
| Environment | |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) up to 5000 ft (1.5 km) derate -1°C for every 1000 ft (305 m) from 5000 ft (1.5 km) to 10000 ft (3.0 km) |
| Operating Relative Humidity | 15% to 95% at 104°F (40°C) non-condensing |
| Non-Operating | -40°F to 158°F (-40°C to 70°C) up to 15000 ft (4.6 km) |
| Non-Operating Storage Relative Humidity | 15% to 90% @ 149°F (65°C) non-condensing |
| Max Operating Altitude | 10000 feet (3 km) Max |
| Max Non-Operating Altitude | 15000 feet (4.6 km) Max |
| Acoustic | Sound Power, LWAd = 0 Bel Sound Pressure, LpAm (Bystander) = 0 dB |
| Primary Airflow | - |
| Aruba 6100 12G Class4 PoE 2G/2SFP+ 139W Switch (JL679A) | |
| Electrical Characteristics | |
| Frequency | 50 / 60 Hz |
| AC Voltage | 100-127 VAC / 200-240 VAC |
| Current | 1.8 A / 0.9 A |
| Power Consumption (230 VAC) | Idle: 16W Max Power (w/o PoE): 21.9W Max Power (w/ PoE): 170W |
| Safety | |
| UL 60950-1; IEC 60950-1; EN 60950-1; CAN/ CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368- 1:2014 | |
| Emissions | |
| VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A | |
| Lasers | |
| EN 60825-1:2007 / IEC 60825- 1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only) | |
| Immunity | |
| Generic | CISPR 24 / CISPR 35 |
| EN | EN 55024:2010 / EN 55035:2017 |
| ESD | IEC 61000-4-2 |
| Radiated | IEC 61000-4-3 |
| EFT/Burst | IEC 61000-4-4 |
| Surge | IEC 61000-4-5 |
| Conducted | IEC 61000-4-6 |
| Power frequency magnetic field | IEC 61000-4-8 |
| Voltage dips and interruptions | IEC 61000-4-11 |
| Harmonics | EN 61000-3-2, IEC 61000-3-2 |
| Flicker | EN 61000-3-3, IEC 61000-3-3 |
| Mounting and Enclosure | |
| Mounts in an EIA-standard 19-inch telco rack or equipment cabinet (rack-mounting kit available); horizontal surface mounting; wall mounting | |
