ASRock MB Sc AM5 B650M PG LIGHTNING, AMD B650, 4xDDR5, 1xDP, 1xHDMI, mATX
Kód: 380892Skladom
Termín a spôsob doručenia
Formát:micro ATX; Chipset:AMD B650; Socket (pätica):Socket AM5 (LGA 1718); Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 10; PCI express 16x:2.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
380892
EAN:
4710483943829
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket AM5 (LGA 1718)
Formát základní desky:
micro ATX
Chipset:
AMD B650
PCI Express x16:
2
Podpora RAID:
1, 10
COM port:
Ne
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
8
USB 3:
7
M.2 slot:
3
SATA 3:
4
HDMI:
1
Led Header:
Ano
USB C:
2
Popis ASRock MB Sc AM5 B650M PG LIGHTNING, AMD B650, 4xDDR5, 1xDP, 1xHDMI, mATX

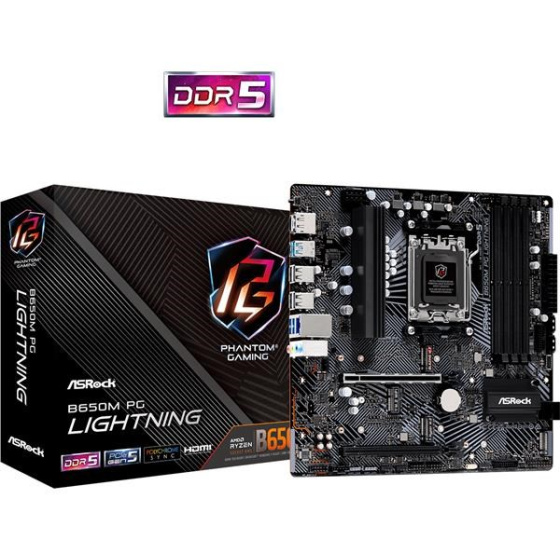

ASRock B650M PG Lightning
- Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
- 6+2+1 Power Phase, Dr.MOS
- Supports DDR5 7200+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 M.2 Key-E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen4 x2)
- Phantom Gaming 2.5G LAN
- Supports ASRock Auto Driver Installer, BIOS Flashback
CPU
Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset
AMD B650
Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*
- Max. capacity of system memory: 192GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules*
BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support
Graphics
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Phantom Gaming LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Slots
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
Chipset:
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)
Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
- 1 x USB 3.2 Gen2 Type-C (Rear)
- 1 x USB 3.2 Gen2 Type-A (Rear)
- 1 x USB 3.2 Gen1 Type-C (Front)
- 6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)
Connector
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
Rear Panel I/O
- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI
Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Phantom Gaming LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Unique Feature
Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 6+2+1 Power Phase, 50A Dr.MOS
Ultrafast Connectivity
- 2.5G LAN
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
OS
- Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Form Factor
- Micro ATX Form Factor: 24.4 cm x 24.4 cm
