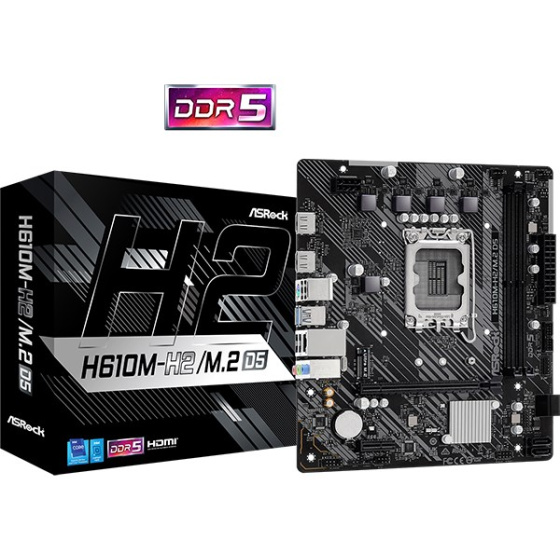

ASRock MB Sc LGA1700 H610M-H2/M.2 D5, Intel H610, 2xDDR5, 2xHDMI, mATX
Kód: 380877Na dotaz
Termín a spôsob doručenia
Formát:micro ATX; Chipset:Intel H610; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:Bez RAID podpory; PCI express 16x:1.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
380877
EAN:
4710483943775
Záruka:
36 Měsíc(ů)
Stav:
Typ pamäťového modulu:
DDR5
Socket (pätica):
Socket 1700
Formát:
micro ATX
Chipset:
Intel H610
PCI express 16x:
1
Podpora RAID:
Bez RAID podpory
COM port:
Ne
LPT port:
Ne
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Intel
Počet paměťových slotů:
2
TPM:
Ano
USB 2:
6
USB 3:
4
M.2 slot:
1
SATA 3:
4
HDMI:
2
Led Header:
Ne
PCI Express x1:
1
LAN:
1Gbit/s
Popis ASRock MB Sc LGA1700 H610M-H2/M.2 D5, Intel H610, 2xDDR5, 2xHDMI, mATX
ASRock H610M-H2/M.2 D5
- Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front), 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
CPU
- Supports 13th Gen & 12th Gen Intel® CoreTM Processors (LGA1700)
- Supports Intel® Hybrid Technology
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® H610
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel® CoreTM Processors support DDR5 non-ECC, un-buffered
memory up to 5600*
- 12th Gen Intel® CoreTM Processors support DDR5 non-ECC, un-buffered
memory up to 4800*
- Max. capacity of system memory: 96GB
- Supports Intel® Extreme Memory Profile (XMP) 3.0
* Actual support may vary by CPU
* Please refer to Memory Support List on ASRock's website for more information.
(http://www.asrock.com/)
Expansion Slot
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
* Supports NVMe SSD as boot disks
Graphics
* Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported
only with processors which are GPU integrated.
- Intel® Xe
Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible, support HDCP 2.3 and max. resolution
up to 4K 60Hz
Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
USB
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
* All USB ports support ESD Protection
Rear Panel I/O
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen3x4
(32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
Internal I/O
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1/WP supports the fan power up to 2A (24W).
** CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.
BIOS Feature
- 128Mb AMI UEFI Legal BIOS with GUI support
Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
OS
Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
Accessories
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
Unique Feature
Superb Productivity
- Dual Channel DDR5
Rock-Solid Durability
- 3+1+1 Power Phase
EZ Update
- ASRock Auto Driver Installer
Form Factor
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
