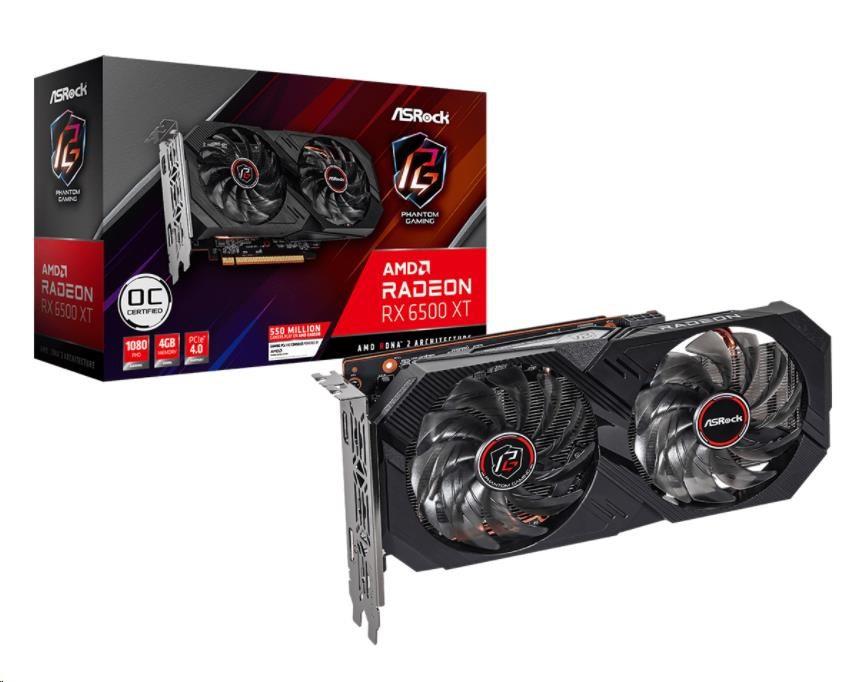

ASRock VGA AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC, RX 6500 XT, 4GB GDDR6, 1xDP, 1xHDMI

AMD Radeon RX 6500 XT Phantom Gaming D 4GB OC

Clock: GPU / Memory

• Boost Clock: Up to 2820 MHz / 18 Gbps
• Game Clock: Up to 2650 MHz / 18 Gbps
• Base Clock: 2365 MHz / 18 Gbps

Key Specification

• 6nm AMD Radeon™ RX 6500 XT
• 4GB GDDR6
• AMD RDNA™ 2 Architecture
• DirectX® 12 Ultimate
• PCI® Express 4.0 Support
• 1 x 8-pin Power Connector
• 1 x DisplayPort™ 1.4 with DSC
• 1 x HDMI™ 2.1 VRR

Key Features

• Dual Fan Design
• Stylish Metal Backplate
• Striped Axial Fan
• 0dB Silent Cooling
• Super Alloy Graphics Card
• ASRock Tweak 2.0
• AMD FidelityFX™ Super Resolution
• Hardware Raytracing

Graphics Engine

- AMD Radeon™ RX 6500 XT

Bus Standard

- PCI® Express 4.0 x4

DirectX

- 12 Ultimate

OpenGL

- 4.6

Memory

- 4GB GDDR6

Engine Clock

- Boost Clock: Up to 2820 MHz
- Game Clock: Up to 2650 MHz
- Base Clock: 2365 MHz

Stream Processors

- 1024

Memory Clock

- 18 Gbps

Memory Interface

- 64-bit

Resolution

- Digital Max Resolution: 7680 x 4320

Interface

- 1 x HDMI™ 2.1
- 1 x DisplayPort™ 1.4a HBR3

HDCP

- Yes

Multi-view

- 2

Recommended PSU

- 400W

Power Connector

- 1 x 8-pin

Accessories

- 1 x Quick Installation Guide

Dimensions

- 240 x 129 x 42 mm

Net Weight

- 459 g
