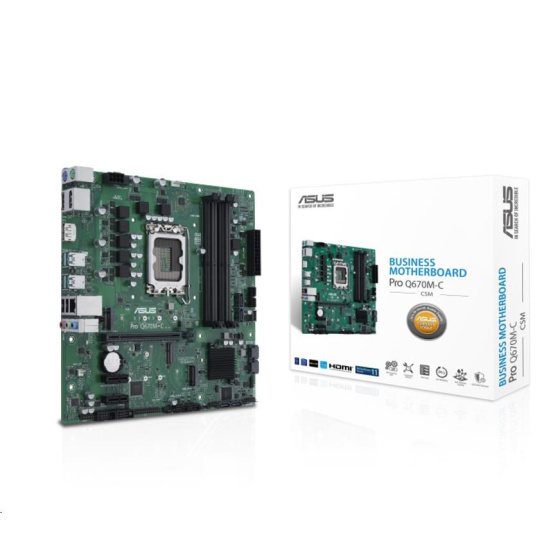

ASUS MB Sc LGA1700 PRO Q670M-C-CSM, Intel Q670, 4xDDR5, 2xDP, 1xHDMI, mATX
Kód: 1887240Skladom
Termín a spôsob doručenia
Formát:micro ATX; Chipset:Intel Q670; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:1.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
1887240
EAN:
4711081518389
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR5
Socket (patice):
Socket 1700
Formát základní desky:
micro ATX
Chipset:
Intel Q670
PCI Express x16:
1
Podpora RAID:
1, 5, 10
COM port:
Ano
LPT port:
Ano
3.5mm Jack:
Ano
Bezdrátové připojení:
bez
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
2
TPM:
Ne
USB 2:
6
USB 3:
6
M.2 slot:
2
SATA 3:
6
HDMI:
1
Led Header:
Ne
PCI Express x1:
2
USB C:
1
LAN:
1Gbit/s
Popis ASUS MB Sc LGA1700 PRO Q670M-C-CSM, Intel Q670, 4xDDR5, 2xDP, 1xHDMI, mATX
Pro Q670M-C-CSM
Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability
- Intel® LGA 1700 socket: Ready for 14th and 13th Gen Intel Core™ processors
- ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
- ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
- Enhanced system security: Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
- Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
- Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
- Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
Supports 14th Gen Intel® Core™ Processors
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® ProcessorsSupports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Q670 Chipset
Memory
4 x DIMM, Max. 128GB, DDR5 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Optimem II
*Actual Memory frequency support depends on the CPU types and DRAM modules, for more information refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics
1 x HDMI 2.0
2 x DisplayPort**
1 x HDMI®***
* Graphics specifications may vary between CPU types.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)*
1 x PCIe 4.0/3.0 x16 slot
Intel® Q670 Chipset
2 x PCIe 3.0 x1 slots
* Please check PCIe bifurcation table in support site.
Storage
Total supports 2 x M.2 slots and 6 x SATA 6Gb/s ports*
Intel® 14th & 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode
Intel® Q670 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 4.0 x4 mode)
6 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
*Wi-Fi module is sold separately.
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 7 ports
1 x USB 3.2 Gen 1 front panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback "
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 2 ports (4 x Type-A)
2x USB 2.0 ports (2 x Type-A)
2 x DisplayPort
1 x HDMI® port
3 x Audio jacks
1 x Intel® 1Gb Ethernet
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
6 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 Front Panel connector (suppports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrude header
2 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x DIS ME jumper
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x M.2 slot (Key E)
1 x Speaker header
1 x 10-1 System Panel header
Special Features
ASUS EZ DIY
- Box Headers
Bespoke Motherboard Design & Business Focused Features
- ASUS Boot Defender
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection
TPM 2.0 IC onboard
Software Features
ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)
BIOS
256 Mb Flash ROM
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
1 x M.2 Key E screw package
Installation Media
1 x Support DVD
Documentation
1 x ACC Express Activation Key Card
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor
24.4 cm x 24.4 cm
