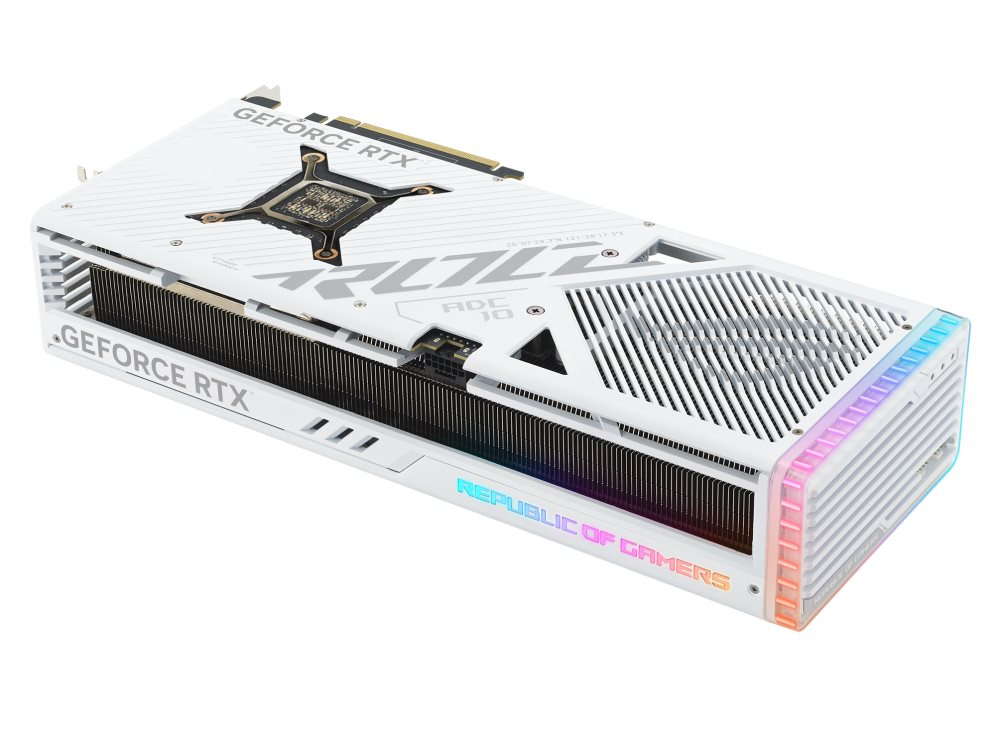

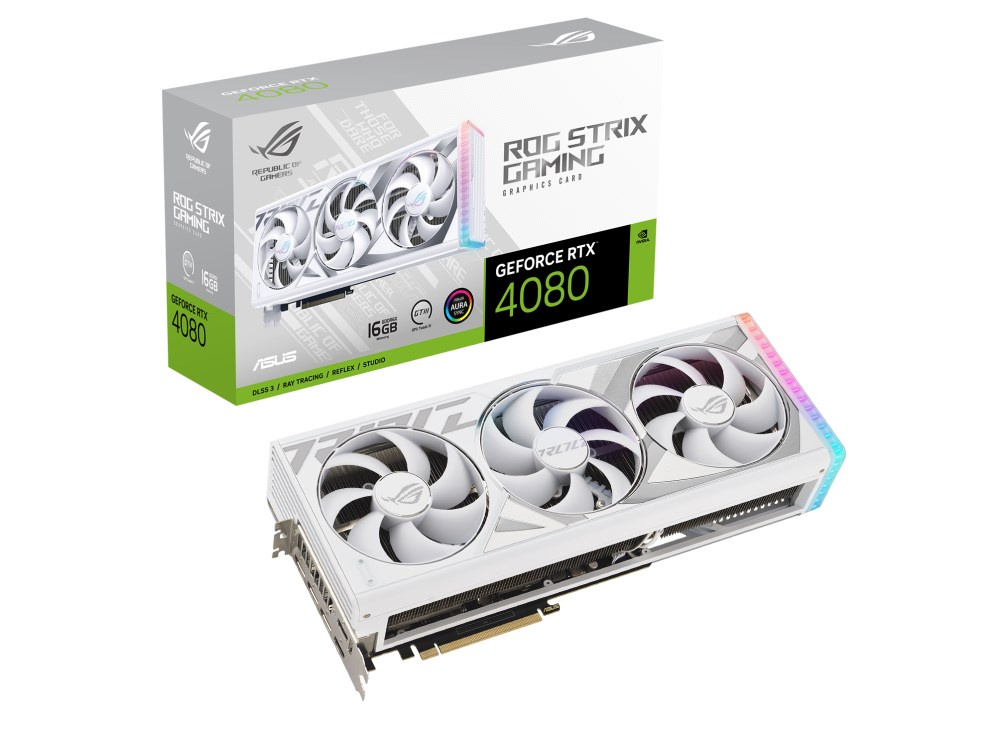

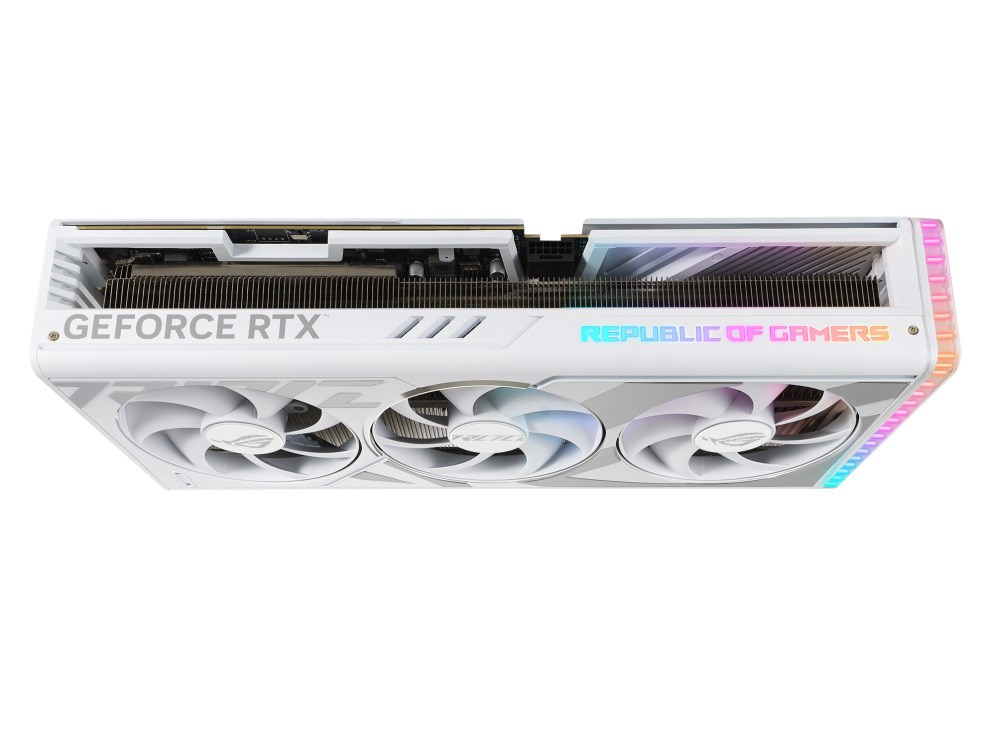

ASUS VGA NVIDIA GeForce ROG Strix RTX 4080 16GB GDDR6X White Edition, RTX 4080, 16GB GDDR6X, 3xDP, 2xHDMI
ROG Strix GeForce RTX 4080 16GB GDDR6X White Edition
ROG Strix GeForce RTX™ 4080 16GB GDDR6X White Edition with DLSS 3 and chart-topping thermal performance.
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up for 23% more airflow
- New patented vapor chamber with milled heatspreader for lower GPU temps
- 3.5-slot design: massive fin array optimized for airflow from the three Axial-tech fans
- Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
- Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Graphic Engine
NVIDIA® GeForce RTX™ 4080
Bus Standard
PCI Express 4.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR6X
Engine Clock
OC mode: 2535 MHz
Default mode: 2505 MHz (Boost Clock)
CUDA Core
9728
Memory Speed
22.4 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320
Interface
Yes x 2 (Native HDMI 2.1a)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Collection Card?
1 x Speedsetup Manual?
1 x Adapter Cable? (1 to 3)

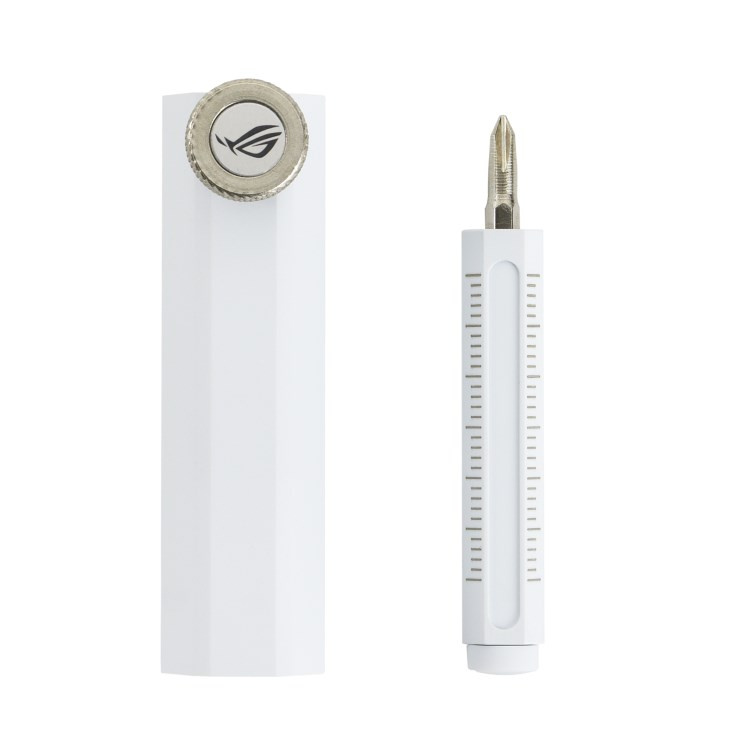

1 x ROG White Graphics Card Holder
1 x ROG White Velcro Hook & Loop
1 x Thank you Card
1 x ROG Ring
Software
ASUS GPU Tweak III & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
357.6 x 149.3 x 70.1mm
Recommended PSU
750W
Power Connectors
1 x 16-pin
Slot
3.5 Slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
