BAZAR - MSI MB Sc LGA1700 MAG Z790 TOMAHAWK MAX WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI - Po opravě (Bez příšlušen
Kód: 2648574Skladom
Termín a spôsob doručenia
Formát:ATX; Chipset:Intel Z790; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:2.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
2648574
EAN:
2648574
Záruka:
36 Měsíc(ů)
Stav:
Typ pamäťového modulu:
DDR5
Socket (pätica):
Socket 1700
Formát:
ATX
Chipset:
Intel Z790
PCI express 16x:
2
Podpora RAID:
1, 5, 10
LPT port:
Ne
Bezdrátové připojení:
WiFi + Bluetooth
Pro procesory:
Intel
Počet paměťových slotů:
4
DisplayPort:
1
TPM:
Ano
USB 2:
4
USB 3:
10
M.2 slot:
4
SATA 3:
8
HDMI:
1
Led Header:
Ano
PCI Express x1:
1
USB C:
3
Popis BAZAR - MSI MB Sc LGA1700 MAG Z790 TOMAHAWK MAX WIFI, Intel Z790, 4xDDR5, 1xDP, 1xHDMI, WI-FI - Po opravě (Bez příšlušen

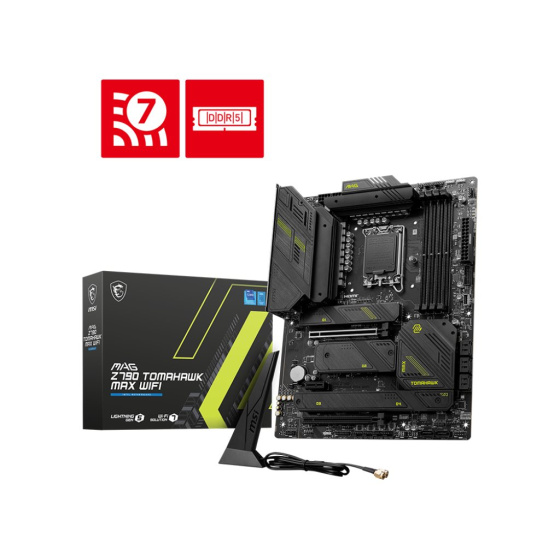

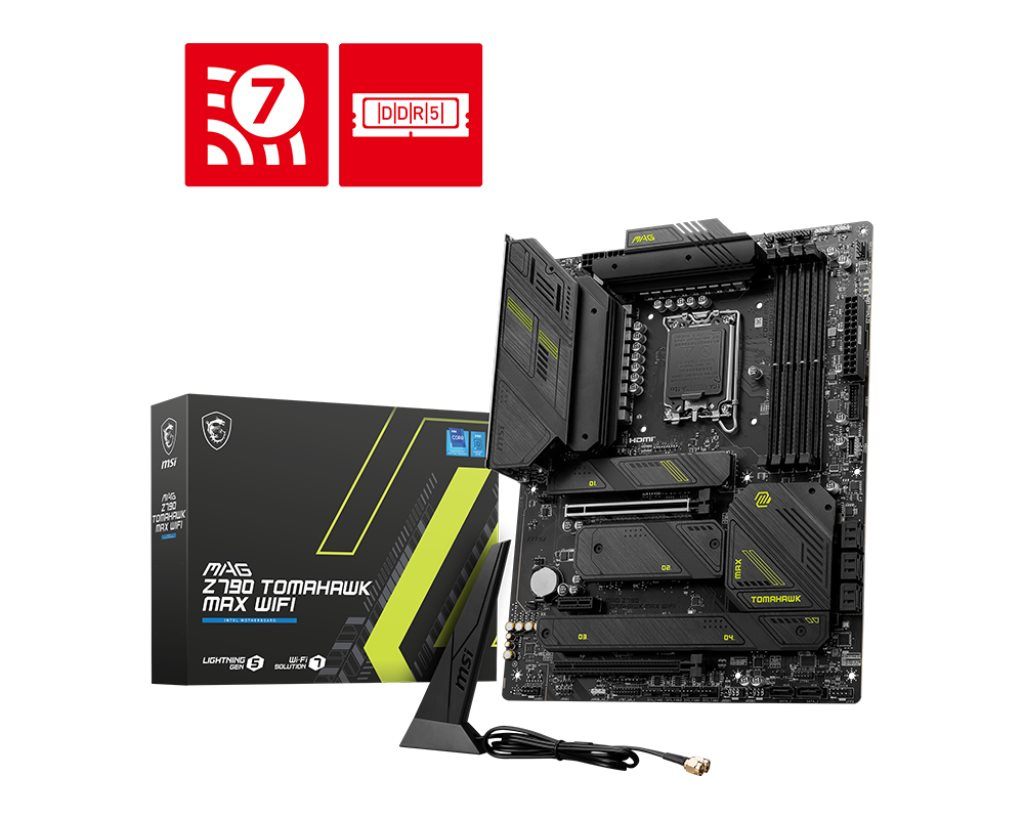

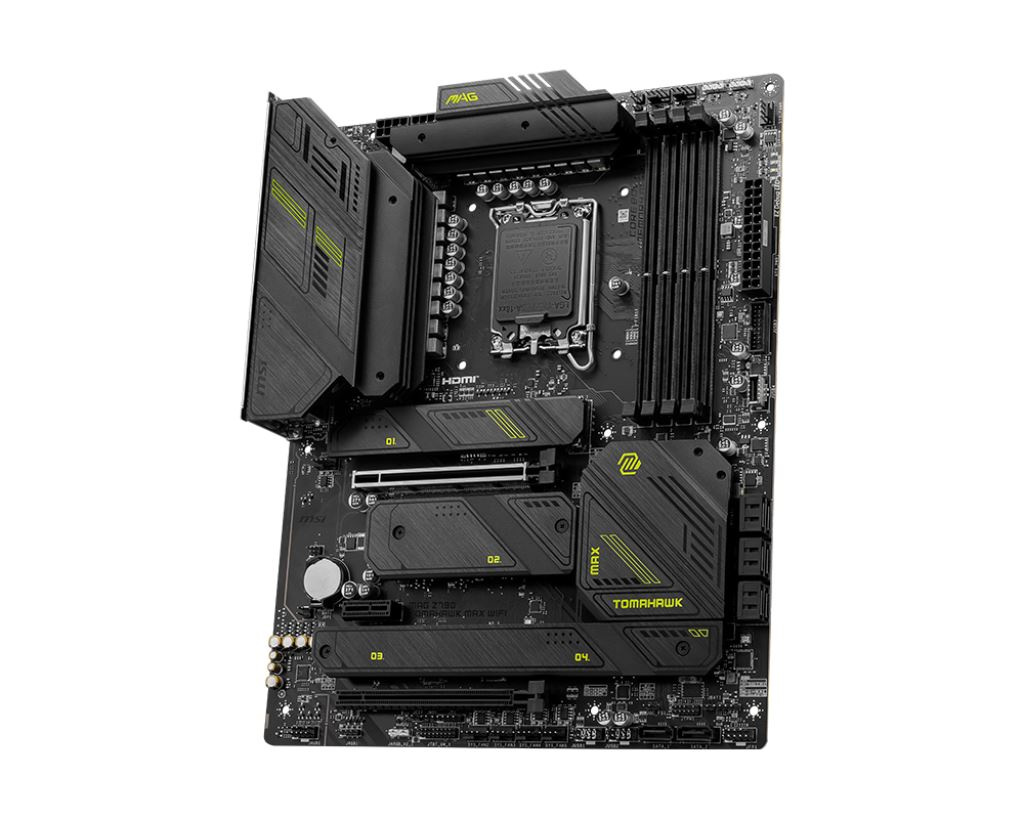

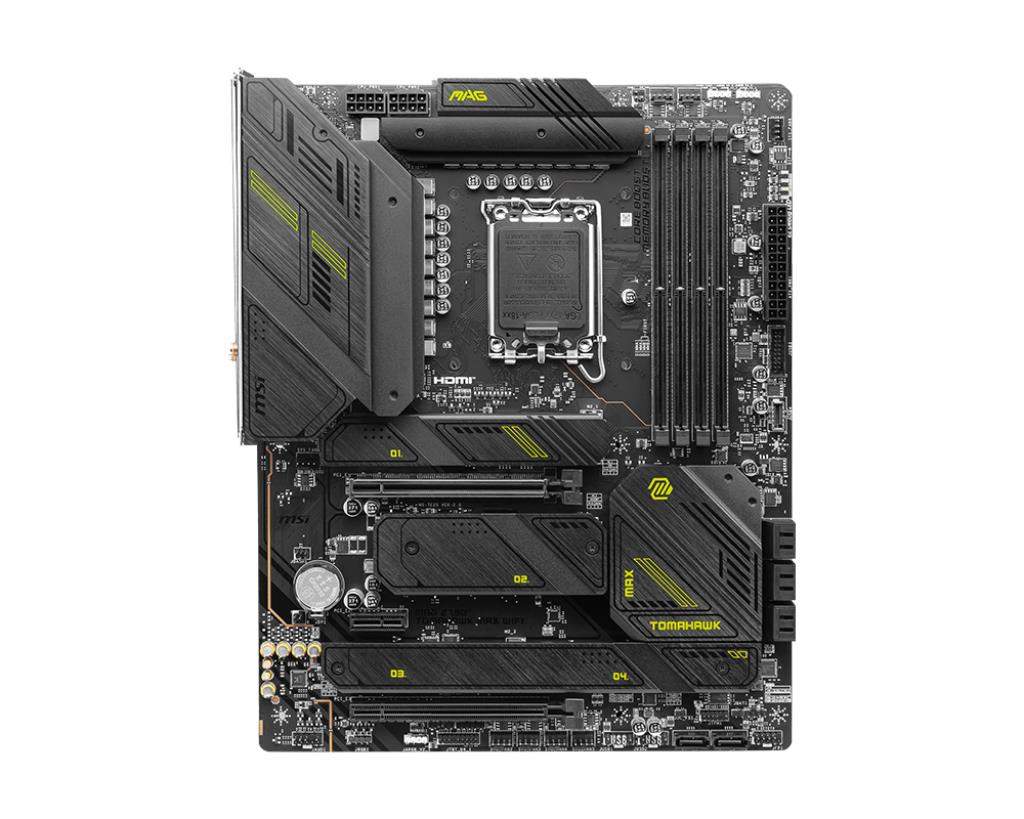

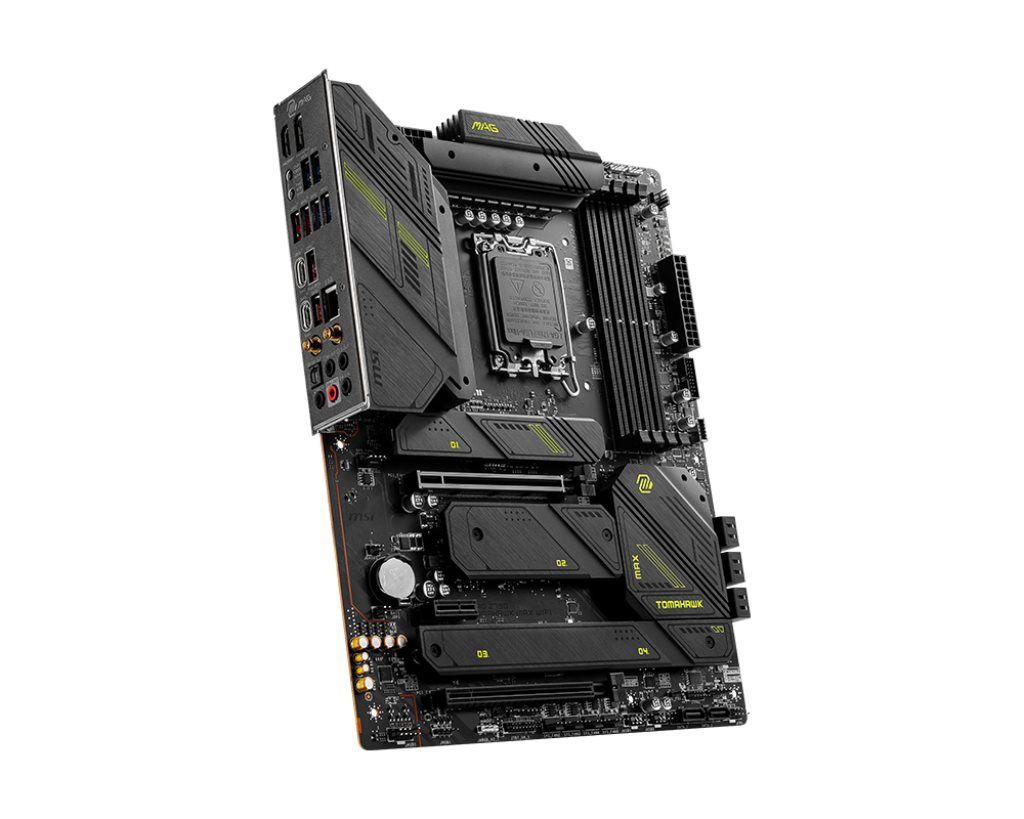

MSI MAG Z790 TOMAHAWK MAX WIFI
MAG Z790 TOMAHAWK MAX WIFI is designed for gamers, providing a stable, solid, and durable foundation for their PC builds. Coming up with Wi-Fi 7 solution, 2.5G LAN, DDR5, PCIe 5.0 solutions, and exclusive M.2 Shield Frozr, it's ready for Intel® next Gen and 13th Gen Core processors.
The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
CPU
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
CHIPSET
INTEL Z790
MEMORY
4x DDR5 UDIMM, Maximum Memory Capacity 192GB
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
ONBOARD GRAPHICS
1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT
2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE
4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
8x SATA 6G
* SATA_1 will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
* SATA_A1_A2 do not support RAID function.
USB
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
4x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
LAN
Intel® 2.5Gbps LAN
WIRELESS / BLUETOOTH
Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
AUDIO
Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-Bit/384 kHz playback on front panel
INTERNAL I/O
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
6x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
LED FEATURE
4x EZ Debug LED

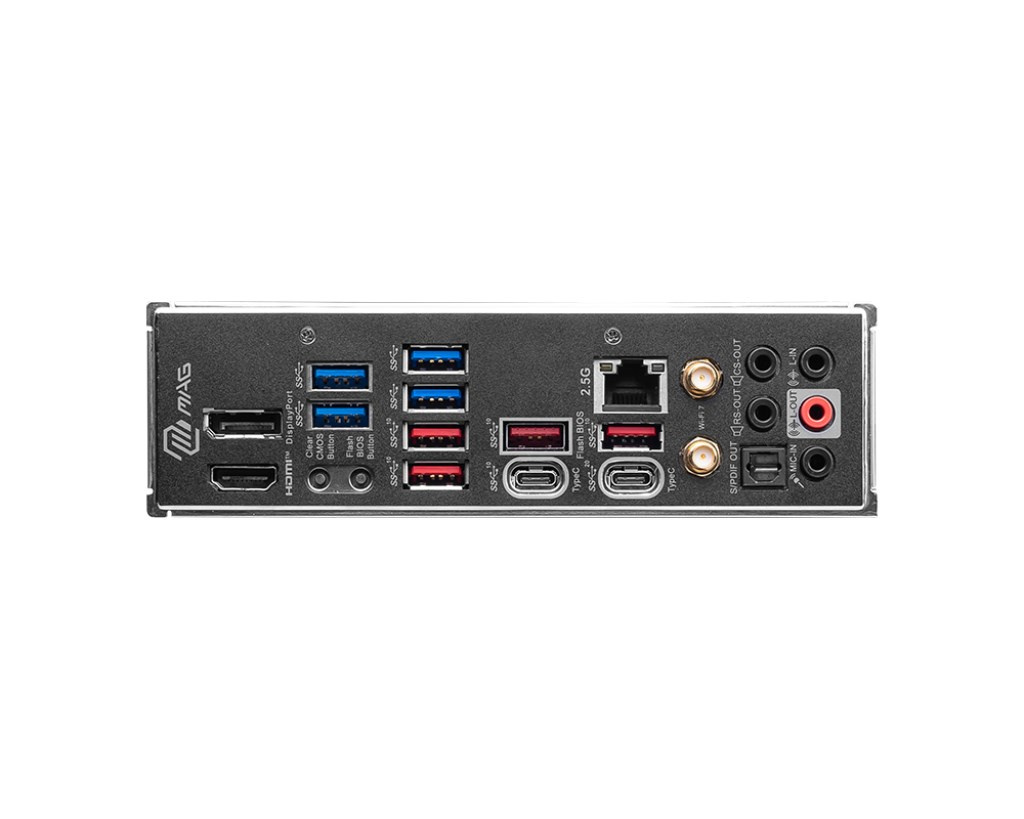

BACK PANEL PORTS
1x Display Port
4x USB 3.2 Gen 1 5 Gbps (Type-A)
1x USB 3.2 Gen 2 10Gbps (Type-A)
1x 2.5G LAN
2x Wi-Fi / Bluetooth
5x Audio Connectors
1x HDMI™
1x Clear CMOS
1x Flash BIOS
2x USB 3.2 Gen 2 10Gbps (Type-A)
1x USB 3.2 Gen 2 10Gbps (Type-C)
1x USB 3.2 Gen 2x2 20Gbps (Type-C)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX
243.84 x 304.8 mm
Co je v krabici
2x SATA Cables
EZ M.2 Clips
USB Drive
Cable sticker
Wi-Fi Antenna
Front Panel Connector
Quick Installation Guide
