Cisco switch CBS110-8PP-D (8xGbE, 4xPoE+, 32W, fanless)
Popis
Parametre
Strážny pes

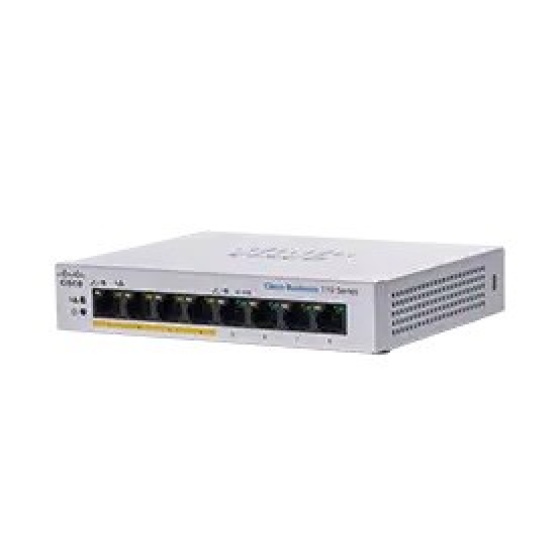

Cisco switch CBS110-8PP-D
Switche Cisco Business řady 110 jsou cenově dostupné základní switche typu plug-and-play, které poskytují přepínání gigabitového Ethernetu s klíčovými funkcemi, jako je napájení přes Ethernet (PoE), energetická účinnost a prioritizace provozu pro rychlou a spolehlivou síť malých firem.
Stránky produktu: CBS110-8PP-D Quick start guide: Quick start guide| Switching capacity and forwarding rate | |
| Capacity in millions of packets per second (mpps) (64-byte packets) | 11,9 mpps |
| Switching capacity in gigabits per second (Gbps) | 16 Gbps |
| General | |
| Head-of-Line (HOL) blocking | HOL blocking prevention |
| MAC table | 8K addresses |
| Jumbo frame | 9216 bytes |
| Quality of Service (QoS) | 802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection | Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics | Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface | Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Standards | IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet |
| Hardware | |
| Total system ports | 8 Gigabit Ethernet |
| RJ-45 ports | 8 Gigabit Ethernet |
| Combo ports (RJ-45 + Small Form-factor Pluggable [SFP]) | 0 |
| Power dedicated to PoE | 32W |
| Number of ports that support PoE | 4 |
| LEDs | Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE*, Max PoE* - *if present |
| Cabling type | Category 5e or better |
| Mounting options | Desktop |
| Physical security lock | Kensington lock slot |
| Packet Buffer | 2 Mbit |
| Environmental | |
| Unit dimensions (W x D x H) | 160 x 129 x 30 mm (6.30 x 5.06 x 1.18 in) |
| Unit weight | 0.55 kg (1.2 lb) |
| Power | 100 to 240V, 50 to 60 Hz, external, universal |
| Power consumption (worst case) | |
| System power consumption | 110V=5.1W 220V=5.29W |
| Power consumption (with PoE) | 110V=38.02W 220V=38.2W |
| Heat dissipation (BTU/hr) | 130,34 |
| Green (power efficiency) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications | UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B* *select models |
| Operating temperature | 32° to 104°F (0° to 40°C) |
| Storage temperature | –4° to 158°F (–20° to 70°C) |
| Operating humidity | 10% to 90%, relative, noncondensing |
| Storage humidity | 5% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failures (MTBF) | |
| Fan (number) | Fanless |
| Acoustic noise | N/A |
| MTBF at 25°C (hours) | 465,437 |
| Warranty | Limited lifetime |
| Package contents | Cisco Business 110 Series switch Power cord or adapter Quick start guide |
| Minimum requirements | Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet Cat5e or better Ethernet cable Network interface card for each computer |
Maximální počet portů:
8
Provedení:
Desktop
Technologie:
Gigabit Ethernet 1000Mbps
Management:
Ne
Vlastnosti switche:
Funkce POE po portech
PoE budget (W):
32
Přenosová rychlost LAN (Mb/s):
1000
Funkce:
QoS (Quality of service)
Funkce:
PoE (Power over ethernet)
Podporované standardy PoE:
802.3af
Počet portů LAN:
8
Ventilátor:
Ne
Počet PoE+ portů:
4
Počet portů LAN:
8
Maximální počet portů:
8
PoE budget (W):
32
Počet PoE+ portů:
4
Aktuálna cena produktu je132.10EUR
s dph
