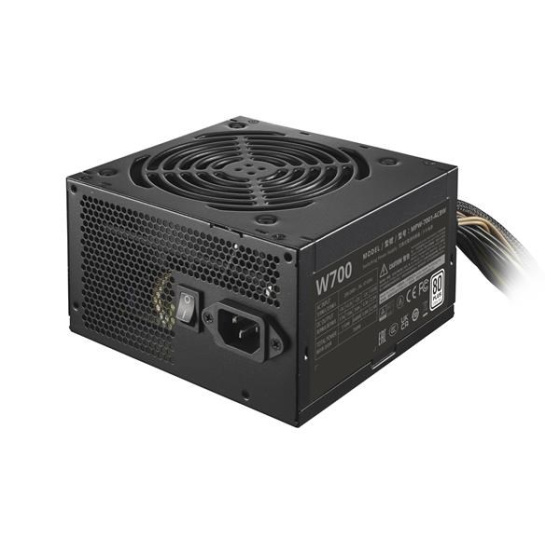

Cooler Master zdroj Elite NEX W700 230V A/EU Cable, 700W
Popis
Parametre
Strážny pes
ELITE NEX 230V
The Elite NEX White power supply unit is a dependable choice for entry level users and system integrators. The quiet 120mm fan, Active PFC, and 3 years warranty deliver a PSU that provides function you can count on. This power supply unit has been engineered for reliability. The Elite NEX is a complete solution, offering performance and stability at an affordable price.
- Active PFC + Dual Forward Topology Design : Constructed with protective measures normally found in high-end power supplies to increase safety and current stability.
- High Temperature Resistance : Capable of operating at 40°C under full load allowing a longer lifespan in warmer environments.
- Peak Power Tolerance : Can reliably push an additional 100W at peak power load for up to 20 seconds.
- 80 PLUS White EU 230V Efficiency : Maintains a higher efficiency of 85% at typical load.
- Durable, Reliable, and Safe : Will perform consistently in whatever environment whether it's high altitudes or ultra humid settings.
- 3 Year Warranty : This unit comes with a standard limited manufacturing warranty of 3 years from the date of purchase.
TECHNICAL SPECIFICATIONS
ATX Version | ATX12V Rev. 2.41 |
PFC | Active PFC |
Input Voltage | 200 - 240V |
Input Current | 5A |
Input Frequency | 50 - 60Hz |
Dimension (L x W x H) | 140 x 150 x 86mm |
Fan Size | 120mm |
Fan Bearing | Sleeve Fan |
Efficiency | >= 85% @ Typical Load |
ERP 2014 LOT 3 | Yes |
Operating Temperature | 0 - 40°C |
Power Good Signal | 100 - 500 ms |
Hold Up Time | >= 10ms at 100% Load |
MTBF | >100,000 hours |
Protections | OVP / OPP / SCP / UVP / OTP / Inrush Protection |
Regulatory | TUV,cTUVus,CE,FCC,CCC,EAC,UKCA |
ATX 24-pin Connnectors | x1 = 1x (550mm) |
EPS 4+4 Pin & EPS 8Pin | x2 = 1x [550(8Pin)+120(4+4Pin)mm] |
SATA Connectors | x2 = 1x (400+150mm); x3 = 1x (400+150+150mm) |
Peripheral 4-pin Connectors | x3 = 1x (400+150+150mm) |
PCI-E 6+2 pin Connectors | x2 = 1x (500+120mm) |
.
Formát zdroje:
ATX
Konektory:
SATA 15-pin
Konektory:
PCIe 8-pin
Konektory pro základní desku:
ATX 24-pin
Konektory pro základní desku:
EPS 8-pin
Výkon zdroje (W):
700
Aktuálna cena produktu je62.70EUR
s dph
