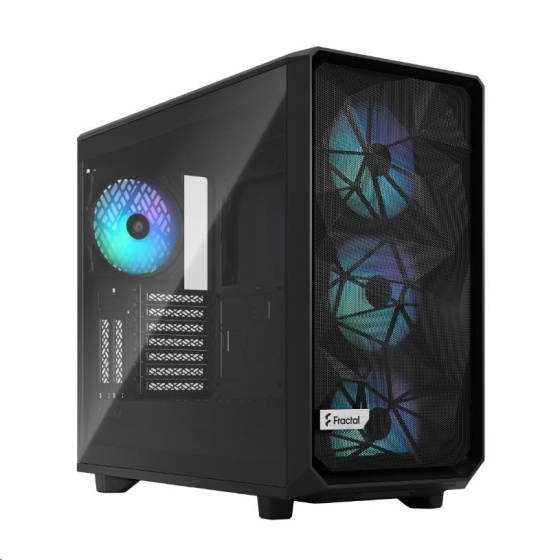

The Meshify 2 RGB is a high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a front with USB-C, hinged mesh panel and removable nylon filter. The flexible dual-layout interior supports large storage arrays and multi-radiator setups that makes cooling a breeze.
TECHNICAL SPECIFICATIONS
| 3.5"/2.5" drive mounts | 6 included, 14 positions total + 3 Multibrackets |
| Dedicated 2.5" drive mounts | 2 included, 4 positions total |
| Expansion slots | 7 + 2 |
| Front interface | 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, Audio I/O, Power button, RGB control button |
| Total fan mounts | 9x 120/140 mm |
| Front fan | 3x 120/140 mm (3x Aspect 14 RGB PWM included) |
| Top fan | 3x 120/140 mm |
| Rear fan | 1x 120/140 mm (1x Aspect 14 RGB PWM included) |
| Bottom fan | 2x 120/140 mm |
| Dust filters | Top, front and bottom |
| Cable routing grommets | Yes |
| Fixed velco straps | Yes |
| Captive thumbscrews | HDD, SSD and PSU brackets |
| Left side panel | Tempered glass |
| Right side panel | Steel |
| Compatibility | |
| Motherboard compatibility | E-ATX (max 285 mm)/ ATX / mATX / Mini-ITX |
| Power supply type | ATX |
| Front radiator | Up to 360/280 mm |
| Top radiator | Up to 360/280 mm |
| Rear radiator | 120 mm |
| Bottom radiator | 240 mm |
| PSU max length | 250 mm (with HDD cage installed) |
| GPU max length | Open layout: 450 mm Storage layout: 298 mm |
| Cable routing space | 30 mm |
| CPU cooler max height | 185 mm |
| Dimensions | |
| Case dimensions (L x W x H) | 542 x 240 x 474 mm |
| Case dimensions w/o feet/protrusions/screws | 541 x 240 x 454 mm |
| Net weight | 11.1 kg |
| Package dimensions (L x W x H) | 540 x 330 x 640 mm |
| Gross weight | 12.7 kg |
| Volume | 58.95 liters |
.
