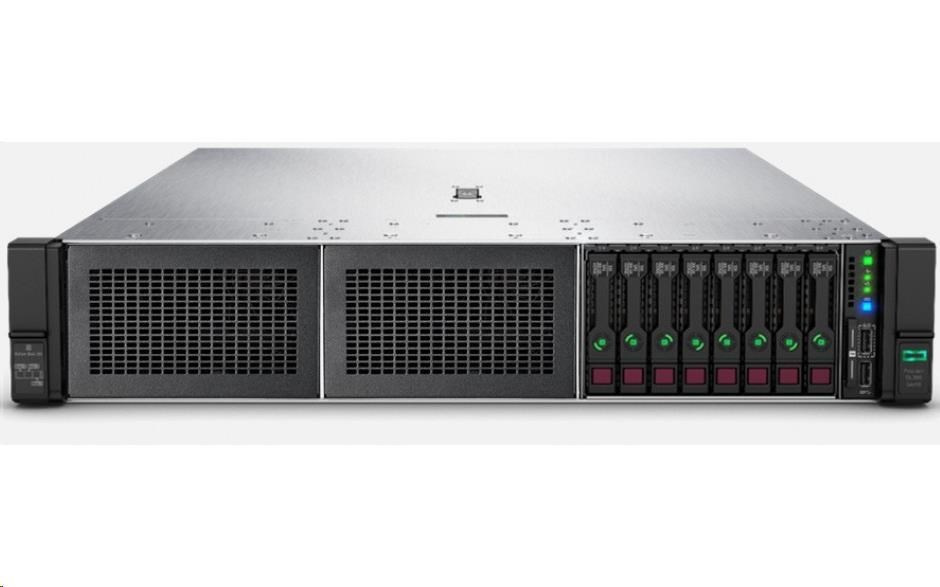

HPE PL DL380g10 6226R (2.9G/16C) 1x32G S100i 8SFF 1x800Wp 2x10G 562FLRSFP+ NBD333 EIRCMA 2U P24846-B21 RENEW

SKU Number

P24845-B21/ P40422-B21

P24846-B21 / P40423-B21

P24847-B21/ P40424-B21

Model Name

HPE ProLiant DL380 Gen10 5222 3.8GHz 4-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 6226R 2.9GHz 16-core 1P 32GB-R S100i NC 8SFF 800W PS Server

HPE ProLiant DL380 Gen10 6234 3.3GHz 8-core 1P 32GB-R S100i NC 8SFF 800W PS Server

Chassis

8SFF NC Chassis (P19720-B21)

Processor

5222 (3.8GHz, 4 core, 105W)

6226R (2.9GHz, 16 core, 150W)

6234 (3.3GHz, 8 core, 130W)

Number of Processors

One with performance heatsink

One with performance heatsink

One with performance heatsink

Memory

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB; P00924-B21)

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB; P00924-B21)

32 GB RDIMM 2R 2933 MT/s

(1x 32 GB; P00924-B21)

Network Controller

P24845-B21 P24846-B21 , P24847-B21

HPE Ethernet 10Gb 2-port FLR-SFP+ X710-DA2 Adapter (727054-B21) plus optional stand-up card

Notes: No embedded networking

P40422-B21, P40423-B21, P40424-B21

HPE Ethernet 10Gb 2-port FLR-SFP+ BCM57414 Adapter (P08440-B21) plus optional stand-up card

Notes: No embedded networking

Storage Controller

S100i embedded SW RAID with 14 SATA ports (12-ports accessible) HPE Smart Array S100i SR Gen10 SW RAID Notes:­ HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional controller will be needed. HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled.­ The S100i uses 14 embedded SATA ports, but only 12 ports are accessible as 2 are leveraged to support the 2 M.2 options on the primary riser. If more than 8 SATA devices are being supported on this controller, then a Qty=1 of the SAS 3POS Cable Kit (826709-B21) is required.­ The S100i supports Windows only.­ For Linux users, HPE offers a solution that uses in-distro open-source software to create a two-disk RAID 1 boot volume. For more information visit: https://downloads.linux.hpe.com/SDR/project/lsrrb/

Hard Drive

None ship as standard

Internal Storage

8 SFF (upgradeable to 24 SFF front + 6SFF rear)

PCIe Slots

3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration

Power Supply

1x HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit (865414-B21)

Fans

4-standard fans

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition and HPE OneView Advanced (require licenses)

Rail Kit

SFF Easy install rail kit (73360-B21) with Cable Management Arm (733664-B21)

Energy Star

3.0 Certified

Form Factor

2U Rack

Warranty

3-year parts, 3-year labor, 3-year onsite support with next business day response.

Serial

Optional, rear

Display Port

1 (SFF 1 front, optional via Universal Media Bay, 826708-B21), 8 LFF chassis standard

Network Ports

4 x 1GbE embedded (if equipped/depending on model)

One (1) FlexibleLOM slot available on all chassis types (supporting various NIC adapters)

HPE iLO Remote Management Network Port

1 Gb Dedicated

Front iLO Service Port

1 standard (Not available on 12 LFF chassis or when SID is ordered, note iLO dongle required, 880123-B21)

Micro SD Slot

1 Micro SD

Notes: The Micro SD slot is not a hot-pluggable device. Customers should not attempt to plug an SD card into the SD slot while the server is powered.

USB 3.0

Up to 5 total: 1 front, 2 rear, 2 internal (secure), 2 optional USB 2.0 front via Universal Media Bay, or standard on 8LFF chassis

SID

(Systems Insight Display)

Optional

Notes: Not shipping as standard. Available as a CTO option or as a field upgrade (826703-B21).
