HPE PL ML110g11 4510 (2.4/12C) 1x32G (p64706) 2x4TB (861683) 2x1000W 2x1G 4LFF VROC NBD333 Smart Choice

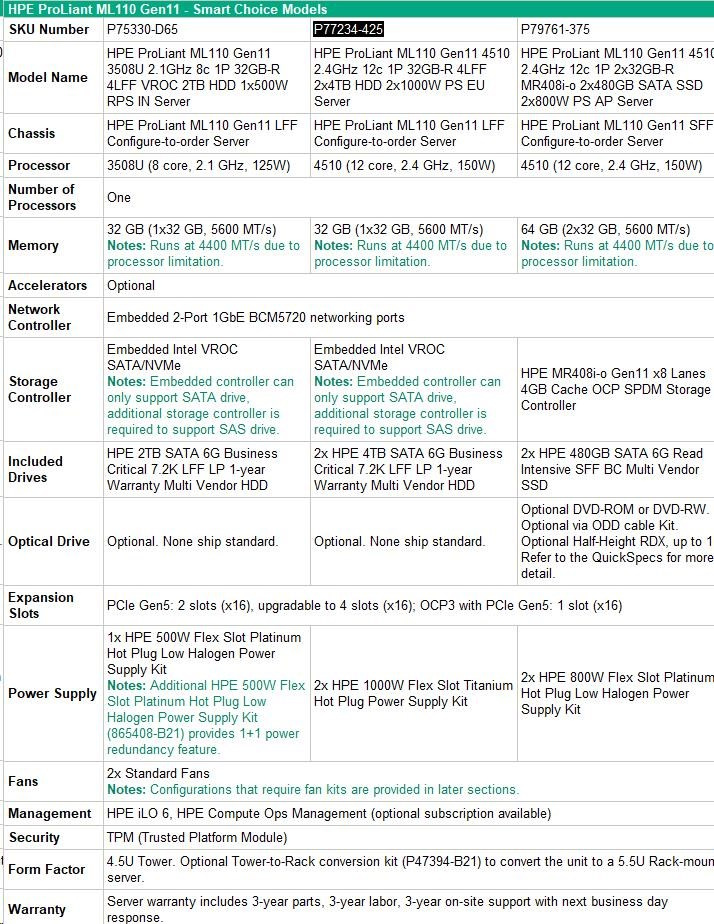

HPE ProLiant ML110 Gen11 - Smart Choice Models

SKU Number

P77234-425

Model Name

HPE ProLiant ML110 Gen11 4510 2.4GHz 12c 1P 32GB-R 4LFF 2x4TB HDD 2x1000W PS EU Server

Chassis

HPE ProLiant ML110 Gen11 LFF Configure-to-order Server

Processor

4510 (12 core, 2.4 GHz, 150W)

Number of Processors

One

Memory

32 GB (1x32 GB, 5600 MT/s) Notes: Runs at 4400 MT/s due to processor limitation.

Network Controller

Embedded 2-Port 1GbE BCM5720 networking ports

Storage Controller

Embedded Intel VROC SATA/NVMe Notes: Embedded controller can only support SATA drive, additional storage controller is required to support SAS drive.

Included Hard Drives

2x 4TB SATA HDD

Optical Drive

Optional DVD-ROM or DVD-RW. Optional via ODD cable Kit. Optional Half-Height RDX, up to 1. Refer to the QuickSpecs for more detail.

Expansion Slots

PCIe Gen5: 2 slots (x16), upgradable to 4 slots (x16); OCP3 with PCIe Gen5: 1 slot (x16)

Power Supply

2x HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit

Fans

Default with 2 standard fans, non-hot-plug. Optional Redundant Fan Kit (P49984-B21) provides advanced cooling in heavier configurations and redundancy functionality. Notes: Configurations that require fan kits are provided in later sections.

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download); HPE iLO Advanced and HPE OneView Advanced (require licenses)

Security

TPM (Trusted Platform Module)
