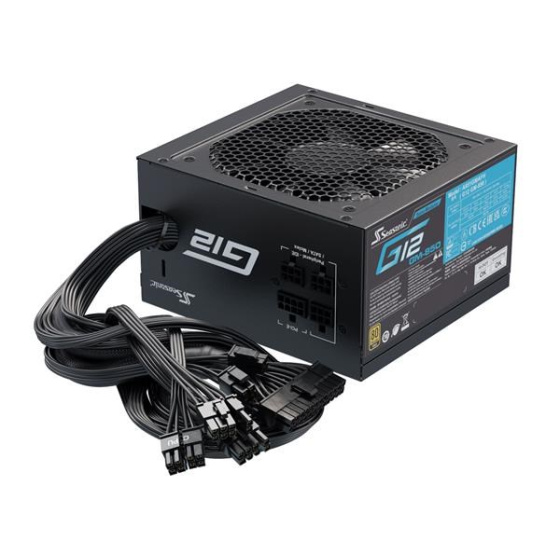

SEASONIC zdroj 850W G12 GM-850, 80+ GOLD
Popis
Parametre
Strážny pes
G12 GM-850
The G12 GM Series is available in the standard ATX Form Factor and in wattages that are most common for a PC system. The Seasonic G12 GM-Series achieves 80 PLUS® Gold standard of providing at least 87 %, 90 % and 87 % power usage efficiency at 20 %, 50 % and 100 % operating loads, respectively. This efficiency, combined with Active Power Factor Correction, enables the G12 GM series power supplies to lessen energy waste, which translates into savings on the costs of energy costs for its users. In addition to being greatly efficient, the G12 GM units utilize the LLC resonant converter design, and the industry’s leading Smart and Silent Fan Control (S2FC).
TECHNICAL SPECIFICATIONS
| 80PLUS® | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | Intel ATX 12 V |
| Dimensions (L x W x H) | 140 x 150 x 86 mm |
| Fan Size | 120 mm |
| Fan Control | Smart and Silent Fan Control |
| Fan Bearing | Sleeve Bearing |
| Life Expectancy | 25,000 hours at 40 °C, 15 % - 65 % RH |
| Modularity | Fixed cables |
| Cable type | Flat black cables |
| Operating Temperature | 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C) |
| MTBF @ 25 °C, excl. fan | 100,000 hours |
| AC Input | Full Range |
| Protection | OPP, OVP, OCP, SCP |
| Safety and EMC | cTUVus, TUV, CB, CCC, BSMI, CE, FCC |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Warranty | 5 Years |
| AC Input | Voltage: 100 V - 240 V Current: 10 A Max. Frequency: 50 Hz - 60 Hz |
.
Formát zdroje:
ATX
Konektory:
PCIe 8-pin
Konektory:
Molex
Konektory:
SATA 15-pin
Konektory pro základní desku:
ATX 24-pin
Efektivita zdroje:
80 Plus Gold
Výkon zdroje (W):
850
Aktuálna cena produktu je104.40EUR
s dph
