20 x Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch

doprava zadarmo
Pridať do obľúbených20 x Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
Prevedenie:Rack mounted 19"; Technológia:Gigabit Ethernet + 10 GbE porty; Maximálny počet portov:24; Vlastnosti switche:Funkcia POE na portoch.

Kód produktu1881086
Part numberJL683B#ABB//20pack

Záruka:99 Doživotní
Výrobca:Hewlett Packard Enterprise
Skladová dostupnosť:Skladom
Bežná cena
8075 EUR
Vaša cena bez DPH
5611.57 EUR
Vaša cena vrátane DPH
6790 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

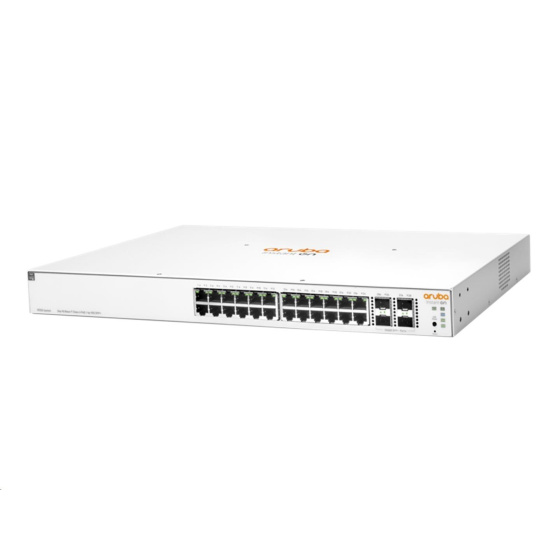

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch (JL683B)

I/O Ports and Slots

24 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 SFP+ 1/10GbE ports

Physical Characteristics

Dimensions

17.42(w) x 10.42(d) x 1.73(h) in (44.25 x 26.47 x 4.39 cm)(1U height)

Weight

7.69lb (3.49kg)

Processor and Memory

ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

Packet Buffer

1.5 MB

Performance

100 Mb latency

< 4.7 uSec

1000 Mb latency

<2.4 uSec

10000 Mb latency

<1.3 uSec

Throughput (Mpps)

95.23 Mpps

Capacity

128 Gbps

Routing table size (# of static entries)

32

MAC address table size (# of entries)

16,000

Reliability MTBF (years)

76

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C)

Non-operating temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating relative humidity

15% to 95% @ 140°F (60°C)

Altitude

Up to 10,000ft (3.048 Km)

Acoustic1

LWAd = 3.9 Bel

LpAm (Bystander) = 25 dB

Notes: 1Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)

Electrical Characteristics

Frequency

50-60 Hz

AC voltage

100 - 127 / 200 - 240 VAC

Current

2.8 A/1.4 A

Maximum power rating

248.7W

Idle power

19.7W

PoE power

195 W Class 4 PoE

Power supply

Internal power supply

Safety

UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1

UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014

Emissions

VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A

Immunity

Generic

CISPR 24 / CISPR 35

EN

EN 55024:2010 / EN 55035:2017

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

IEC 61000-4-11

Harmonics

IEC 61000-3-2, EN 61000-3-2

Flicker

IEC 61000-3-3, EN 61000-3-3

Device Management

Aruba Instant On Cloud; Web browser; SNMP Manager

Mounting

Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. 2-post rack kit included

Supports table-top mounting

Supports rackmounting

Supports wall-mounting with ports facing either up or down

Supports under-table mounting using the brackets provided

Transceivers

Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A)

Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D)

Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)

Aruba Instant On 10G SFP+ LC SR 300m OM3 MMF Transceiver (R9D18A)

Aruba 10G SFP+ LC LR 10km SMF Transceiver (J9151E)

Aruba Instant On 10G SFP+ to SFP+ 1m DAC (R9D19A)

Aruba Instant On 10G SFP+ to SFP+ 3m DAC (R9D20A)

.
Maximální počet portů: 24
Provedení: Rack mounted 19"
Technologie: Gigabit Ethernet + 10 GbE porty
Vlastnosti switche: Funkce POE po portech
PoE budget (W): 195
Přenosová rychlost LAN (Mb/s): 95
Funkce: L2
Funkce: VLAN (virtual local area network)
Funkce: PoE (Power over ethernet)
Počet SFP portů: 4
Počet PoE Out portů: 24
Počet portů Combo: 0
Počet SFP+ portů: 4
Podporované standardy PoE: 802.3at
Podporované standardy PoE: 802.3af
Počet portů QSFP+: 0
Počet portů LAN: 24
Ventilátor: Ano
Počet portů SFP28: 0
Počet portů QSFP28: 0
Počet portů LAN: 24
Maximální počet portů: 24
Počet PoE Out portů: 24
Počet portů Combo: 0
Počet SFP portů: 4
Počet portů QSFP+: 0
Počet SFP+ portů: 4
PoE budget (W): 195
Počet portů QSFP28: 0
Počet portů SFP28: 0
