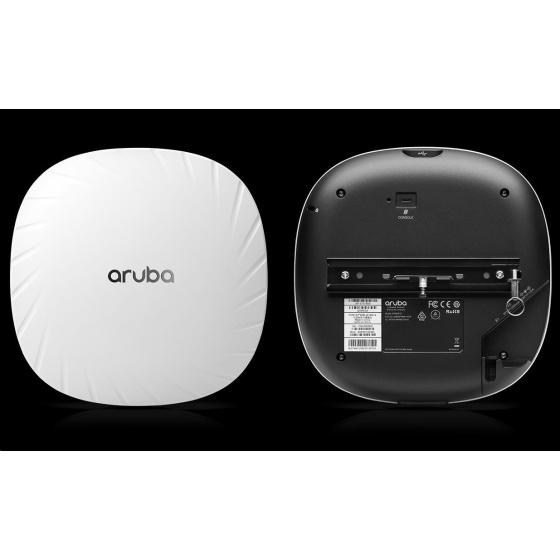

Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A

Kód: 703416
Skladom
Termín a spôsob doručenia
Typ Wi-Fi aktívneho prvku:Acces Pointy, Bridge; Komunikačné pásmo:2,4 + 5 (Dual Band); Podporované štandardy:802.11ax.prečítajte si viac
Vyberte si zvýhodnené balenie
Množstevné zľavy
354.20 EUR
292.73 EUR bez DPH
Bežná cena: 416.2 EUR (-15%)
ks
envelope
Váš dotaz
bell
Sledovat
Parametre
Kód:
703416
EAN:
703416
Záruka:
99 Doživotní
Stav:
Frekvenční pásmo (GHz):
2,4 + 5 (Dual Band)
Typ aktivního prvku:
AP (Access Point)
Připojení externí antény:
Ne
Podporované standardy:
802.11ax
USB port:
Ano
Další vlastnosti:
Podpora 5G, Podpora 4G/LTE, Podpora 3G, Podpora Wi-Fi Mesh, Firewall, PoE (Power over ethernet), VLAN
Počet portů LAN:
1
Použití:
Vnitřní
Zabezpečení:
WPA-Enterprise, WPA2-Enterprise, WPA3
Typ antény:
Integrovaná
Typy PoE:
PoE - In
Počet WAN portů:
1
Počet portů LAN:
1
Počet WAN portů:
1
Popis Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A

Aruba AP-515 (RW) Dual Radio 4x4:4 + 2x2:2 802.11ax Internal Antennas Unified Campus AP RENEW Q9H62A

Série přístupových bodů Aruba 510 s technologií 802.11ax vysokorychlostní přístup pro mobilní zařízení. Rychlosti dosahují až 4.8 Gb/s v pásmu 5GHz a až 575 Mb/s v pásmu 2,4Ghz. Každý AP podporuje až 256 klientských zařízení.

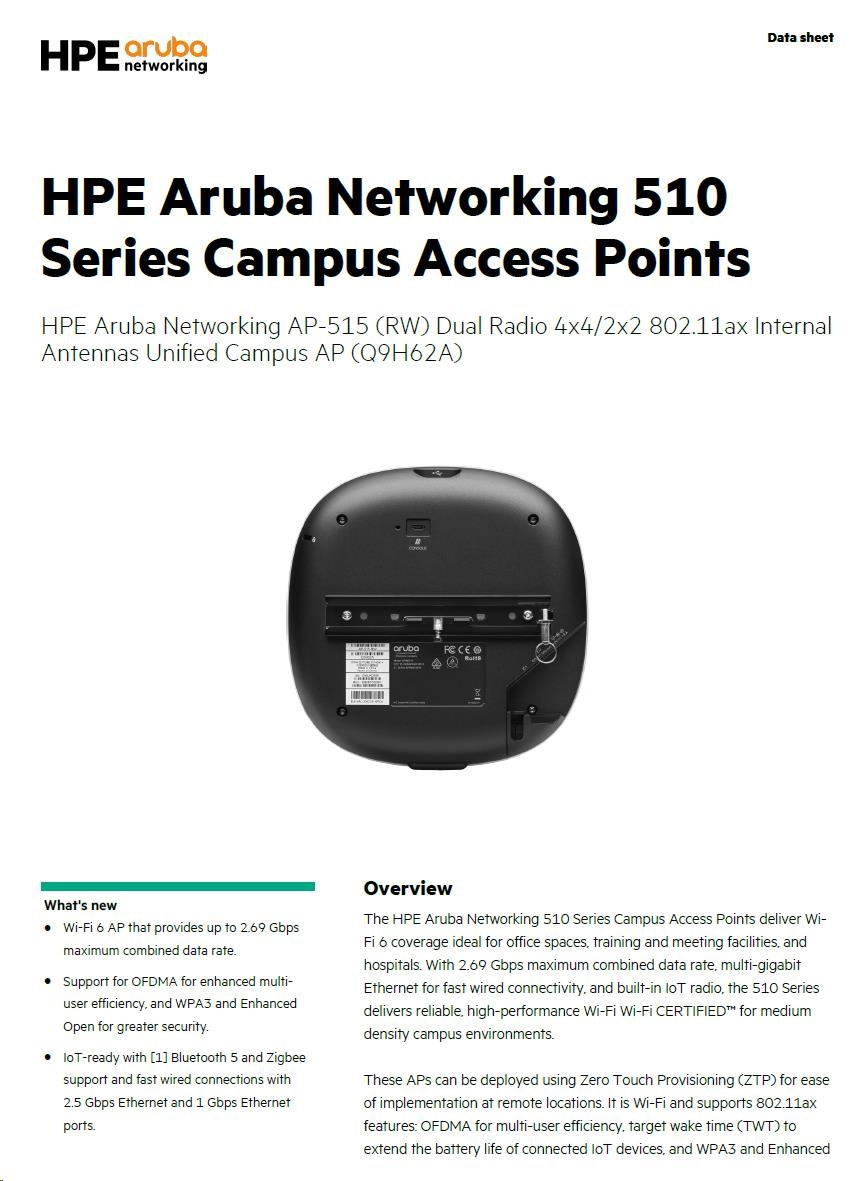

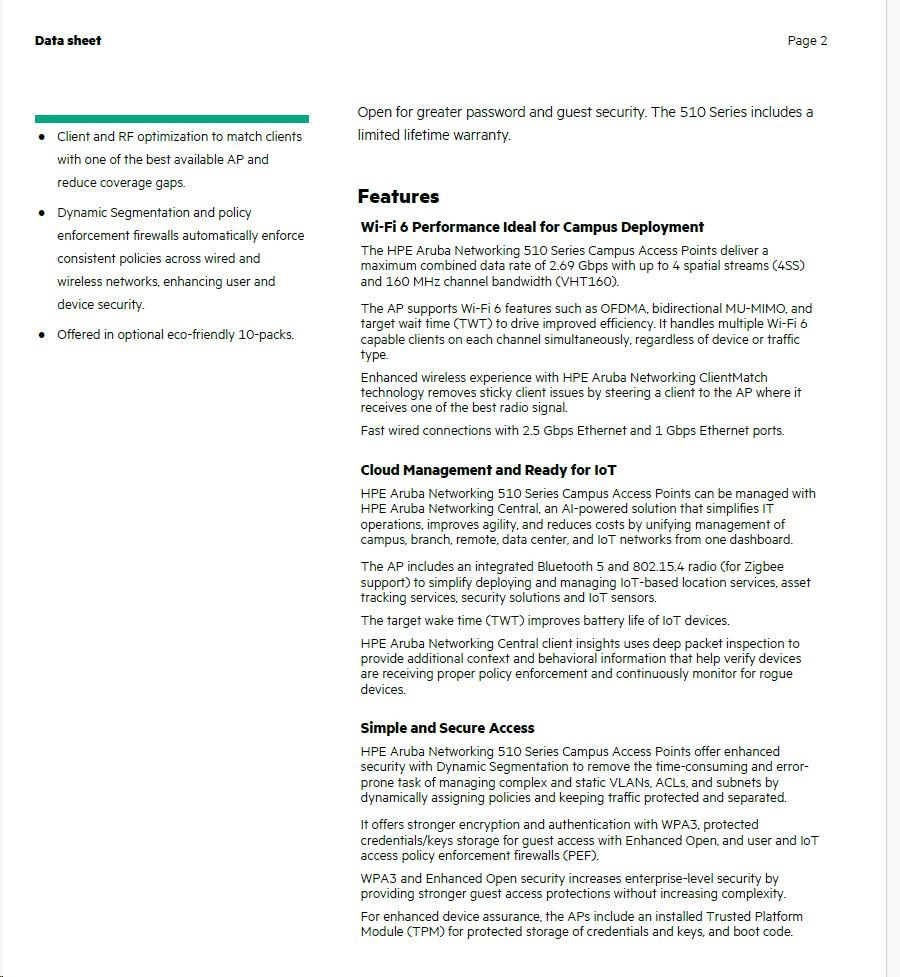

Odkaz na web výrobce: https://www.arubanetworks.com/assets/ds/DS_AP510Series.pdf

SPECIFIKACE

Rozhraní

  • E0: HPE SmartRate port (RJ-45, maximum negotiated speed 2.5Gbps)
  • E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)
  • DC power interface: 12Vdc (nominal, +/- 5%), accepts 2.1mm/5.5mm center-positive circular plug with 9.5mm length
  • USB 2.0 host interface (Type A connector)
  • Bluetooth 5 and Zigbee (802.15.4) radio
  • Integrated vertically polarized omnidirectional antenna with roughly 30 degrees downtilt and peak gain of 3.5dBi (AP-515) or 4.9dBi (AP-514)
  • Visual indictors (two multi-color LEDs): for System and Radio status
  • Reset button: factory reset, LED mode control (normal/off)

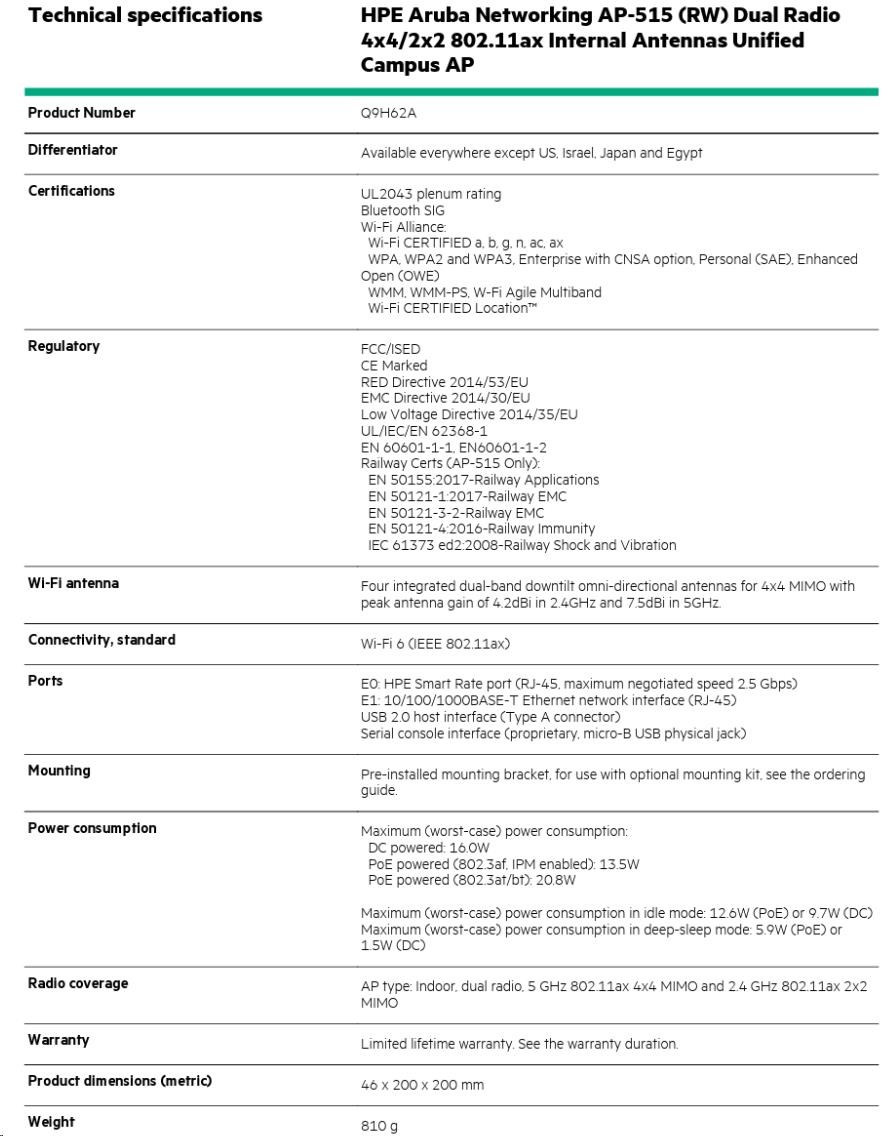

    HPE Aruba Networking AP-515 Specifications

HPE Aruba Networking AP-515 (RW) Dual Radio 4x4/2x2 802.11ax Internal Antennas

Product Number: Q9H62A

Certifications


    • UL2043 plenum rating

    • Bluetooth SIG

    • Wi-Fi Alliance: Wi-Fi CERTIFIED a, b, g, n, ac, ax, WPA/WPA2/WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE), WMM, WMM-PS, Wi-Fi Agile Multiband, Wi-Fi CERTIFIED Location™

    • Regulatory: FCC/ISED, CE Marked, RED Directive 2014/53/EU, EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU, UL/IEC/EN 62368-1, EN 60601-1-1, EN60601-1-2

    • Railway Certs (AP-515 Only): EN 50155:2017, EN 50121-1:2017, EN 50121-3-2, EN 50121-4:2016, IEC 61373 ed2:2008


Wi-Fi Antenna

Four integrated dual-band downtilt omni-directional antennas for 4x4 MIMO (2.4GHz: 4.2dBi, 5GHz: 7.5dBi)

Connectivity


    • Standard: Wi-Fi 6 (IEEE 802.11ax)

    • Ports:
        • E0: HPE Smart Rate port (RJ-45, max 2.5 Gbps)

        • E1: 10/100/1000BASE-T Ethernet network interface (RJ-45)

        • USB 2.0 host interface (Type A connector)

        • Serial console interface (micro-B USB)


Mounting

Pre-installed bracket, optional mounting kit available. See ordering guide.

Power Consumption


    • Max (worst-case): DC powered: 16.0W, PoE powered (802.3af): 13.5W, PoE powered (802.3at/bt): 20.8W

    • Idle mode: 12.6W (PoE), 9.7W (DC)

    • Deep-sleep mode: 5.9W (PoE), 1.5W (DC)


Additional Specifications


    • Radio coverage: Indoor, dual radio, 5GHz 802.11ax 4x4 MIMO, 2.4GHz 802.11ax 2x2 MIMO

    • Warranty: Limited lifetime warranty. See warranty duration.

    • Dimensions (mm): 46 x 200 x 200

    • Weight: 810 g


.
