Aruba Instant On 1430 16G Class4 PoE 124W Switch

doprava zadarmo
Pridať do obľúbenýchAruba Instant On 1430 16G Class4 PoE 124W Switch
Prevedenie:Desktop, Rack mounted 19"; Technológia:Gigabit Ethernet 1000Mbps; Maximálny počet portov:16.

Kód produktu1881017
Part numberR8R48A

Záruka:99 Doživotní
Výrobca:Hewlett Packard Enterprise
Skladová dostupnosť:Na dotaz
Bežná cena
439 EUR
Vaša cena bez DPH
272.50 EUR
Vaša cena vrátane DPH
327 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

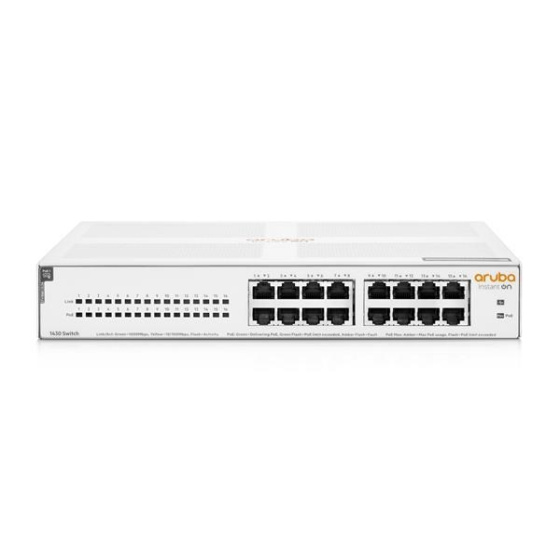

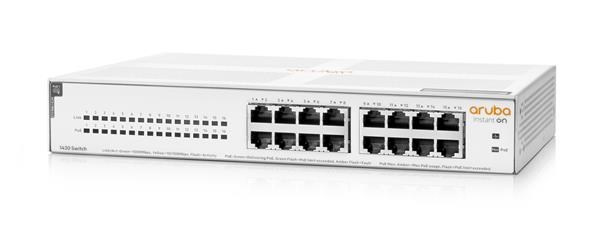

Aruba Instant On 1430 16G Class4 PoE 124W Switch (R8R48A)

I/O ports and slots

16 RJ-45 autosensing 10/100/1000 Class 4 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Dimensions

260(d) x 275(w) x 44(h) mm

Weight

4.60 lb (2.09 kg)

Processor and Memory

128Kb EEPROM; Packet buffer size: 2.0 Mb

100 Mb latency

< 2.7 µSec

1000 Mb latency

< 1.80 µSec

Throughput (Mpps)

23.80 Mpps

Capacity

32 Gbps

MAC address table size

8192 entries

Reliability MTBF (years)

126.1

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

15% to 95% @ 104°F (40°C) non-condensing

Nonoperating/ storage temperature

-40°F to 158°F (-40°C to 70°C) up to 15000 ft

Nonoperating/ storage relative humidity

15% to 90% @ 149°F (65°C) non-condensing

Altitude

up to 10,000 ft (3 km)

Acoustics

Fanless

Frequency

50Hz/60Hz

AC voltage

100-127VAC / 200- 240VAC

Current

1.7A /0.8A

Maximum power rating

147W

Idle power

5W

PoE power

124W Class 4 PoE

Power Supply

Internal Power Supply

Safety

  • EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013
  • EN/IEC 62368-1, 2nd. & 3rd. Ed.
  • UL 62368-1, 3rd. Ed.
  • CAN/CSA C22.2 No. 62368-1, 3rd. Ed.
  • EN/IEC 60825- 1:2014 Class 1

Emissions

  • EN 55032:2015/ CISPR 32, Class A
  • FCC CFR 47 Part 15: 2018, Class A
  • ICES-003, Class A
  • VCCI-32, Class A
  • CNS 13438, Class A
  • KS C 9832, Class A
  • AS/NZS CISPR 32, Class A

Immunity

BS/EN 55035, CISPR 35, KS C 9835

Generic

EN 55035, CISPR 35

EN

EN/IEC 61000-4-2

ESD

EN/IEC 61000-4-3

Radiated

EN/IEC 61000-4-4

EFT/Burst

EN/IEC 61000-4-5

Surge

EN/IEC 61000-4-6

Conducted

EN/IEC 61000-4-8

Power frequency magnetic field

EN/IEC 61000-4-11

Voltage dips and interruptions

EN/IEC 61000-3-2

Harmonics

EN /IEC 61000-3-3

Device Management

Unmanaged

Mounting

Mounting positions and supported racking

  • Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included
  • Supports table-top mounting
  • Supports rack-mounting using the brackets provided
  • Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided
  • Supports under-table mounting using the brackets provided
  • Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down

.
Maximálny počet portov: 16
Prevedenie: Desktop
Prevedenie: Rack mounted 19"
Technológia: Gigabit Ethernet 1000Mbps
Management: Nie
PoE budget (W): 125
Přenosová rychlost LAN (Mb/s): 24
Funkce: QoS (Quality of service)
Funkce: L2
Funkce: PoE (Power over ethernet)
Počet SFP portů: 0
Počet PoE Out portů: 16
Počet portů Combo: 0
Počet SFP+ portů: 0
Podporované standardy PoE: 802.3af
Počet portů LAN: 16
Ventilátor: Ne
Počet portů SFP28: 0
