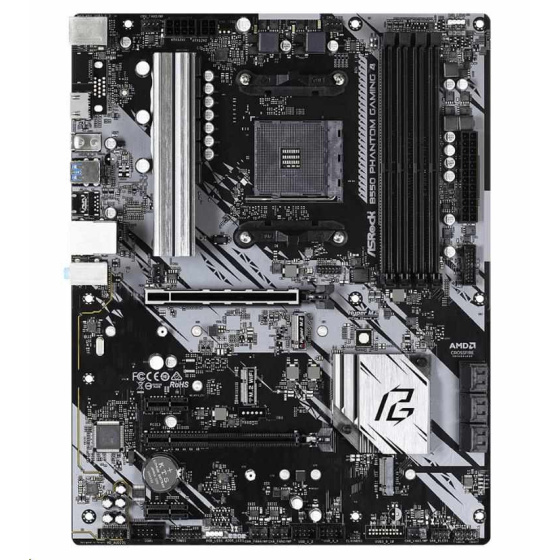

ASRock MB Sc AM4 B550 Phantom Gaming 4, AMD B550, 4xDDR4, HDMI

Pridať do obľúbenýchASRock MB Sc AM4 B550 Phantom Gaming 4, AMD B550, 4xDDR4, HDMI
Socket (pätica):Socket AM4; Formát:ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Typ pamäťového modulu:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Podpora RAID:1, 10; Rozhranie:HDMI, USB 2.0, USB 3.2, 3.5mm Jack, LAN, DisplayPort.

Kód produktu380565
Part numberB550 PHANTOM GAMING 4
EAN produktu4710483931499

Záruka:24 Měsíc(ů)
Výrobca:ASRock
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
131 EUR
Vaša cena bez DPH
89.17 EUR
Vaša cena vrátane DPH
107 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

B550 Phantom Gaming 4



  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors

  • 8 Power Phase Design, Digi Power

  • Supports DDR4 4733+ (OC)

  • 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi

  • Graphics Output Options: HDMI

  • AMD CrossFireX™

  • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio

  • 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)

  • 8 USB 3.2 Gen1 (2 Front, 6 Rear)

  • Gigabit LAN




TECHNICAL SPECIFICATIONS













































Gaming Armor

Memory
- 15µ Gold Contact in DIMM Slots
Cooling
- XXL Aluminum Alloy Heatsink
Audio
- Nahimic Audio


Unique Feature ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
- 2oz Copper PCB
ASRock Steel Slot Gen4
ASRock Hyper M.2 (PCIe Gen4x4)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU

- Supports 3rd Gen AMD AM4 Ryzen™ / future AMD Ryzen™ Processors*
- Digi Power design
- 8 Power Phase design


*Not compatible with AMD Ryzen™ 5 3400G and Ryzen™ 3 3200G.


Chipset - AMD B550
Memory

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- AMD Ryzen series APUs support DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB**
- Supports Extreme Memory Profile (XMP) memory modules
- 15µ Gold Contact in DIMM Slots


*For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs.


Graphics

- Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
- DirectX 12, Pixel Shader 5.0
- Shared memory default 2GB. Max Shared memory supports up to 16GB.**
- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
- Supports HDR (High Dynamic Range) with HDMI 2.1
- Supports HDCP 2.3 with HDMI 2.1 Port
- Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
- Supports Microsoft® PlayReady


*Actual support may vary by CPU


**The Max shared memory 16GB requires 32GB system memory installed.


Slots

AMD Ryzen series CPUs (Matisse)
- 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)*
AMD Ryzen series APUs
- 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)*


- 2 x PCI Express 3.0 x1 Slots
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E) with the bundled WiFi-802.11ac module


*Supports NVMe SSD as boot disks


Storage

- 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug*


- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280/22110 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Matisse) or Gen3x4 (32 Gb/s)**
- 1 x M.2 Socket (M2_3), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)**


* M2_3 and SATA3_5_6 share lanes. If either one of them is in use, the other one will be disabled.


** Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit


LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Connector

1 x COM Port Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)


*Support in total up to 12V/3A, 36W LED Strip


**Support in total up to 5V/3A, 15W LED Strip


***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.


****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.


Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio
Rear panel I/O - 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (Phantom Gaming Tuning)
- ASRock Polychrome SYNC
- ASRock Key Master
- ASRock XFast LAN
UEFI
- ASRock Full HD UEFI
- ASRock Instant Flash


*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS - 256Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP Voltage Multi-adjustment
Accessories - Quick Installation Guide, Support CD, I/O Shield
- 2 x SATA Data Cables
- 3 x Screw for M.2 Socket
Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP
Operating System - Microsoft® Windows® 10 64-bit
Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- Solid Capacitor design
- 2oz Copper PCB
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
Typ pamäťového modulu: DDR4
Rozhranie: 3.5mm Jack
Socket (pätica): Socket AM4
Formát: ATX
Integrovaná grafická karta: Ano (CPU)
Chipset: AMD
PCI express 16x: Více než 1
Integrovaná LAN karta: 1
Podpora RAID: 10
