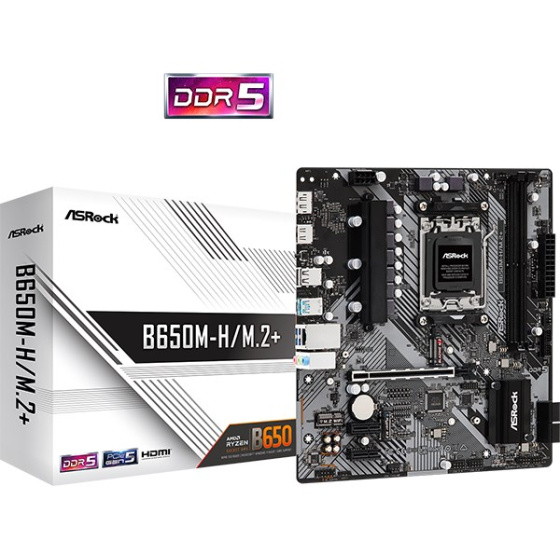

ASRock MB Sc AM5 B650M-H/M.2+, AMD B650, 2xDDR5, 1xDP, 1xHDMI, mATX

doprava zadarmo
Pridať do obľúbenýchASRock MB Sc AM5 B650M-H/M.2+, AMD B650, 2xDDR5, 1xDP, 1xHDMI, mATX
Formát:micro ATX; Chipset:Intel B650; Socket (pätica):Socket AM5 (LGA 1718); Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 10; PCI express 16x:1.

Kód produktu380874
Part numberB650M-H/M.2+
EAN produktu4710483943768

Záruka:24 Měsíc(ů)
Výrobca:ASRock
Skladová dostupnosť:Skladom
Vaša cena bez DPH
89.83 EUR
Vaša cena vrátane DPH
108.70 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

ASRock B650M-H/M.2+

  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 6+1+1 Power Phase, Dr.MOS
  • Supports DDR5 6400+ MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics *1
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
  • 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
  • Realtek Gigabit LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback


CPU

- Supports AMD Socket AM5 RyzenTM CPU 7000 Series Processors



Chipset

- AMD B650



Memory

- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)*
- Max. capacity of system memory: 96GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for
Overclocking (EXPO) memory modules
* Please refer to Memory Support List on ASRock's website for more information.
(http://www.asrock.com/



Expansion Slot

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
* Supports NVMe SSD as boot disks
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)



Graphics

Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and
max. resolution up to 4K 120Hz
- 1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and
max. resolution up to 4K 120Hz



Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Nahimic Audio



LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H



USB

- 1 x USB 3.2 Gen1 Type-C (Rear)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection



Rear Panel I/O

- 2 x Antenna Mounting Points
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- HD Audio Jacks: Line in / Front Speaker / Microphone



Storage

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s)
mode*
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s)
mode*
Chipset:
- 4 x SATA3 6.0 Gb/s Connectors
* Supports NVMe SSD as boot disks
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*
* Requires additional M.2 NVMe expansion cards to support RAID 10



Internal I/O

- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
* CPU_FAN1 supports the fan power up to 1A (12W).
** CHA_FAN1~3/WP support the fan power up to 2A (24W).
** CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.



BIOS Feature

- 256Mb AMI UEFI Legal BIOS with GUI support



Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash



OS

Microsoft® Windows® 10 64-bit / 11 64-bit



Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required



Accessories

1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 3 x Screws for M.2 Sockets



Unique Feature

Superb Productivity
- PCIe Gen5 (M.2)
- Dual Channel DDR5
Rock-Solid Durability
- 6+1+1 Power Phase, 50A Dr.MOS for VCore
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker



Form Factor

- Micro ATX Form Factor: 24.4 cm x 22.6 cm


.
Technologie paměti RAM: DDR5
Socket (patice): Socket AM5 (LGA 1718)
Formát základní desky: micro ATX
Chipset: Intel B650
PCI Express x16: 1
Podpora RAID: 10
COM port: Ne
LPT port: Ne
Pro procesory: AMD
Počet paměťových slotů: 2
DisplayPort: 1
TPM: Ano
USB 2: 6
USB 3: 5
M.2 slot: 2
SATA 3: 4
VGA: 0
DVI: 0
HDMI: 1
Led Header: Ano
PCI Express x1: 2
USB C: 1
