ASRock MB Sc AM5 X870 PRO RS WIFI, AMD X870, 4xDDR5, 1xHDMI, 2xThunderbolt, WI-FI

doprava zadarmo
Pridať do obľúbenýchASRock MB Sc AM5 X870 PRO RS WIFI, AMD X870, 4xDDR5, 1xHDMI, 2xThunderbolt, WI-FI
Formát:ATX; Chipset:AMD X870; Socket (pätica):Socket AM5 (LGA 1718); Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 10; PCI express 16x:2.

Kód produktu380957
Part numberX870 PRO RS WIFI
EAN produktu4710483949333

Záruka:36 Měsíc(ů)
Výrobca:ASRock
Skladová dostupnosť:Na dotaz
Vaša cena bez DPH
211.98 EUR
Vaša cena vrátane DPH
256.50 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

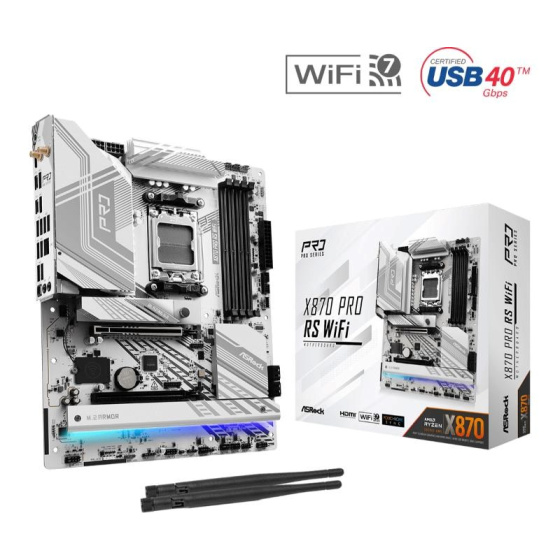

ASRock X870 Pro RS WiFi

Modern and futuristic, with the attractive specifications and perfect balance, the Race Sport (RS) Edition is the evolution of the most popular PRO series motherboard.

  • Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
  • 14+2+1 Phase Power Design, 80A Dr.MOS for VCore+SOC
  • 4 x DDR5 DIMMs
  • Supports Dual Channel, up to 8000+ (OC)
  • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
  • Graphics Output Options: 2 USB4 Type-C, 1 HDMI
  • Realtek ALC1220 7.1 CH HD Audio Codec, Nahimic Audio
  • 1 Blazing M.2 (PCIe Gen5x4)
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 Ultra M.2 (PCIe Gen3x4 & SATA3)
  • 4 SATA3
  • 2 USB4 Type-C (Rear)
  • 1 USB 3.2 Gen2x2 Type-C (Front)
  • 6 USB 3.2 Gen1 (4 Rear, 2 Front)
  • 9 USB 2.0 (6 Rear, 3 Front)
  • Realtek 2.5G LAN
  • 802.11be WiFi 7 + Bluetooth
  • Supports Toolless Multi-Layer M.2 Heatsink, M.2 Bottom Heatsink


Unique Feature

Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- 14+2+1 Power Phase, 80A Dr.MOS for VCore+SOC+MISC with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
Ultrafast Connectivity
- 2.5G LAN, 802.11be Wi-Fi 7 Module
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer
EZ Troubleshooter
- ASRock Post Status Checker


CPU

- Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors*


* The availability of expansion slots may vary by CPU. Please refer to PCIe/M.2 Bandwidth Table for details. (http://www.asrock.com/)


Chipset

- AMD X870


Memory

- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
- Max. capacity of system memory: 256GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


*Please refer to Memory Support List on ASRock's website for more information.


BIOS

- 256Mb AMI UEFI Legal BIOS with GUI support


Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 30Hz*


* Only the CPU's embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use AM5 Ryzen™ 9000, 8000 and 7000 processors with embedded graphics.


Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Nahimic Audio


LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control


Wireless LAN

- 802.11be 2x2 Wi-Fi 7 Module
- Supports IEEE 802.11a/b/g/n/ac/ax/axe/be
- Supports 2.4GHz/5GHz/6GHz* frequency band
- Supports 160MHz channel bandwidth with 6GHz* frequency band
- 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.4
- Supports MU-MIMO


* Wi-Fi 7 (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available.


Slots

CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFire™
- 15µ Gold Contact in VGA PCIe Slot (PCIE1)


* PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.


If M2_2 is occupied, PCIE2 will be disabled.


Supports NVMe SSD as boot disks


Storage

CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 2 x SATA3 6.0 Gb/s Connectors ASMedia ASM1061:
- 2 x SATA3 6.0 Gb/s Connectors


* Supports NVMe SSD as boot disks


M2_1 is the first priority for M.2 installation.


M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.


If M2_2 is occupied, PCIE2 will be disabled.


If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.


RAID

- Supports RAID 0 and RAID 1 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices*


* Requires additional M.2 NVMe expansion cards to support RAID 10


USB

CPU:
- 2 x USB4 Type-C (Rear)
- 2 x USB 3.2 Gen1 Type-A (Rear (USB32_1 and USB32_2))
Chipset:
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_3 and USB32_4), 2 Front)
- 9 x USB 2.0 (6 Rear, 3 Front)


* All USB ports support ESD Protection


Connector

- 1 x Thermistor Cable Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)***
- 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)


* Supports in total up to 12V/3A, 36W LED Strip


** Support in total up to 5V/3A, 15W LED Strip


*** CPU_FAN1 supports the fan power up to 1A (12W).


CPU_FAN2, CHA_FAN1~4 and AIO_PUMP support the fan power up to 3A (36W).


CPU_FAN2, CHA_FAN1~4 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.


Rear Panel I/O

- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)*
- 4 x USB 3.2 Gen1 Type-A Ports
- 6 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)


* Supports USB PD 3.0 up to 5V@3A (15W) charging


Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash


*These utilities can be downloaded from ASRock Live Update & APP Shop.


Accessories

- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas


Form Factor

- ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB


OS

- Microsoft Windows® 10 64-bit / 11 64-bit


Certifications

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
Technologie paměti RAM: DDR5
Socket (patice): Socket AM5 (LGA 1718)
Formát základní desky: ATX
Chipset: AMD X870
PCI Express x16: 2
Podpora RAID: 10
Podpora RAID: 0
LPT port: Ne
3.5mm Jack: Ano
Bezdrátové připojení: WiFi + Bluetooth
Pro procesory: AMD
Počet paměťových slotů: 4
DisplayPort: 0
TPM: Ne
USB 2: 9
USB 3: 6
M.2 slot: 3
SATA 3: 4
VGA: 0
DVI: 0
HDMI: 1
Led Header: Ano
USB C: 3
Počet Thunderbolt: 2
