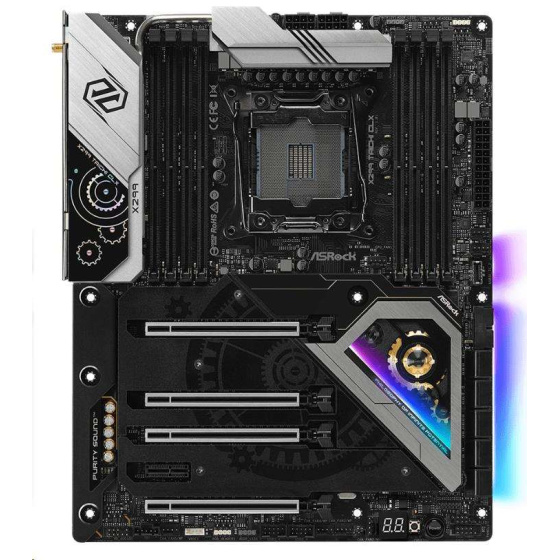

ASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA

Pridať do obľúbenýchASRock MB Sc LGA2066 X299 Taichi CLX,Intel X299, 8xDDR4, VGA
Socket (pätica):Socket 2066; Formát:ATX; Chipset:Intel; Typ pamäťového modulu:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Podpora RAID:1, 10; Rozhranie:VGA, USB 2.0, USB 3.2, 3.5mm Jack, LAN.

Kód produktu380582
Part numberX299 TAICHI CLX
EAN produktu4717677339765

Záruka:24 Měsíc(ů)
Výrobca:ASRock
Skladová dostupnosť:Na dotaz
Bežná cena
475 EUR
Vaša cena bez DPH
322.50 EUR
Vaša cena vrátane DPH
387 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

X299 Taichi CLX



  • Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket

  • 13 Power Phase Design, Dr. MOS

  • Supports DDR4 4200+(OC)

  • 4 PCIe 3.0 x16, 1 PCIe 3.0 x1

  • NVIDIA® 3-Way SLI., AMD 3-Way CrossFireX.

  • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound. 4 & DTS Connect

  • 10 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 2 Ultra M.2 (PCIe Gen3 x4)

  • 1 USB 3.2 Gen2x2 20Gb/s Type-C

  • 1 USB 3.2 Gen2 10Gb/s Type-C (Front)

  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)

  • Realtek 2.5 Gigabit LAN, Intel® Gigabit LAN

  • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0

  • ASRock Polychrome SYNC

  • Hyper BCLK Engine III




TECHNICAL SPECIFICATIONS













































Unique Feature ASRock USB 3.2 Gen2
- ASRock Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)
- ASRock Type C USB 3.2 Gen2x2 Port (20 Gb/s)
ASRock Super Alloy
- XXL Aluminum Alloy Heatsink
- Premium 60A Power Choke
- Dr. MOS
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Matte Black PCB
- High Density Glass Fabric PCB
- 8 Layer PCB
- 2oz Copper PCB
2.5G LAN
Intel® 802.11ax WiFi
ASRock Steel Slots
ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU

- Supports Intel® Core™ X-Series Processor Family for the LGA 2066 Socket (Cascade Lake-X, Skylake X Refresh and Skylake X)
- Digi Power design
- 13 Power Phase design
- Supports Intel® Turbo Boost Max Technology 3.0
- Supports ASRock Hyper BCLK Engine III


Chipset - Intel® X299
Memory

- Quad Channel DDR4 Memory Technology
- 8 x DDR4 DIMM Slots
- Supports DDR4 4200+(OC)* / 4000(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Max. capacity of system memory: 256GB
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15µ Gold Contact in DIMM Slots


*The maximum memory frequency supported may vary by processor type.


Graphics

- n/a


Slots

- 4 x PCI Express 3.0 x16 Slots*
- 1 x PCI Express 3.0 x1 Slot
- Supports AMD 3-Way CrossFireX™ and CrossFireX™**
- Supports NVIDIA® 3-Way SLI™ and SLI™**
- 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)
- 15µ Gold Contact in VGA PCIe Slot (PCIE1 and PCIE3)


*If you install CPU with 48 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x8/x16/x8. If a M.2 PCI Express module is installed on M2_1 or M2_2, PCIE2 will downgrade to x4 mode. If M.2 PCI Express modules are installed on M2_1 and M2_2, PCIE2 will be disabled.
If you install CPU with 44 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x16/x8. If a M.2 PCI Express module is installed on M2_1, PCIE2 will be disabled.
If you install CPU with 28 lanes, PCIE1/PCIE2/PCIE3/PCIE5 will run at x16/x4/x8/x0. If a M.2 PCI Express module is installed on M2_1, PCIE2 will be disabled.
Supports NVMe SSD as boot disks


**3-Way CrossFireX™ and 3-Way SLI™ are only supported with CPU with 48 lanes or 44 lanes.


Storage

- 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17 and Intel® Smart Response Technology), NCQ, AHCI and Hot Plug*
- 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug
- 2 x Ultra M.2 Sockets (M2_1 and M2_2), support M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_3), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**


*If M2_3 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.


**M2_2 is only supported with CPU with 48 lanes.
Supports Intel® Optane™ Technology
Supports PCIe RAID
Supports NVMe SSD as boot disks


LAN 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Dragon RTL8125AG):
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
1 x Gigabit LAN 10/100/1000 Mb/s (Intel® I219V):
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Wireless LAN - Intel® 802.11ax WiFi Module
- Supports IEEE 802.11a/b/g/n/ax
- Supports Dual-Band (2.4/5 GHz)
- Supports high speed wireless connections up to 2.4Gbps
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth 5.0 + High speed class II
- Supports MU-MIMO
Connector

- 1 x Virtual RAID On CPU Header
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 2 x RGB LED Headers*
- 2 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15µ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin)******
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)
- 1 x Front Panel Type C USB 3.2 Gen2 Header (ASMedia ASM3142)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button


*Supports in total up to 12V/3A, 36W LED Strip


**Support in total up to 5V/3A, 15W LED Strip


***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.


****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.


*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.


******The Thunderbolt™ AIC card can be installed in the enabled PCIe slot (depending on CPU type).


Audio

- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- Supports Purity Sound™ 4
- Nichicon Fine Gold Series Audio Caps
- 120dB SNR DAC with Differential Amplifier
- NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
- Pure Power-In
- Direct Drive Technology
- PCB isolate shielding
- Impedance Sensing on Rear Out port
- Individual PCB Layers for R/L Audio Channel
- Gold Audio Jacks
- 15µ Gold Audio Connector
- Supports DTS Connect


Rear panel I/O

- 2 x Antenna Ports
- 1 x Optical SPDIF Out Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ASMedia ASM3242) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x Clear CMOS Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)


*Ultra USB Power is supported on USB3_3_4 ports.
ACPI wake-up function is not supported on USB3_3_4 ports.


Software and UEFI

Software
- Dragon 2.5G LAN Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Easy RAID Installer


*These utilities can be downloaded from ASRock Live Update & APP Shop.


Support CD - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
BIOS - 2 x 128Mb AMI UEFI Legal BIOS with multilingual GUI support (1 x Main BIOS and 1 x Backup BIOS)
- Supports Secure Backup UEFI Technology
- ACPI 6.1 Compliant wake up events
- SMBIOS 3.0 Support
- CPU, DRAM, VPPM, VTTM, PCH 1.0V, VCCMPHY, VCCIO, VCCSA, CPUPLL, CLK VDD Voltage Multi-adjustment
Accessories - Quick Installation Guide, Support CD
- 4 x SATA Data Cables
- 1 x ASRock SLI_HB_Bridge_2S Card
- 1 x ASRock WiFi 2.4/5 GHz Antenna
- 1 x ASRock Screwdriver
- 3 x Screws for M.2 Sockets
- 3 x Standoffs for M.2 Sockets
Hardware Monitor - Temperature Sensing: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
- Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, PCH 1.0V, VCCIO, VCCSA
Operating System

- Microsoft® Windows® 10 64-bit


Form Factor - ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
- 8 Layer PCB
- 2oz Copper PCB
Certifications - FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)

.
Typ pamäťového modulu: DDR4
Rozhranie: 3.5mm Jack
Socket (pätica): Socket 2066
Formát: ATX
Integrovaná grafická karta: Nie
Chipset: Intel
PCI express 16x: Více než 1
Integrovaná LAN karta: 1
Podpora RAID: 10
