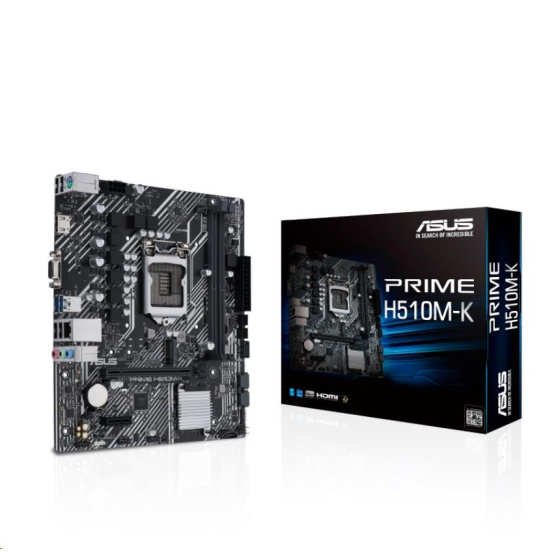

ASUS MB Sc LGA1200 PRIME H510M-K, Intel B510, 2xDDR4, 1xHDMI, 1xVGA, mATX

Novinka
Pridať do obľúbenýchASUS MB Sc LGA1200 PRIME H510M-K, Intel B510, 2xDDR4, 1xHDMI, 1xVGA, mATX
Socket (pätica):Socket 1200; Formát:micro ATX; Integrovaná grafická karta; Chipset:Intel; Typ pamäťového modulu:DDR4; PCI express 16x:1; Rozhranie:HDMI, VGA, USB 2.0, USB 3.2, 3.5mm Jack; Ďalšie rozhranie:S/PDIF, M.2.

Kód produktu431420
Part number90MB17N0-M0EAY0
EAN produktu4711081152132

Záruka:36 Měsíc(ů)
Výrobca:Asus
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
79 EUR
Vaša cena bez DPH
60.00 EUR
Vaša cena vrátane DPH
72 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

PRIME H510M-K


Intel® H510 (LGA 1200) micro ATX motherboard with PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet, HDMI, D-Sub, USB 3.2 Gen 1 Type-A, SATA 6 Gbps, COM header, and RGB header



  • Intel® LGA 1200 socket: Ready for 11th and 10th Gen Intel® Processors

  • Ultrafast connectivity: PCIe 4.0, 32Gbps M.2 slot, Intel® 1 Gb Ethernet and USB 3.2 Gen 1

  • Comprehensive cooling: PCH heatsink and Fan Xpert

  • 5X Protection III: Multiple hardware safeguards for all-round protection


CPU


Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.


Chipset


H510


Memory


Memory Channels:2DDR4 (Dual Channel)
Max Memory Size:64GB
DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel® processors support 2933/2800/2666/2400/2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.


Graphics


1 x D-Sub
1 x HDMI 2.0
* Graphics specifications may vary between CPU types.
** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.


Expansion Slots


Intel® 11th & 10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot
- Intel® 11th Gen processors support PCIe 4.0 x16
- Intel® 10th Gen processors support PCIe 3.0 x16
Intel® H510 Chipset
1 x PCIe 3.0 x1 slot


Storage


Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H510 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* The M.2 slot shares bandwidth with the SATA6G_2 port. When a device in SATA mode is installed on the M.2 slot, the SATA6G_2 port cannot be used.


Ethernet


1 x Intel® I219-V 1Gb Ethernet
ASUS LANGuard


USB


Rear USB:Total 6 ports
2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB:Total 4 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports


Audio


Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.


Back Panel I/O Ports


2 x USB 3.2 Gen 1 ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x D-Sub port
1 x HDMI™ port
1 x Intel® I219-V 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port


Internal I/O Connectors


Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Miscellaneous
1 x RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header


Special Features


ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS Lighting Control
- RGB header


Software Features


ASUS Exclusive Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode


BIOS


128 Mb Flash ROM, UEFI AMI BIOS


Manageability


WOL by PME, PXE


Accessories


Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 ANCHOR
Installation Media
1 x Support DVD
Documentation
1 x User manual


Operating System


Windows 10 64bit


Form Factor


microATX
22.6cm x 20.3cm

.
Typ pamäťového modulu: DDR4
Rozhranie: VGA
Socket (pätica): Socket 1200
Formát: micro ATX
Integrovaná grafická karta: Áno
Chipset: Intel
PCI express 16x: 1
Ďalšie rozhranie: S/PDIF
Aktuálna cena produktu je72EUR  s dph
