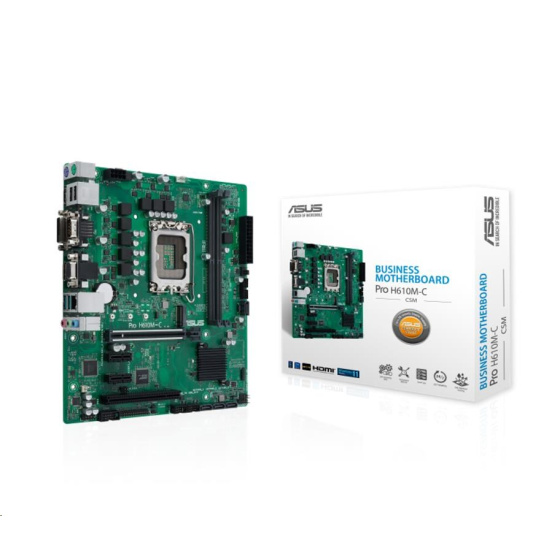

ASUS MB Sc LGA1700 PRO H610M-C-CSM, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xDVI, 1xVGA, mATX

doprava zadarmo
Pridať do obľúbenýchASUS MB Sc LGA1700 PRO H610M-C-CSM, Intel H610, 2xDDR5, 1xDP, 1xHDMI, 1xDVI, 1xVGA, mATX
Formát:micro ATX; Chipset:Intel H610; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR5; Podpora RAID:Bez RAID podpory; PCI express 16x:1.

Kód produktu431749
Part number90MB1AT0-M0EAYC
EAN produktu4711081655152
Záruka:36 Měsíc(ů)
Skladová dostupnosť:Skladom
Bežná cena
126 EUR
Vaša cena bez DPH
92.56 EUR
Vaša cena vrátane DPH
112 EUR
Otázka na predajcu>

Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Strážny pes

Pro H610M-C-CSM

Micro-ATX H610 business motherboard with enhanced security, reliability, manageability and serviceability

  • Intel® LGA 1700 socket: Ready for 12th Gen Intel Core™ processors
  • ASUS CSM program: A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
  • ASUS Control Center Express: Integrated IT monitoring and management software that simplifies enterprise-level system administration
  • Enhanced system security: A self-recovering BIOS, and TPM to safeguard PCs
  • Consistent and reliable performance: High-quality components and rigorous testing to help ensure durability in harsh environments
  • Efficient management and customization: An event log and commercial BIOS kit to enable easy maintenance
  • Better serviceability: Q-LED diagnostic display and COM debug header to facilitate building and support processes
  • Ultrafast connectivity: PCIe 5.0, DDDR 5, USB 3.2 Gen 2


Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.


Intel® H610 Chipset


2 x DIMM, Max. 64GB, DDR5 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to for memory support list.


1 x DisplayPort**
1 x D-Sub port
1 x HDMI® port***
1 x DVI-D port
* Graphics specifications may vary between CPU types. Please refer to for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** Supports up to 3 displays simultaneously.

Expansion Slots

Intel® 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® H610 Chipset
2 x PCIe 3.0 x1 slots
1 x PCI


Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
Intel® H610 Chipset
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports


1 x Intel® 1Gb Ethernet


Rear USB (Total 4 ports)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports


Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x D-Sub port
1 x DVI-D port
1 x Intel® 1Gb Ethernet
3 x Audio jacks
1 x PS/2 keyboard (purple) port
1 x PS/2 mouse (green) port
1 x COM port

Internal I/O Connectors

Fan and cooling related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
1 x Clear CMOS header
1 x Chassis Intrude header
1 x COM Port headers
1 x Front Panel Audio header (AAFP)
1 x COM debug header
1 x LPT header
1 x Mono-out header(with Amp IC)
1 x SMBUS header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header

Special Features

- Box Headers
Bespoke Motherboard Design & Business Focused Features
- Q-LED Core
- ASUS Self Recovering BIOS
- ASUS Event Log
- ASUS Commercial BIOS kit
- Anti-Moisture
- 24/7 Reliability
- Overcurrent Protection

Software Features

ASUS Exclusive Software
IT Management software supported
- ASUS Control Center Express(ACCE)


128Mb Flash ROM




2 x SATA 6Gb/s cables
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
1 x ACC Express Activation Key Card
1 x User guide

Operating System

Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor
9.6 inch x 8.7 inch (24.4 cm x 22 cm)

Technologie paměti RAM: DDR5
Socket (patice): Socket 1700
Formát základní desky: micro ATX
Chipset: Intel H610
PCI Express x16: 1
Podpora RAID: Bez RAID podpory
COM port: Ano
LPT port: Ano
3.5mm Jack: Ano
Bezdrátové připojení: bez
Pro procesory: Intel
Počet paměťových slotů: 2
DisplayPort: 1
TPM: Ano
USB 2: 4
USB 3: 3
PCI: 1
M.2 slot: 1
SATA 3: 4
VGA: 1
DVI: 1
PCI Express x1: 2
LAN: 1Gbit/s
