BAZAR-GIGABYTE MB Sc AM4 A520M S2H, AMD A520, 2xDDR4, 1xHDMI, 1xDVI, VGA, mATX-po opravě (bez přísl.)
Kód: 524291Skladom
Termín a spôsob doručenia
Formát:micro ATX; Chipset:AMD; Socket (pätica):Socket AM4; Typ pamäťového modulu:DDR4; Podpora RAID:1, 10; PCI express 16x:1; Integrovaná grafická karta:Ano (CPU); Integrovaná LAN karta:1; Ďalšie rozhranie:M.2.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
524291
EAN:
524291
Záruka:
6 Měsíc(ů)
Stav:
Refurbrished
Typ pamäťového modulu:
DDR4
Rozhranie:
LAN
Socket (pätica):
Socket AM4
Formát:
micro ATX
Integrovaná grafická karta:
Ano (CPU)
Chipset:
AMD
PCI express 16x:
1
Integrovaná LAN karta:
1
Podpora RAID:
1, 10
Ďalšie rozhranie:
M.2
Popis BAZAR-GIGABYTE MB Sc AM4 A520M S2H, AMD A520, 2xDDR4, 1xHDMI, 1xDVI, VGA, mATX-po opravě (bez přísl.)
A520M S2H
AMD A520 Ultra Durable Motherboard with Pure Digital VRM Solution, GIGABYTE Gaming LAN with Bandwidth Management, PCIe 3.0 x4 M.2, RGB FUSION 2.0, Smart Fan 5, Q-Flash Plus, Anti-Sulfur Resistors Design
- Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- 4+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
- Ultra-Fast NVMe PCIe 3.0 x4 M.2 Connector
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- HDMI, DVI-D, D-sub Ports for Multiple Display
- RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
- Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
(Please refer "CPU Support List" for more information.)
Chipset
AMD A520
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen™ 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Support for up to 3 displays at the same time
Maximum shared memory of 16 GB
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
USB
CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x speaker header
1 x chassis intrusion header
1 x Clear CMOS jumper

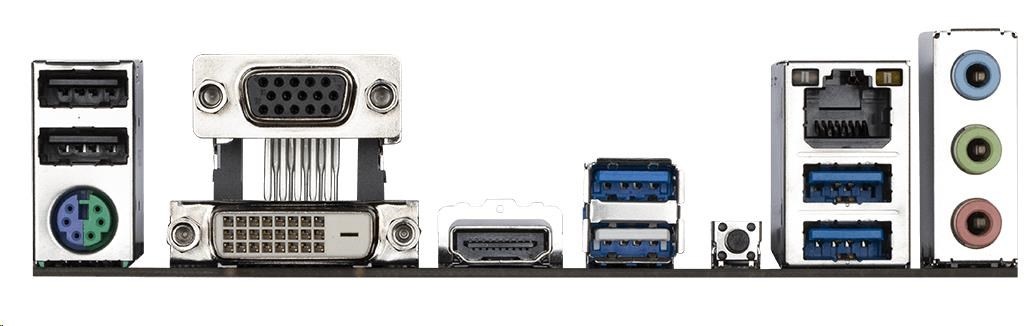

Back Panel Connectors
1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x Q-Flash Plus button
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 20.5cm
