BAZAR - GIGABYTE MB Sc LGA1700 B660M GAMING AC DDR4, Intel B660, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, WI-FI, mATX - Po opravě (B
Kód: 524853Ihned k odeslání
Termín a spôsob doručenia
Formát:micro ATX; Chipset:Intel B660; Socket (pätica):Socket 1700; Typ pamäťového modulu:DDR4; PCI express 16x:1.prečítajte si viac
/heart.svg){kind=small}
/compare.svg){kind=small}
Vyberte si zvýhodnené balenie
Množstevné zľavy
/envelope.svg){kind=small}
Váš dotaz
/bell.svg){kind=small}
Sledovat
/share.svg){kind=small}
Zdieľať
Parametre
Výrobca:
Kód:
524853
EAN:
524853
Záruka:
6 Měsíc(ů)
Stav:
Refurbrished
Typ pamäťového modulu:
DDR4
Socket (pätica):
Socket 1700
Formát:
micro ATX
Chipset:
Intel B660
PCI express 16x:
1
3.5mm Jack:
Ano
Bezdrátové připojení:
Wi-Fi
Pro procesory:
Intel
Počet paměťových slotů:
2
DisplayPort:
1
TPM:
Ano
M.2 slot:
2
SATA 3:
4
VGA:
1
HDMI:
1
PCI Express x1:
1

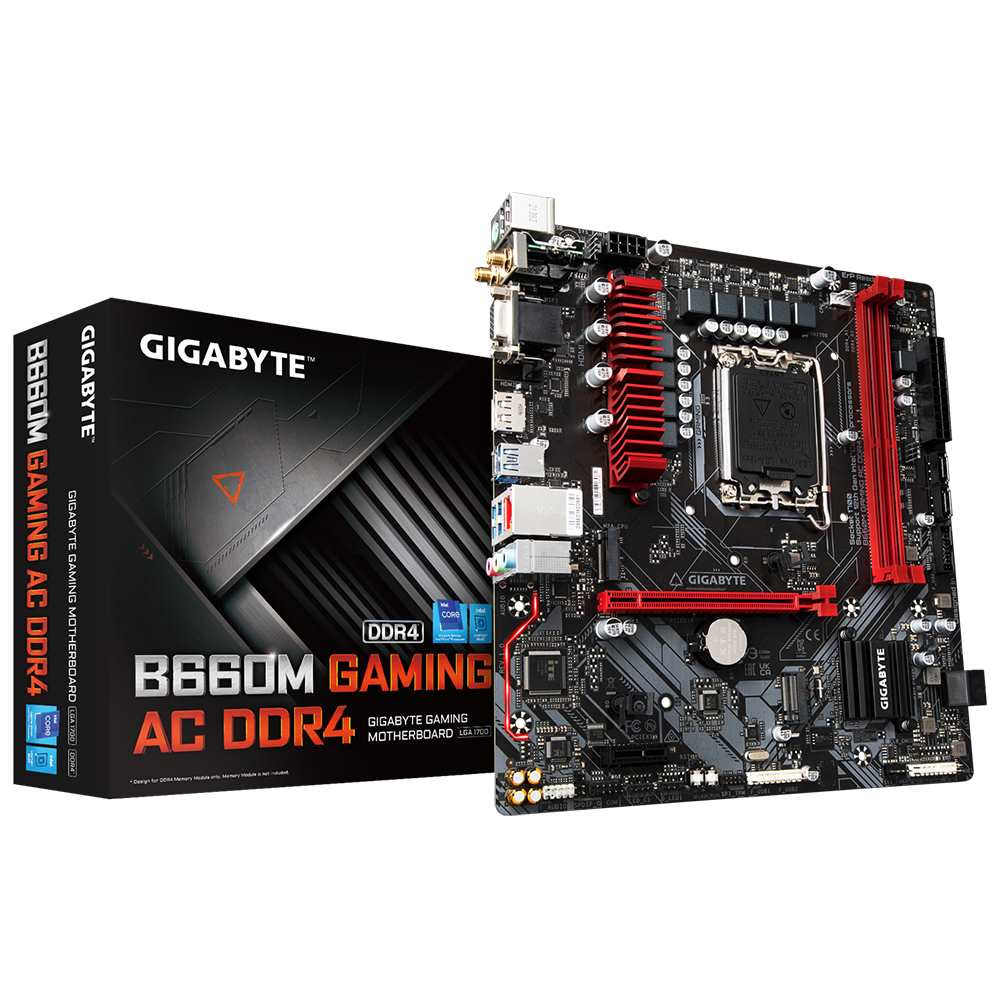

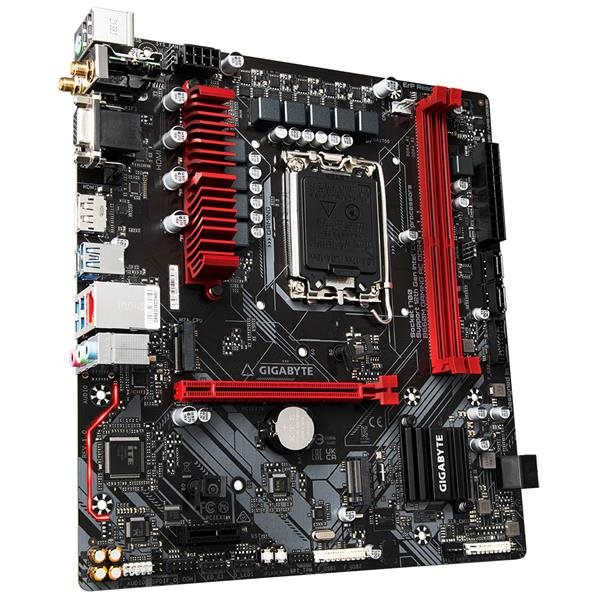

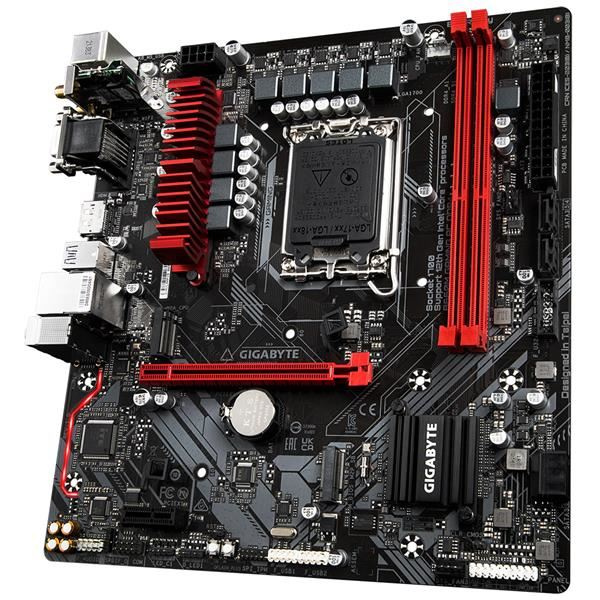

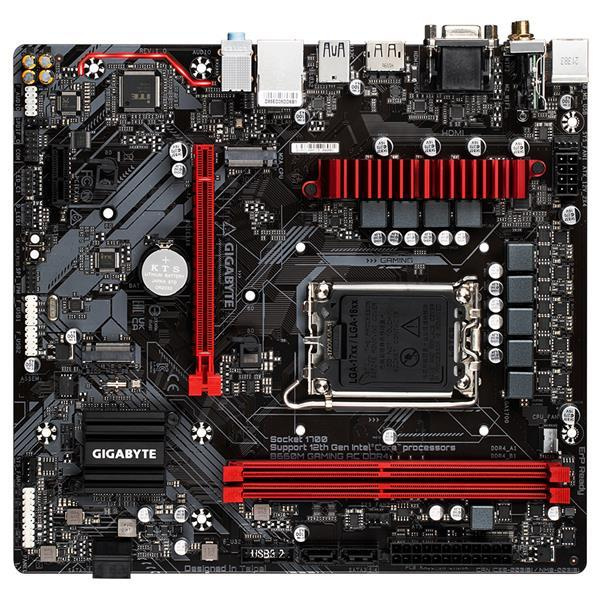

Popis BAZAR - GIGABYTE MB Sc LGA1700 B660M GAMING AC DDR4, Intel B660, 2xDDR4, 1xDP, 1xHDMI, 1xVGA, WI-FI, mATX - Po opravě (B
Bazar
B660M GAMING AC DDR4
Intel® B660 GAMING Motherboard with 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink, 2 x PCIe 4.0 M.2, 2.5GbE LAN, 802.11ac Wireless?, Rear USB 3.2 Gen 1 Type-C®, RGB FUSION 2.0, Q-Flash Plus???
- Supports 12th Gen Intel® Core™ Series Processors??
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- 6+2+1 Phases Hybrid Digital VRM with MOS Heatsink?
- Fast 2.5 GbE GAMING LAN with Bandwidth Management??
- WIFI 802.11ac & BT with AERO Antenna??
- Dual Ultra-Fast NVMe PCIe 4.0 x4 M.2?
- Rear SuperSpeed USB 3.2 Gen 1 TYPE-C® for Fast and Versatile Connections??
- High Quality Audio Capacitors and Audio Noise Guard?
- RGB FUSION 2.0 supports Addressable LED & RGB LED Strips??
- Smart Fan 6 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP??
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card??
CPU
LGA1700 socket: Support for 13th Generation Intel® Core™ Processors and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
L3 cache varies with CPU
* Please refer to "CPU Support List" for more information.
Chipset
Intel® B660 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200/3000/2933/2666/2400/2133 MHz memory modules
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)
Support for up to 3 displays at the same time
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi AC 3168 (PCB rev. 1.0)
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate
Intel® Wi-Fi AC 9560 (PCB rev. 1.1)
WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 5.1
Support for 11ac 160MHz wireless standard and up to 1.73 Mbps data rate.
* Actual data rate may vary depending on environment and equipment.
Expansion Slots
1 x PCI Express x16 slot, running at x16
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
1 x PCI Express x1 slot
(The PCIEX1 slot conforms to PCI Express 3.0 standard.)
Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
Support for SATA RAID 0, RAID 1, RAID 5, and RAID 10
Intel® Optane™ Memory Ready
* System acceleration with Intel® Optane™ Memory can only be enabled on the M.2 connectors supported by the Chipset.
USB
Chipset:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x serial port header
1 x S/PDIF Out header
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper
*All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

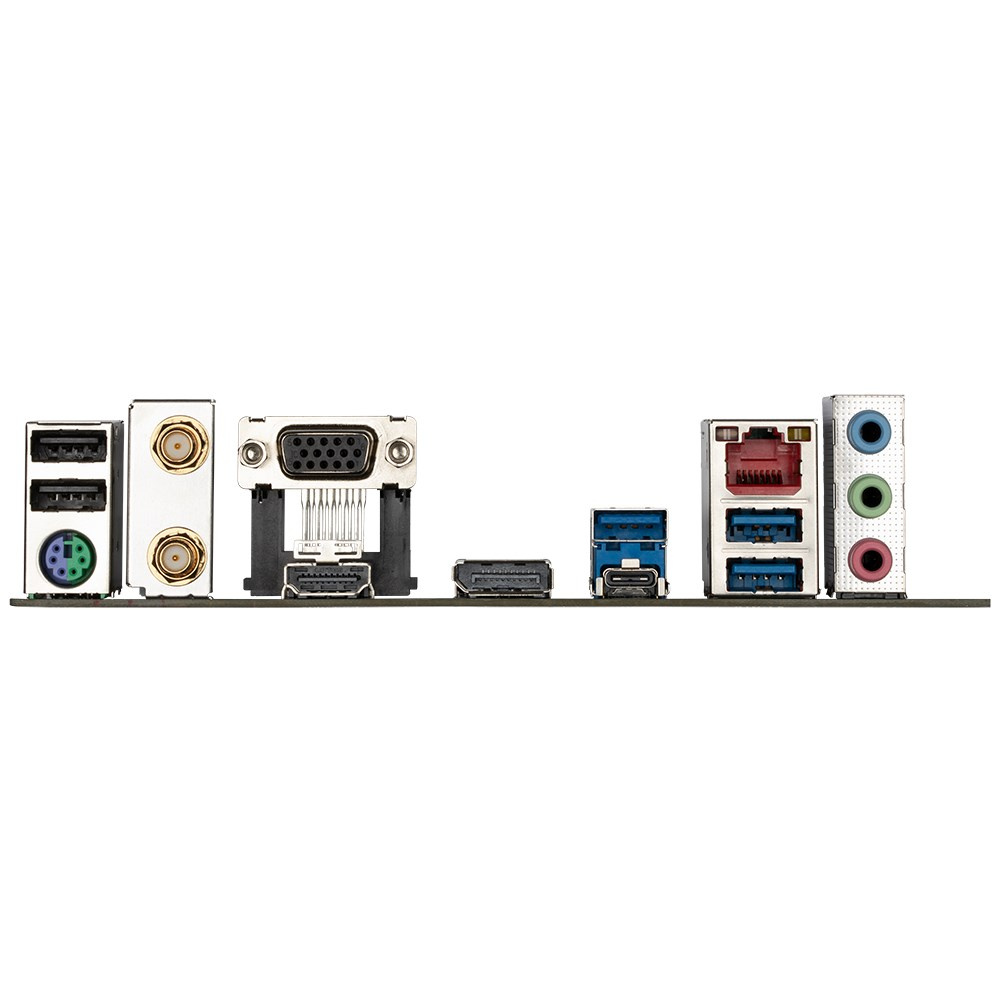

Back Panel Connectors
2 x USB 2.0/1.1 ports
1 x PS/2 keyboard/mouse port
2 x SMA antenna connectors (1T1R)
1 x D-Sub port
1 x HDMI port
1 x DisplayPort
3 x USB 3.2 Gen 1 ports
1 x USB Type-C® port, with USB 3.2 Gen 1 support
1 x RJ-45 port
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
@BIOS
EasyTune
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Realtek® Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 22.5cm
