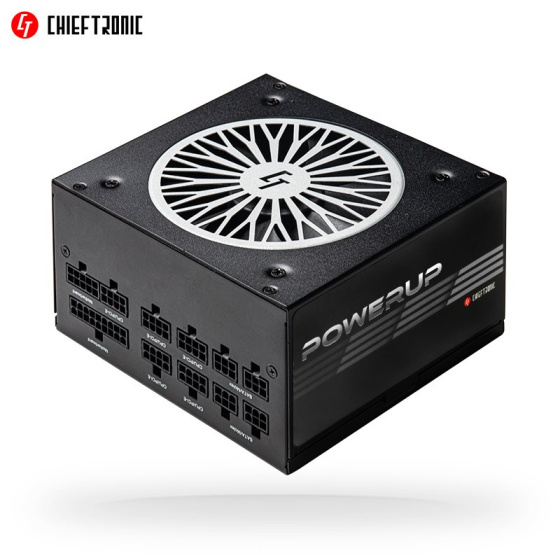

CHIEFTEC zdroj Chieftronic PowerUp GPX-850FC, 850W ATX,80PLUS GOLD,cable-mgt,retail

Novinka
Pridať do obľúbenýchCHIEFTEC zdroj Chieftronic PowerUp GPX-850FC, 850W ATX,80PLUS GOLD,cable-mgt,retail
Formát zdroja:ATX; Výkon zdroja (vo W):850; Konektory:PCIe 8-pin, SATA 15-pin, Molex; Konektory pre základnú dosku:ATX 20-pin, ATX 24-pin, EPS 8-pin; Vlastnosti zdroja:Modulárna kabeláž.

Kód produktu1022613
Part numberGPX-850FC
EAN produktu753263077202

Záruka:60 Měsíc(ů)
Výrobca:Chieftec
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
127 EUR
Vaša cena bez DPH
81.67 EUR
Vaša cena vrátane DPH
98 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

GPX-850FC


- 80 PLUS® Gold certified efficiency
- Fully modular cable management
- Full-bridge LLC converter with DC-to-DC technology
- Low ripple and tight voltage regulation
- 5-year warranty
With the PowerUp series, Chieftronic aims to bring the well-received technical quality and high performance of the PowerPlay series to the mainstream gamer’s market. With modern full-bridge LLC and DC-to-DC technology, extremely low ripple values and tight voltage regulation can be achieved.
A high power-density design allows this series to deliver up to 850W of power in a compact form factor, measuring only 14 cm in total length, while achieving 80 PLUS® Gold certified efficiency. The compact size combined with the fully modular cable management, allows the PowerUp series to be used conveniently in smaller builds, where a short PSU is needed, while long, flat, black cables support builds even in very
large gaming cases.
SPECIFICATIONS
Performance
Model PowerUp 850W
Article no. GPX-850FC
EAN code 0753263077202
Weight (without/with package) 2.4 kg / 2.95 kg
AC Input 100 - 240V / 12.0A
Frequency 47 - 63Hz
+5V 20A
+3,3V 20A
+5V & +3,3V combined 110W
+12V
70.5A/846W
-12V 0.3A / 3.6W
+5VsB 2.5A / 12.5W
Maximum Power 850W

Connectors

20+4PIN ATX 1
8 PIN CPU (4+4) 2
8 PIN PCIe (6+2) 6
SATA 9
MOLEX 3
FLOPPY 1

Cable length

20+4PIN ATX 650
8 PIN CPU (4+4) 650/150
8 PIN PCIe (6+2) 3x 500/150
SATA 3x 500/150/150
MOLEX 500/150/150/150
FLOPPY Molex

Features

ATX 12V Version v2.53
Efficiency 80 PLUS Gold
Dimension (DxWxH) 140 mm x 150 mm x 86 mm
PFC Active PFC
Fan 120mm silent fan
Security
  • OVP (Over voltage protection)
  • OPP (Over power protection)
  • OCP (Over current protection)
  • SCP (Short-circuit protection)
  • OTP (Over temperature protection)
  • AFC (Automatic Fanspeed Control)
  • SIP (Surge & Inrush Protection)
  • UVP (Undervoltage Protection)
  • No-load operation
Warranty 60 Months
.
Výkon zdroja (vo W): 850
Formát zdroja: ATX
Konektory: SATA 15-pin
Konektory pre základnú dosku: EPS 8-pin
Vlastnosti zdroja: Modulárna kabeláž
