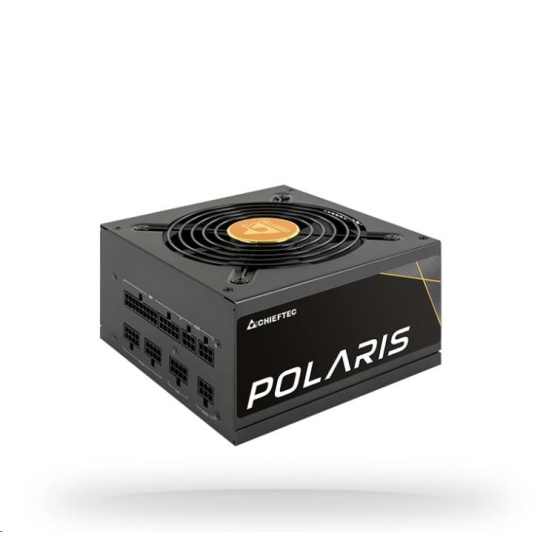

CHIEFTEC zdroj Polaris Series, PPS-750FC, 750W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold

Novinka
Pridať do obľúbenýchCHIEFTEC zdroj Polaris Series, PPS-750FC, 750W, ATX-12V V.2.4, PS2, 12cm fan, Active PFC, Modular, 80+ Gold
Výkon zdroja (vo W):750; Formát zdroja:ATX; Konektory:PCIe 8-pin, SATA 15-pin, Molex, FDD; Konektory pre základnú dosku:ATX 24-pin, EPS 8-pin; Vlastnosti zdroja:Modulárna kabeláž.

Kód produktu1022594
Part numberPPS-750FC
EAN produktu753263076441

Záruka:24 Měsíc(ů)
Výrobca:Chieftec
Skladová dostupnosť:Na dotaz
Bežná cena
106 EUR
Vaša cena bez DPH
67.50 EUR
Vaša cena vrátane DPH
81 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

PPS-750FC



  • 80 PLUS® Gold certified efficiency

  • Fully modular cable management

  • High power density design for compact size

  • LLC half-bridge converter with DC-to-DC technology


The Polaris Series brings CHIEFTEC’s trusted and proven experience with high quality, 80 PLUS® Gold certified, fully modular power supplies back to the forefront of modern technology. Polaris Series PSU’s feature state-of-the-art technical design including LLC half-bridge converter with DC-to-DC technology, as well as high power-density to allow higher efficiency and power output with a more compact size.


With the size of only 140mm in length and fully modular cable management, the Polaris Series is easy to install in any system for standard ATX PSU. Cable lengths of 650mm ensure that these power-supplies can be used even in large builds. Whether a small PSU housing for compact system is needed or longer cables for large systems, the Polaris Series can be trusted to do the job with top performance and efficiency.




TECHNICAL SPECIFICATIONS

























































































PERFORMANCE
Model Polaris 750W
Article no. PPS-750FC
EAN code 0753263076441
Weight (without/with package) 2.285 kg / 2.590 kg
AC Input 100-240V / 10A
Frequency 50-60Hz
+5V 22A
+3,3V 22A
+5V & +3,3V combined 120W
+12V 1 62.5A / 750W
+12V 2 -
+12V 1 & +12V 2 combined -
P.F. >0,9
-12V 0,3A / 3,6W
+5VsB 3.0A / 15W
Maximum Power 750W
CONNECTORS
20+4PIN ATX 1
8 PIN EPS (4+4) 2
8 PIN PCIe (6+2) 4
SATA 8
MOLEX 3
FLOPPY 1
CABLE LENGHT
20+4PIN ATX 650
8 PIN EPS (4+4) 650/150
8 PIN PCIe (6+2) 2x 500/150
SATA 2x 450/150/150/150
MOLEX 450/150/150/150
FLOPPY Molex
FEATURES
Specification ATX 12V 2.4
Form factor PS II
Efficiency 80 PLUS® Gold
Dimension (DxWxH) 140mm x 150mm x 87mm
Fan 120mm silent fan
Security AFC (Automatic Fanspeed Control)
OCP (Overcurrent protection)
OPP (Overload protection)
OTP (Over Temperature protection)
OVP (Overvoltage protection)
SCP (Short-circuit protection)
SIP (Surge & Inrush Protection)
OCP (Overcurrent protection)
UVP (Undervoltage protection)
Warranty 24 Months

.
Výkon zdroja (vo W): 750
Formát zdroja: ATX
Konektory: PCIe 8-pin
Konektory pre základnú dosku: EPS 8-pin
Vlastnosti zdroja: Modulárna kabeláž
