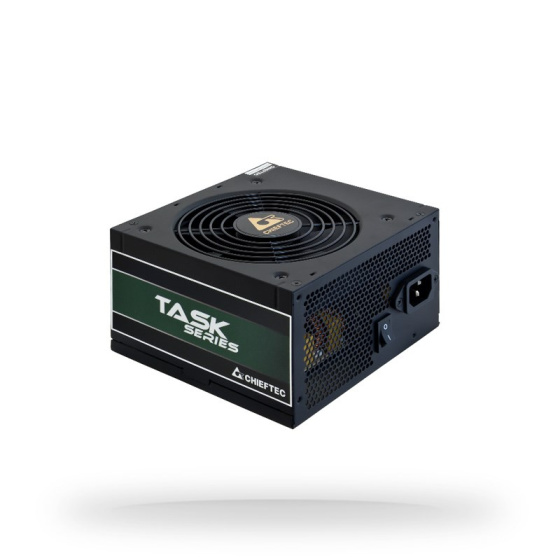

CHIEFTEC zdroj Task, TPS-700S, 700W, Full Range, 80+ Bronze, retail

Novinka
Pridať do obľúbenýchCHIEFTEC zdroj Task, TPS-700S, 700W, Full Range, 80+ Bronze, retail
Formát zdroja:ATX; Výkon zdroja (vo W):700; Konektory:PCIe 6-pin, PCIe 8-pin, SATA 15-pin, Molex; Konektory pre základnú dosku:ATX 24-pin, EPS 8-pin.

Kód produktu1022628
Part numberTPS-700S
EAN produktu753263076502

Záruka:24 Měsíc(ů)
Výrobca:Chieftec
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
69 EUR
Vaša cena bez DPH
44.17 EUR
Vaša cena vrátane DPH
53 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

TPS-700S


- 80PLUS® Bronze certified efficiency
- 650mm long cables for maximum case compatibility
- All modern protection and safety features included
The CHIEFTEC Task Series PSU’s are true to their name, and take on any task they are required for without any trouble.
With certified 80PLUS® Bronze efficiency and all modern protection and safety features, the PSU can be trusted to deliver power efficiently and reliably. With cable lengths extended to 650mm for motherboard and CPU, these power supplies will also serve excellently for builds inside larger cases.
SPECIFICATIONS:
Performance
Model Task 700W
Article no. TPS-700S
EAN code 0753263076502
Weight (without/with package) 1.74 kg / 2.15 kg
AC Input 100-240V / 10.0A
Frequency 47-63Hz
+5V 17A
+3,3V 19A
+5V & +3,3V combined 110W
+12V 1 648W / 54A
+12V 2 -
+12V 1 & +12V 2 combined -
P.F. >0,9
-12V 0,3A / 3,6W
+5VsB 2,5A / 12,5W
Maximum Power 700W

Connectors

24PIN ATX 1
8 PIN EPS (4+4) 1
8 PIN PCIe (6+2) 2
SATA 6
MOLEX 3

Cable length

24PIN ATX 650
8 PIN EPS (4+4) 650
8 PIN PCIe (6+2) 500/150
MOLEX 500/150/150
SATA 500/150/150
SATA 500/150/150

Features

Specification ATX 12V 2.3
Form factor PS II
Efficiency 80 PLUS® Bronze
Dimension (DxWxH) 140 mm x 150 mm x 87 mm
PFC Active PFC (0.9)
Fan 120mm silent fan
Security
  • AFC (Automatic Fanspeed Control)
  • OPP (Overload Protection)
  • OTP (Over Temperature Protection)
  • OVP (Overvoltage Protection)
  • SCP (Short Circuit Protection)
  • SIP (Surge & Inrush Protection)
  • UVP (Undervoltage Protection)
Warranty 24 Months
.
Výkon zdroja (vo W): 700
Formát zdroja: ATX
Konektory: PCIe 6-pin
Konektory pre základnú dosku: ATX 24-pin
