Club3D Dokovací stanice USB-C, Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS

Novinka
Pridať do obľúbenýchClub3D Dokovací stanice USB-C, Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS
Typ príslušenstva:Dokovacie stanice a replikátory.

Kód produktu795183
Part numberCSV-1566
EAN produktu719214472092

Záruka:24 Měsíc(ů)
Výrobca:Club 3D
Skladová dostupnosť:Na dotaz
Bežná cena
338 EUR
Vaša cena bez DPH
206.67 EUR
Vaša cena vrátane DPH
248 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

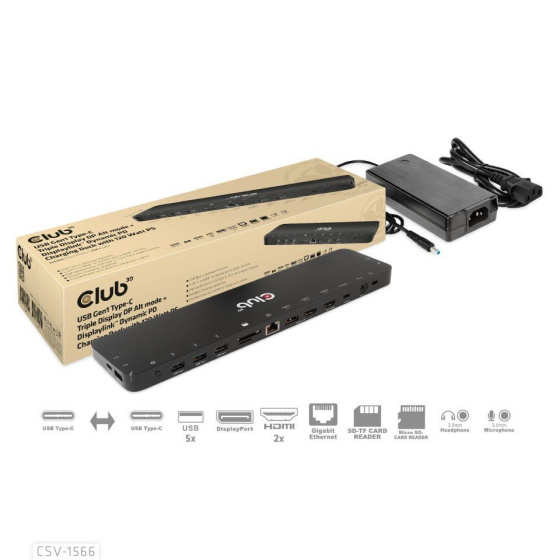

USB Gen1 Type-C Triple Display DP Alt mode Displaylink Dynamic PD Charging Dock with 120 Watt PS

The Club 3D CSV-1566 USB Gen1 Type-C Triple Display DP™ Alt mode + Displaylink™/ USB mode™ Dynamic PD Charging Dock with 120 Watt PS, is an integrated solution combining Video, Data, Power, Ethernet and Audio. This Dock is perfectly suited for extending a Type-C port or USB-A port(via a Type-C to USB converter) to provide multiple audio,video, data and power ports, providing an ideal solution to satisfy users who require multiple ports. This dock has 3 video ports (2 HDMI™, one from DP™1.2 Alt mode, one from USB mode, 1 Displayport™ from USB mode) for video experience, 4 USB Gen1 Type-A and 1 USB Gen1 Type-C for data transmission, RJ45 for super high speed Ethernet, SD/TF card slots for connecting memory cards. Besides, it has a smart charging port, bringing fast charging performance for connected mobile device(Apple,samsung phones, pads,etc). A 120W power adapter is provided to supply power for the function of this dock and charge the host with max 80W (20V/4A). This dock is a bottom design with can be put underneath the host. It can work on DP™1.2 Alt mode supported USB Type-C and -A hosts.

  • Support DP1.2 Alt mode and Displaylink™/ USB mode
  • Designed for extending USB Type-C port or -A port (by connecting a Type-C to USB-A converter)to be multiple video,data and power ports
  • Allow to output triple videos(dual 4K/60Hz+4K/30Hz) to work simultaneously with MST under both Mac and window system
  • HDMI™ 1 (DP™ Alt mode) supports max 4K/30Hz
  • HDMI™ 2 (USB mode) supports max 4K/60Hz
  • DP™(USB mode) support max 4K/60Hz
  • Support DP++
  • Support smart charging with max 5V/2.4A
  • Support Gigabit Ethernet to get access to super fast network
  • Support UHS-I SD3.0 with max 104Mbps, allow 2 card slots to work simultaneously
  • Support audio in and out
  • Support max 120W DC power in and bypass 80W to host
  • Short-circuit, over-current, over-voltage protection

TECHNICAL SPECIFICATIONS

Available Interfaces Input:
- 1x USB Gen2 Type-C Female for connecting to Host
Output:
- 1x USB Gen1 Type-C Female (data)
- 4x USB Gen1 Type-A Female
- 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max.
- 1x HDMI™ Female (DP Alt Mode)
- 1x HDMI™ Female (USB Mode)DisplayLink™
- 1x DP™ Female (USB Mode)DisplayLink™
- 1x SD Female
- 1x TF Female
- 1x RJ45
- 1x 3.5 mm Phone Socket (Microphone and headphone)
- 1x DC Power 20.5V
OS Support - Microsoft Windows® 10
- Mac OSX® Supports SST mode Only
In the box - CSV-1566 Docking Station
- PowerSupply Input: 100-110/240VAC, Output: up to 120W, Various Power plugs depending on Country (Specify on order)
- USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft
- Quick Install Guide
Other info - Box size: 36 x 11.5 x 6.5 cm / 14.17 x 4.53 x 2.56"
- Device size: 30.4 x 7.7 x 1.8 cm / 11.97 x 3.03 x 0.7"
- USB host Cable length approx.: 1m / 3.28 ft
- Device Weight: 358 gr / 12.63oz
- USB Cable Weight: 44 gr / 1.55 oz
- Powersupply weight: depending on power plug ? 580 gr / 20.46 oz
- Box Weight: 168gr. / 5.92 oz.
- LDPE Bag Weight: 5 gr / 0.18 oz
- Total Weight: ? 726gr / 25.06 oz
- Meets ROHS, FCC, and CE EMI requirements

.
Typ príslušenstva: Dokovacie stanice a replikátory
