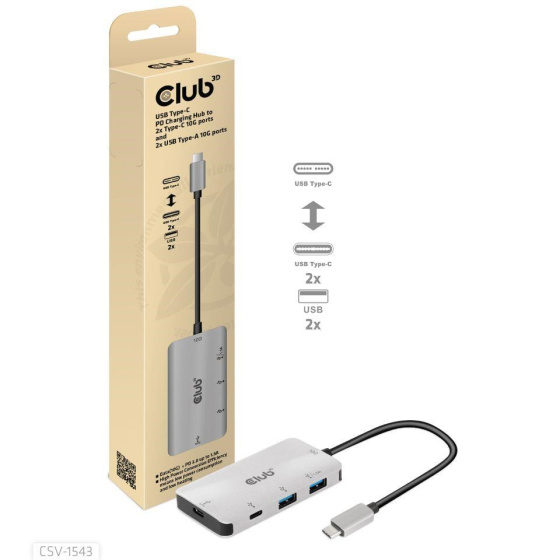

Club3D hub USB-C PD na 2x USB-C 10G porty a 2x USB-A 10G porty

Novinka
Pridať do obľúbenýchClub3D hub USB-C PD na 2x USB-C 10G porty a 2x USB-A 10G porty
Druh IO zariadenia:USB hub alebo switch; Prevedenie:Externé.

Kód produktu795185
Part numberCSV-1543
EAN produktu8719214472061

Záruka:24 Měsíc(ů)
Výrobca:Club 3D
Skladová dostupnosť:Na dotaz
Bežná cena
57 EUR
Vaša cena bez DPH
35.00 EUR
Vaša cena vrátane DPH
42 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports

The Club 3D CSV-1543 is an USB Gen2 Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports.The two USB Type-A ports are designed for transmitting data and one of the two USB Type-A ports can provide 1.5A charging for the connected USB Type-A devices (mobile phones, tablets, U-disk, etc). One of the two USB Type-C ports is designed for transmitting data and charging for the connected USB Type-C device, the other USB Type-C port supports both data and PD3.0 charging. It can work on any USB Type-C host (PC, notebook, tablet, Mobile phone, etc) that supports DP Alt mode.
High Power Conversion Efficiency means low power consumption and low heating 98.2%@Vin=5V; 92.5% @Vin=20V.
Advanced Power Management. The output power will guarantee uninterrupted working of USB Type-A SSD and U Disk when the Vin is in 5; 20V, so the connected USB device will not get disconnected while plugging in and out the PD Charger from the USB Type-C charging port.
Supported USB device current is as follows: 1.5A @PD3.0 device

  • High Power Conversion Efficiency, means low power consumption and low heating, 98.2%@Vin=5V; 92.5% @Vin=20V
  • Advanced Power Management
  • Support Fast Role Swap of PD 3.0
  • Support USB Type-C input, 2x USB Type-C + 2x USB Type-A output
  • Compliant with USB 3.1 specification and downward compatible with lower versions

TECHNICAL SPECIFICATIONS

USB Type-A - Both USB Type-A ports support max. 10Gbps data transmission
- 1 USB Type-A supports 5V/1.5A downstream charging(when Type-C PD power Charger is connected)
USB Type-C - 1 USB Type-C port supports max. 10Gbps data transmission speed
- Another Type-C port supports max. 10Gbps as downstream data port and max 100W PD charging as upstream charging port
- When USB Type-C PD power Charger is connected, the max output of 2x USB Type-A and 1 USB Type-C downstream ports is 3A
- When USB Type-C PD power Charger is not connected, the max output of all the downstream ports depends on the host eg:1.5A on macbook ,900mA on Chromebook, etc., depending on the specifications of your host device.
OS Support All
In the box CSV-1543 USB Type-C PD Charging Hub to 2x Type-C 10G ports and 2x USB Type-A 10G ports
Available Interfaces Input:
- 1x USB Gen2 Type-C Male
Output:
- 1x USB Type-C Female for Data
- 1x USB Type-C Female for Data and Charging
- 1x USB Type-A Female for Data
- 1x USB Type-A Female for Data and Charging(Max.1.5A when a USB Type-C PD Power Charger is connected)
Other info - Box size: 7 x 32 x 3.5cm 2.76 x 12.6 x 1.38"
- Device size: 8.5 x 4.5 x 1.2 cm / 3.35 x 1.77 x 0.47"
- Total Length: 25.4 cm / 10"
- USB Type-C connector dimensions: 3.4 x 1.3 x 0.7 cm / 1.34 x 0.51 x 0.28"
- Device Weight: 60 gr / 2.12 oz
- Box Weight: 42 gr / 1.48 oz
- LDPE Bag Weight: 3 gr / 0.1 oz
- Total Weight: 105 gr / 3.7X oz
- Meets ROHS, FCC, and CE EMI requirements

.
Druh IO zariadenia: USB hub alebo switch
Prevedenie: Externé
