Club3D Multiport USB-C 3.1 na 3x HDMI 2.0b + 1 USB 2.0 + USB-C charge (100W) + audio jack female

Novinka
Pridať do obľúbenýchClub3D Multiport USB-C 3.1 na 3x HDMI 2.0b + 1 USB 2.0 + USB-C charge (100W) + audio jack female
Typ príslušenstva:Dokovacie stanice a replikátory.

Kód produktu795127
Part numberCSV-1591
EAN produktu8719214471453

Záruka:24 Měsíc(ů)
Výrobca:Club 3D
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
53 EUR
Vaša cena bez DPH
38.33 EUR
Vaša cena vrátane DPH
46 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack

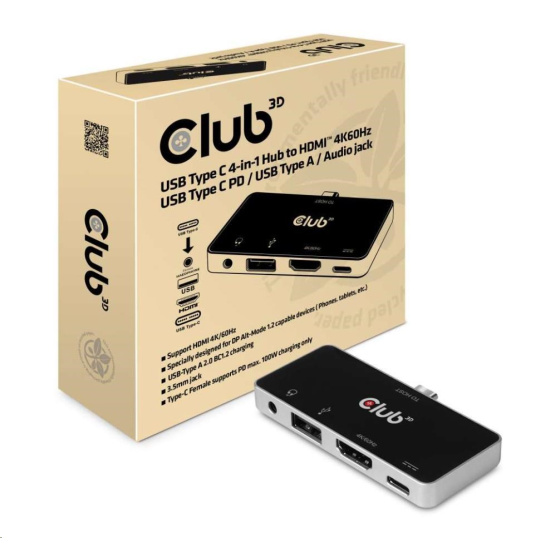

CSV-1591 - The Club 3D Hub is a 4-in-1 USB Type-C hub with HDMI™, USB Type-A 2.0, 3.5mm audio and USB Type-C PD charging, the design perfectly suits all DP Alt-mode capable devices. With this hub, you can enjoy ultra high definition video of your host on big screen, enjoy fantastic music, transmit USB 2.0 data and connect USB Type-C PD Adapter to charge the host.


This hub can work on all USB Type-C and Thunderbolt™ 3 hosts that supports DP Alt mode. When working on Thunderbolt™ 3 host, this product transmits DP signal.




TECHNICAL SPECIFICATIONS































Product Name USB Type C 4-in-1 Hub to HDMI™ 4K60Hz USB Type C PD / USB Type A / Audio jack
Product Series Docking Station
Item code CSV-1591
EAN code 8719214471453
UPC code 841615101634
Features • Upstream:
1x USB Type-C Male (Connection to host) Support DP1.2 Alt mode, with bandwidth max 5.4 Gbps per lane, 4 lanes 21.6Gbps
• Downstream:
1x HDMI™ Female
Support HDMI™ max 4K/60Hz 4:4:4 8bit with 18Gbps Bandwidth
Support 6/8/10/12 bit color depth output
Support output pixel format RGB4:4:4/YCbCr4:4:4/YCbCr4:2:2
Support HDCP 2.2 & HDCP1.4
Support HDR
1x USB Type A 2.0, Max 480Mbps bandwidth
• Support BC 1.2 with max 7.5W(5V@1.5A) downstream charging
• 1x 3.5mm combo audio*
Support 48K/44.1KHz sampling rate Audio output
* Note: Audio can be output from HDMI or 3.5mm audio port, below explanation illustrates the priority of audio output when both HDMI and 3.5mm audio ports are connected.
• When source device is connected to this product prior to sink devices, audio outputs from the port that is connected last.
• When sink devices are connected prior to source device connection, audio outputs from 3.5mm audio port
OS Support All
In the box CSV-1591, 4-in-1 Hub
Quick Install Guide
AVAILABLE INTERFACES
Upstream 1x USB Type C Male
(Host connection)
Downstream 1x HDMI™ 4K60Hz Female for connecting to Monitor
1x USB type A, BC1.2 charging
1x USB Type-C Female, PD Charging only
1x.3.5mm combo audio
Other Info Box size: 10 x 10 x 3 cm
Box size: 3.93 x 3.93 x 1.18 inch
Device size: 7.2 x 3.2 x 0.9 cm
Device size: 2.83 x 1.26 x 0.9 x 0.35 inch
Device Weight: 35 gr / 1.23 oz
LDPE Bag Weight: 5 gr / 0.17 oz
Box Weight: 65 gr / 2.3 oz
Total Weight: 105 gr / 3.7 oz
Meets ROHS, FCC, and CE EMI requirements

.
Typ príslušenstva: Dokovacie stanice a replikátory
Druh IO zariadenia: Video rozbočovač
Prevedenie: Externé
