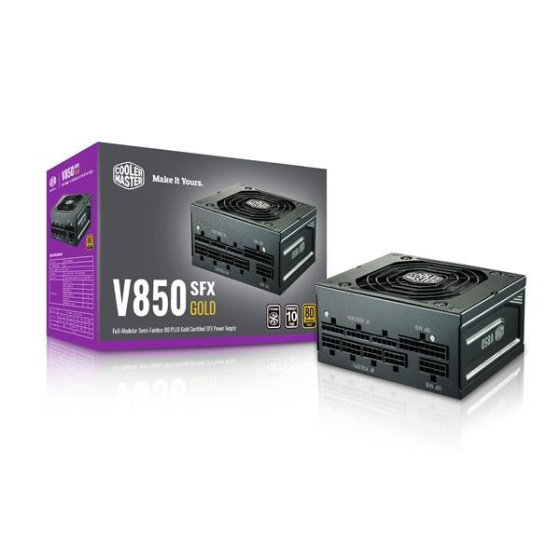

Cooler Master zdroj V850 SFX Gold, 850W
V850 SFX Gold
The V SFX Gold delivers the high quality experience you’ve come to expect from the V series in SFX form factor. Enjoy the same great features with 80 Plus Gold efficiency, full-modular cabling, an FDB fan, 16AWG PCIe high efficiency cables, and a 10 year warranty. But now you can have it in a mini-ITX case. With the V SFX Gold, the V series is now viable for cases ranging from mini-ITX all the way up through E-ATX systems. And with the included bracket this unit is compatible with all of them.
- SFX Form Factor : This unit is compatible with all SFX cases and suitable for mini-ITX system builds.
- SFX-to-ATX Bracket : The included bracket allows users to install this unit securely in traditional ATX cases.
- 80 PLUS Gold Certified : This certification guarantees a typical efficiency of 90% under normal operating conditions.
- Quiet FDB Fan : The 92mm FDB fan delivers effective, quiet, and efficient cooling.
- Full-Modular Cabling : Modular cables reduce clutter, increase airflow, and improve overall efficiency and thermal performance.
- 10 Year Warranty : This unit comes with a standard limited manufacturing warranty of 10 years from the date of purchase.
|ATX Version||V850 SFX Gold|
|ATX Version||SFX 12V Ver. 3.42|
|Input Voltage||90-264 V|
|Input frequency||47-63 Hz|
|Dimensions (L x W x H)||100 x 125 x 63.5 mm|
|Fan Size||92 mm|
|Efficiency||90% Typical Load|
|80 Plus Rating||80 PLUS Gold|
|ERP 2014 Lot 3||Yes|
|Power Good Signal||100-500 ms|
|Hold Up Time||16ms|
|Protections||OVP / OPP / SCP / OCP / UVP / OTP / Surge and Inrush Protection|
|Regulatory||TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, RCM, KCC, CB|
|ATX 24-pin Connectors||1 (300 mm)|
|EPS 4+4 pin Connectors||1 (450 mm)|
|EPS 8-pin Connector||1 (450 mm)|
|SATA Connectors||8 (400 + 120 mm)|
|Peripheral 4-pin Connectors||4 (100 + 115 + 115 + 115 mm)|
|PCI-E 6+2 pin Connectors||4 (100 + 115 + 115 + 115 mm)|
|Series||V Gold Series, V SFX Gold Series|
