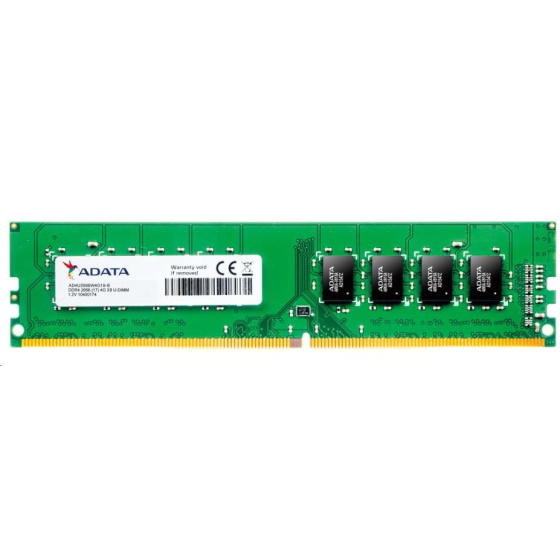

DIMM DDR4 4GB 2666MHz CL19 ADATA Premier, 512x8, Retail
ADATA Premier DDR4 2666 unbuffered-DIMM memory is the latest upgrade solution that supports Intel's newest platforms for faster data transfer and enhanced power efficiency. Utilizing a 288-pin design, operating voltage has been reduced from 1.5V on DDR3 to 1.2V, which not only helps save power by 20%, but also boosts transfer bandwidth speed to 21.3GB/s. Every chip in ADATA memory modules meets strict JEDEC and RoHS standards, ensuring compatibility, stability, and environmentally friendly products.
Lightning speed PCIe Gen3x4
- Complies with JEDEC standards
- RoHS compliant
- Supports Intel Skylake-X and Kaby Lake-X CPU
All ADATA memory modules are produced and tested using a rigorous quality control process for rapid computing and stable operation. In addition, ADATA memory modules provide customers a lifetime warranty for maximum assurance with excellent service.
|Form Factor||Standard 1.23" height|
|Power supply||VDD and VDDQ = 1.2V±0.06V|
|DRAM activation power supply||VPP= 2.5V (+0.25V / -0.125V)|
|DRAM spec/VCC||DDR4 STD 1.2V|
|Operating temperature||0 - 85°C|
