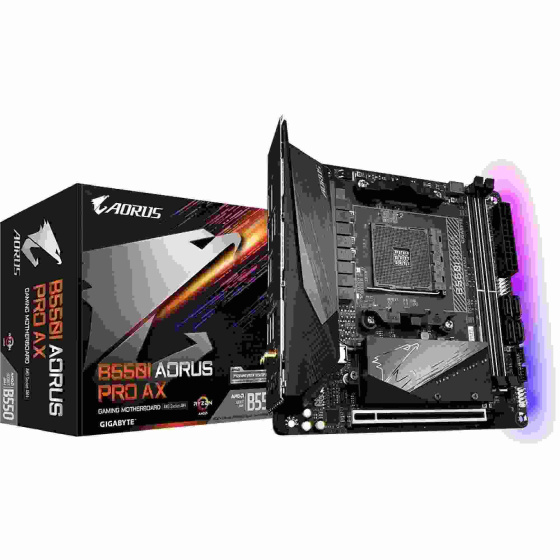

GIGABYTE MB Sc AM4 B550 I AORUS PRO AX, AMD B550I, 2 x DDR4, Wi-Fi, HDMI

1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
   3rd Gen AMD Ryzen™ Processors:


2. Support for DDR4 4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules


3. New Generation AMD Ryzen™ with Radeon™ Graphics processors:


4. Support for DDR4 5300(O.C.)/5200(O.C.)/5000(O.C.)/4866(O.C.)/4600(O.C.)/4400(O.C.)/4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules
   Dual channel memory architecture


5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules


6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules


7. Support for Extreme Memory Profile (XMP) memory modules
   (Please refer "Memory Support List" for more information.)

1. Realtek® ALC1220-VB codec
   * The back panel line out jack supports DSD audio.


2. High Definition Audio


3. 2/4/5.1/7.1-channel
   * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

1. Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Intel® Wi-Fi 6 AX200

1. WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band


2. BLUETOOTH 5


3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   * Actual data rate may vary depending on environment and equipment.

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode


2. New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode

Integrated in the New Generation AMD Ryzen™ with Radeon™ Graphics processors:

1. 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz
   * Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.


2. 2 x HDMI ports, supporting a maximum resolution of 4096x2160@60 Hz
   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for up to 3 displays at the same time
Maximum shared memory of 16 GB

1. 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280 SSDs:
   - 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
   - New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs


2. 1 x M.2 connector (M2B_SB) on the back of the motherboard, integrated in the Chipset, supporting Socket 3, M key, type 2260/2280 SSDs:
   - Supporting SATA and PCIe 4.0 x4/x2 SSDs


3. 4 x SATA 6Gb/s connectors, integrated in the Chipset:
   - Support for RAID 0, RAID 1, and RAID 10

CPU:

1. 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support


2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel


3. 2 x USB 3.2 Gen 1 ports available through the internal USB header


4. 2 x USB 2.0/1.1 ports available through the internal USB header

1. 1 x 24-pin ATX main power connector


2. 1 x 8-pin ATX 12V power connector


3. 1 x CPU fan header


4. 2 x system fan headers


5. 1 x addressable LED strip header


6. 1 x RGB LED strip header


7. 4 x SATA 6Gb/s connectors


8. 2 x M.2 Socket 3 connectors


9. 1 x front panel header


10. 1 x front panel audio header


11. 1 x speaker header


12. 1 x USB 3.2 Gen 1 header


13. 1 x USB 2.0/1.1 header


14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)


15. 1 x Clear CMOS jumper

1. 1 x DisplayPort


2. 2 x HDMI ports


3. 1 x USB 3.2 Gen 2 Type-A port (red)


4. 4 x USB 3.2 Gen 1 ports


5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support


6. 1 x Q-Flash Plus button


7. 1 x RJ-45 port


8. 2 x SMA antenna connectors (2T2R)


9. 3 x audio jacks

1. Voltage detection


2. Temperature detection


3. Fan speed detection


4. Overheating warning


5. Fan fail warning


6. Fan speed control
   * Whether the fan speed control function is supported will depend on the cooler you install.

1. 1 x 256 Mbit flash


2. Use of licensed AMI UEFI BIOS


3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

1. Support for APP Center
   * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
   @BIOS
   EasyTune
   Fast Boot
   Game Boost
   ON/OFF Charge
   RGB Fusion
   Smart Backup
   System Information Viewer


2. Support for Q-Flash Plus


3. Support for Q-Flash


4. Support for Xpress Install

1. Norton® Internet Security (OEM version)


2. XSplit Gamecaster + Broadcaster (12 months license)


3. Realtek® 8125 Gaming LAN Bandwidth Control Utility

1. Support for Windows 10 64-bit

1. Mini-ITX Form Factor; 17.0cm x 17.0cm

1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.


2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
