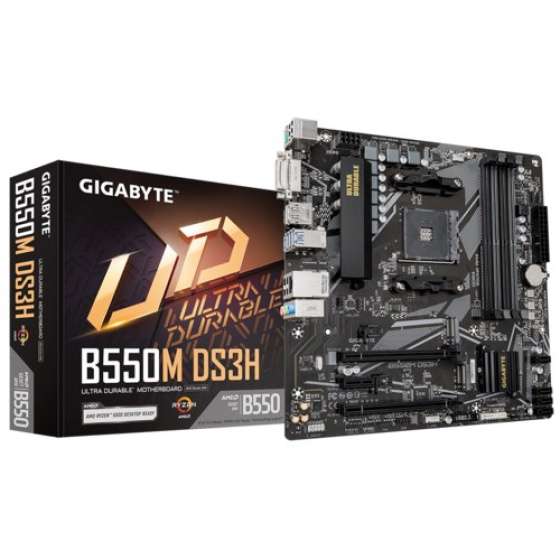

GIGABYTE MB Sc AM4 B550M DS3H, AMD B550M, 4 x DDR4, HDMI

Novinka
Pridať do obľúbenýchGIGABYTE MB Sc AM4 B550M DS3H, AMD B550M, 4 x DDR4, HDMI
Socket (pätica):Socket AM4; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Typ pamäťového modulu:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Podpora RAID:1, 10; Rozhranie:HDMI, USB 2.0, USB 3.2, 3.5mm Jack, LAN; Ďalšie rozhranie:M.2.

Kód produktu524056
Part numberB550M DS3H
EAN produktu4719331809416

Záruka:36 Měsíc(ů)
Výrobca:Gigabyte
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
103 EUR
Vaša cena bez DPH
75.00 EUR
Vaša cena vrátane DPH
90 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

B550M DS3H (rev. 1.0)


AMD B550 Ultra Durable Motherboard with Pure Digital VRM Solution, PCIe 4.0 x16 Slot, Dual PCIe 4.0/3.0 M.2 Connectors, GIGABYTE 8118 Gaming LAN, Smart Fan 5 with FAN STOP, RGB FUSION 2.0, Q-Flash Plus



  • Supports 3rd Gen AMD Ryzen™ Processors

  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs

  • Ultra Durable™ PCIe 4.0 Ready x16 Slot

  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors

  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality

  • GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management

  • Rear HDMI & DVI Support

  • RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips

  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP

  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

  • Anti-Sulfur Resistors Design




TECHNICAL SPECIFICATIONS













































CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)
Chipset AMD B550
Memory

  1. 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

  2. Support for DDR4 4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules

  3. Dual channel memory architecture

  4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

  5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

  6. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)


Audio

  1. Realtek® ALC887 codec

  2. High Definition Audio

  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.


LAN

  1. Realtek® GbE LAN chip (1000 Mbit/100 Mbit)


Wireless Communication module

  1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

  2. BLUETOOTH 5.0

  3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.


Expansion Slots

x PCI Express x16 slot (PCIEX16), integrated in the CPU:



  1. 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode

  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:



  1. Supporting PCIe 3.0 x4 mode


1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:



  1. Supporting PCIe 3.0 x1 mode


Onboard Graphics

Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:



  1. 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    * The DVI-D port does not support D-Sub connection by adapter.

  2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    * Support for HDMI 2.1 version, HDCP 2.3, and HDR.


Maximum shared memory of 16 GB


Storage Interface

x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:



  1. 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs

  2. 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs


1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:



  1. Supporting SATA and PCIe 3.0 x2 SSDs


4 x SATA 6Gb/s connectors, integrated in the Chipset:



  1. Support for RAID 0, RAID 1, and RAID 10


USB

CPU:



  1. 4 x USB 3.2 Gen 1 ports on the back panel


Chipset:



  1. 2 x USB 3.2 Gen 1 ports available through the internal USB header

  2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)


Internal I/O Connectors

  1. 1 x 24-pin ATX main power connector

  2. 1 x 8-pin ATX 12V power connector

  3. 1 x CPU fan header

  4. 2 x system fan headers

  5. 2 x addressable LED strip headers

  6. 2 x RGB LED strip headers

  7. 1 x CPU cooler LED strip/RGB LED strip header

  8. 2 x M.2 Socket 3 connectors

  9. 4 x SATA 6Gb/s connectors

  10. 1 x front panel header

  11. 1 x front panel audio header

  12. 1 x USB 3.2 Gen 1 header

  13. 1 x USB 2.0/1.1 header

  14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

  15. 1 x serial port header

  16. 1 x Clear CMOS jumper

  17. 1 x Q-Flash Plus button


Back Panel Connectors

  1. 1 x PS/2 keyboard/mouse port

  2. 1 x DVI-D port

  3. 1 x HDMI port

  4. 4 x USB 3.2 Gen 1 ports

  5. 4 x USB 2.0/1.1 ports

  6. 1 x RJ-45 port

  7. 3 x audio jacks


I/O Controller iTE® I/O Controller Chip
H/W Monitoring

  1. Voltage detection

  2. Temperature detection

  3. Fan speed detection

  4. Overheating warning

  5. Fan fail warning

  6. Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.


BIOS

  1. 1 x 256 Mbit flash

  2. Use of licensed AMI UEFI BIOS

  3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

  1. Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    @BIOS
    EasyTune
    Fast Boot
    Game Boost
    ON/OFF Charge
    RGB Fusion
    Smart Backup
    System Information Viewer

  2. Support for Q-Flash Plus

  3. Support for Q-Flash

  4. Support for Xpress Install


Bundled Software

  1. Norton® Internet Security (OEM version)

  2. Realtek® 8118 Gaming LAN Bandwidth Control Utility


Operating System

  1. Support for Windows 10 64-bit


Form Factor

  1. Micro ATX Form Factor; 24.4cm x 24.4cm


Remark

  1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.

  2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.



.
Typ pamäťového modulu: DDR4
Rozhranie: HDMI
Socket (pätica): Socket AM4
Formát: micro ATX
Integrovaná grafická karta: Ano (CPU)
Chipset: AMD
PCI express 16x: Více než 1
Integrovaná LAN karta: 1
Podpora RAID: 10
Ďalšie rozhranie: M.2
Aktuálna cena produktu je90EUR  s dph
