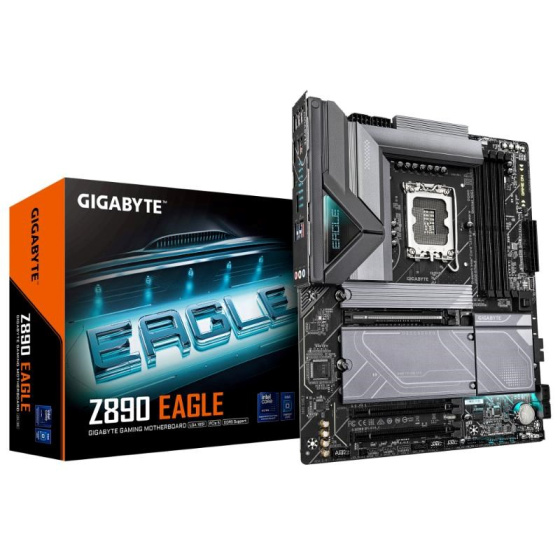

GIGABYTE MB Sc LGA1851 Z890 EAGLE, Intel Z890, 4xDDR5, 1xHDMI, 1xDP

doprava zadarmo
Pridať do obľúbenýchGIGABYTE MB Sc LGA1851 Z890 EAGLE, Intel Z890, 4xDDR5, 1xHDMI, 1xDP
Formát:ATX; Chipset:Intel Z890; Socket (pätica):Socket 1851; Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 5, 10; PCI express 16x:3.

Kód produktu1706028
Part numberZ890 EAGLE
EAN produktu4719331865214

Záruka:36 Měsíc(ů)
Výrobca:Gigabyte
Skladová dostupnosť:Skladom
Vaša cena bez DPH
213.97 EUR
Vaša cena vrátane DPH
258.90 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

GIGABYTE Z890 EAGLE

  • Supports Intel® Core™ Ultra processors (Series 2)
  • Digital twin 14+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • AI Perfdrive : Provides optimal and customized BIOS preset profile for users
  • Premium Compatibility : 4*DDR5 with XMP Memory Module Support
  • EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click : M.2 heatsinks with screwless design
  • Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
  • New Power Monitor in  HWinfo for real-time monitoring on CPU power phases
  • Ultra-Fast Storage : 4*M.2 slots, including 1* PCIe 5.0 x4
  • PCIe UD Slot X : PCIe 5.0 x16 slot with 10X strength for graphics card
  • Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking : 2.5GbE LAN
  • Extended Connectivity : USB4 Type-C with DP-Alt, DisplayPort


CPU

LGA1851 socket: Support for Intel® Core™ Ultra Processors
(Go to GIGABYTE's website for the latest CPU support list.)
L3 cache varies with CPU


Chipset

Intel® Z890 Express Chipset


Memory

Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)


Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:
- 1 x USB4® USB Type-C® port, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 2.1 version
(Graphics specifications may vary depending on CPU support.)


Audio

Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.


LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)


Expansion Slots

CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
- 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/2)


Storage Interface

CPU:
- 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280
PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280
PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
Chipset:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices


USB

CPU:
- 1 x USB4® USB Type-C® port on the back panel
Chipset:
- 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
- 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hubs:
- 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)


Internal I/O Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
1 x system fan/water cooling pump header
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt™ add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
1 x power button
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper


Back Panel Connectors

1 x USB4® USB Type-C® port (DisplayPort (Note))
2 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x DisplayPort (Note)
2 x antenna connectors (2T2R)
1 x RJ-45 port
3 x audio jacks
(Note) Actual support may vary by CPU.


I/O Controller

iTE® I/O Controller Chip


H/W Monitoring

Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.


BIOS

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0


Unique Features

Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Support for Q-Flash
Support for Q-Flash Plus
Support for Smart Backup


Bundled Software

Norton® Internet Security (OEM version)
LAN bandwidth management software


Operating System

Support for Windows 11 64-bit


Form Factor

ATX Form Factor; 30.5cm x 24.4cm

.
Technologie paměti RAM: DDR5
Socket (patice): Socket 1851
Formát základní desky: ATX
Chipset: Intel Z890
PCI Express x16: 3
Podpora RAID: 1
Podpora RAID: 10
Podpora RAID: 0
Podpora RAID: 5
COM port: Ne
LPT port: Ne
3.5mm Jack: Ano
Bezdrátové připojení: bez
Pro procesory: Intel
Počet paměťových slotů: 4
DisplayPort: 1
TPM: Ano
USB 2: 8
USB 3: 7
PCI: 0
M.2 slot: 4
SATA 3: 4
VGA: 0
DVI: 0
HDMI: 1
Led Header: Ano
PCI Express x1: 0
USB C: 2
LAN: 2.5Gbit/s
DisplayPort Type-C: 0
Počet Thunderbolt: 0
PCI Express x8: 0
