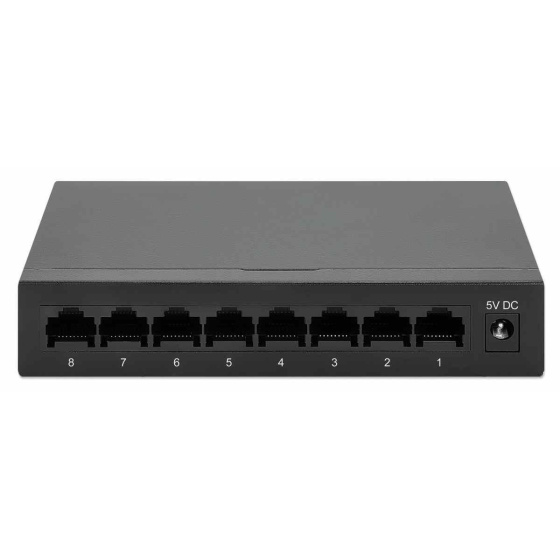

Intellinet 8-Port Gigabit Ethernet Switch, kovový

8-Port Gigabit Ethernet Switch
Metal
Color: Black

•10/100/1000 auto-sensing Auto MDI-X ports — automatically detect optimal network speeds
•High performance, half and full duplex, with zero packet loss
•Full flow control support provides optimum performance
•Auto-learning of network configuration
•Supports up to 8192 MAC address entries
•128 kBytes buffer memory
•Supports jumbo frames up to 9 kBytes
•Store and forward switching architecture
•Non-blocking wire-speed forwarding and filtering

Standards
•IEEE 802.3 (10Base-T Ethernet)
•IEEE 802.3u (100Base-TX Fast Ethernet)
•IEEE 802.3ab (Gigabit Ethernet)
•IEEE 802.3x (Flow Control and Backpressure)

General
•ANSI/IEEE 802.3 NWay auto-negotiation
•Non-blocking, store and forward switching architecture
•Backpressure flow control for half duplex mode on 10/100 Mbps ports
•Connectors: 8 10/100/1000 Mbps RJ45 ports
•Switch architecture: store and forward switch technology
•Network cables:
- 10Base-T: Cat3, 4, 5 UTP/STP
- 100Base-TX: Cat5 UTP/STP
- 1000Base-T: Cat5e UTP/STP
•Certifications: FCC Class A, CE Class A

Performance
•Filter/forward rate
- 10Base-T: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
- 1000Base-T: 1,488,000 pps (packets per second)
•MAC address table: 8K
•Jumbo frame support: 9K

LEDs
•Power
•LINK/ACT for each 10/100/1000 Mbps port

Power
•DC input: 5 V, 1 A

Environmental
•Plastic housing, desktop size
•Dimensions: 155 (W) x 85 (L) x 26 (H) mm (6.1 (W) x 3.3 (L) x 1.0 (H) in.)
•Weight: 0.6 kg (1.3 lbs.)
•Operating temperature: 0 – 40°C (32 – 104°F)
•Operating humidity: 10 – 90% RH, non-condensing

Package Contents
•8-Port Gigabit Ethernet Switch
•External power adapter.
