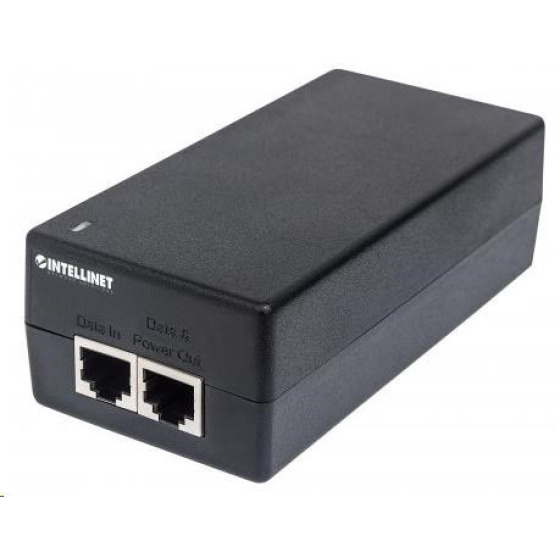

Intellinet Gigabit Ultra PoE+ Injector, 1x 60W port, IEEE 802.3bt, IEEE 802.3at/af

Standards
•IEEE 802.3af (Power over Ethernet)

•IEEE 802.3at (High-Power PoE+ Power over Ethernet)

•IEEE 802.3bt (4 Pair Power over Ethernet, Level 3, 55 w)

•IEEE 802.3 (10Base-T Ethernet)

•IEEE 802.3ab (Gigabit Ethernet)

•IEEE 802.3u (100Base-TX Fast Ethernet)

•IEEE 802.3x (flow control for full duplex mode)

General

•Media support:
- 100Base-TX Cat5 UTP/STP RJ45, 8 pin
- 1000Base-T Cat5e UTP/STP RJ45, 8 pin

•Ports:
- One RJ45 10/100/1000 Mbps input port
- One RJ45 10/100/1000 Mbps data and power output port

•Protection functions:
- Short circuit protection
- Over current protection
- Over voltage protection

•PoE Pinout
- Pin 1: DC (-)
- Pin 2: DC (-)
- Pin 3: DC (+)
- Pin 4: DC (+)
- Pin 5: DC (+)
- Pin 6: DC (+)
- Pin 7: DC (-)
- Pin 8: DC (-)

•Certifications: FCC Class B, CE

LED

•Dual-color power and PoE LED

Power

•Input: 100 – 240 V AC, 50 – 60 Hz

•Output: 48 V DC, 1.25 A

•Power consumption: 60 watts (maximum)

Environmental

•Plastic housing

•Dimensions: 123 (L) x 61 (W) x 40 (H) [mm] / 4.84 (L) x 2.4 (W) x 1.57 (H) [in]

•Weight: 0.29 kg (0.64 lbs.)

•Operating temperature: 0 – 40°C (32 – 104°F)

•Operating humidity: 10 – 90% RH, non-condensing

•Storage temperature: -20 – 80°C (-4 – 176°F)

Package Contents

•Gigabit Ultra PoE Injector

•Power cable.
