Manhattan HDMI rozdělovač, 1080p 4-Port HDMI Extending Splitter Transmitter, černá

Pridať do obľúbenýchManhattan HDMI rozdělovač, 1080p 4-Port HDMI Extending Splitter Transmitter, černá
Špecifikácia kábla / redukcie:Adaptér, Redukce.

Kód produktu254925
Part number207829
EAN produktu766623207829

Záruka:24 Měsíc(ů)
Výrobca:Manhattan
Skladová dostupnosť:Na dotaz
Bežná cena
67 EUR
Vaša cena bez DPH
48.33 EUR
Vaša cena vrátane DPH
58 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

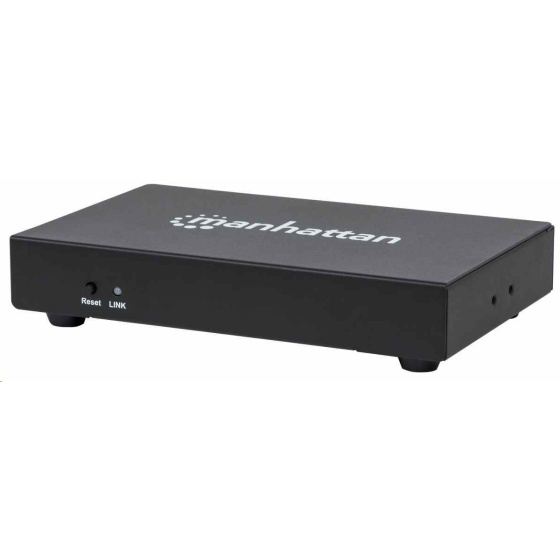

1080p 4-Port HDMI Extending Splitter Transmitter


Splits One Source to Four Outputs; Extends Signal up to 50 m (165 ft.), Single Ethernet Cable per Receiver, Video Bandwidth Amplifier, Black



  • Replicates and extends a High-Definition (HD) digital audio/video signal to up to four HD 1080p HDMI Extending Splitter Receivers (207836 ) at distances up to 50 m (165 ft.) using Ethernet cable

  • Supports 1080p resolution as well as HD 3D video and Deep Color (24-bits/pixel)

  • Integrated video bandwidth amplifier

  • Supports video-amplifier bandwidth of up to 1.65 Gbps (for 1080p)

  • Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio

  • A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications

  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more

  • Fully HDCP compliant

  • This transmitting (Tx) unit requires at least one receiving (Rx) unit (207836) but connects up to four

  • AC powered with Plug and Play installation; no special setup or remote required

  • Plug-and-play installation

  • Gold-plated contacts for corrosion-free connections

  • Three-year warranty




TECHNICAL SPECIFICATIONS





























































Standards and Certifications - HDCP 1.4a
- CE
- FCC
- RoHS2
Package Contents - 1080p 4-Port HDMI Extending Splitter Transmitter
- Power adapter
- Wallmounting brackets
- Quick Instruction Guide
General
Source-to-splitter (TX) range up to 15 m (49 ft.)
Cat6 cable - 1080p at 50 m (165 ft.)
- 720p at 60 m (200 ft.)
- 480p at 80 m (264 ft.)
Receiver(RX)-to-display range up to 15 m (49 ft.)
Power 12 VDC @ 1 A ; AC power adapter, 0.9 m (2.9 ft.)
Connections
Transmitter One HDMI female, 19-pin (input)
Four Ethernet female, RJ45 (output)
One 5 VDC female, power (input)
Receiver (sold seperately) One HDMI female, 19-pin (output)
One Ethernet female, RJ45 (input)
One 5 VDC female, power (input)
Signal Input/Output
Input video signal 400 - 600 mV
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 1.65 Gbps and 1080p resolution
Output video HDMI 1.3, HDCP 1.4a
Frequency 1.65 Gbps / 165 MHz
Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p
Physical
LED indicators power and port connection
Power adapter 12 VDC / 1 A; 0.9 m (2.9 ft.)
Dimensions 162 x 100 x 25 mm (6.4 x 3.9 x 1 in.)
Weight 0.43 kg (0.95 lbs.)
Housing metal
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 0 – 96%

.
Špecifikácia kábla / redukcie: Adaptér, Redukce
