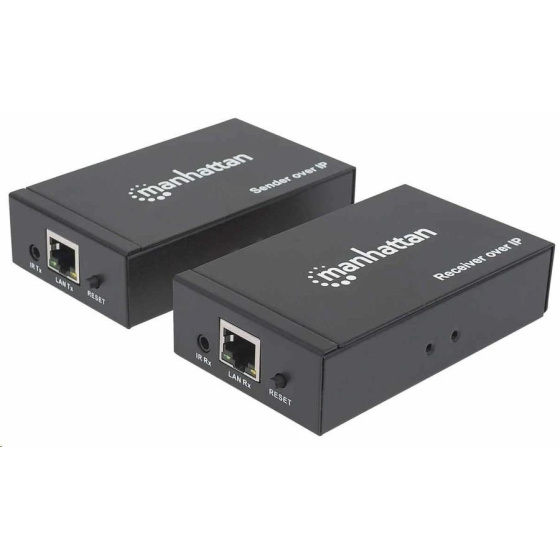

Manhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černá

Pridať do obľúbenýchManhattan HDMI rozdělovač, Extends 1080p Signal up to 120m with a Network Switch and Single Ethernet Cable, černá
Špecifikácia kábla / redukcie:Adaptér, Redukce.

Kód produktu254960
Part number207959
EAN produktu766623207959

Záruka:24 Měsíc(ů)
Výrobca:Manhattan
Skladová dostupnosť:Na dotaz
Bežná cena
95 EUR
Vaša cena bez DPH
70.00 EUR
Vaša cena vrátane DPH
84 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

1080p HDMI over IP Extender Splitter Kit



  • Extends an HDMI signal from an HDMI source to a High-Definition (HD) monitor or projector up to 120 m (396 ft.) using an unmanaged network switch and an Ethernet cable

  • Works in conjunction with existing network infrastructures via TCP/IP

  • Supports three connection configurations: direct connect from transmitter (Tx) unit to receiver (Rx) unit; Tx unit to network switch to Rx unit; Tx unit to network switch to many Rx units

  • Can connect up to 250 displays to network with additional Rx units

  • Supports video amplifier bandwidth up to 165 MHz and 1.65 Gbps per channel (4.95 Gbps total) for 1080p displays

  • Supports lossless LPCM 8 channel uncompressed audio formatting and 5.1 surround sound

  • Offers IR Tx and Rx cables that allow for convenient remote control of HD signal source

  • Fully HDCP compliant to protect high-definition content transmission and ensure quality reception

  • Plug and play — requires no installation or configuration

  • A flexible Audio/Video solution for conference rooms (when sharing ideas and data), digital signage (extending the distances between displays) and other applications

  • Compatible with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more

  • Gold-plated contacts for corrosion-free connections

  • Three-year warranty



TECHNICAL SPECIFICATIONS























































Standards and Certifications HDCP 1.2
TCP/IP
DVI 1.0
CTS 1.2
CE
FCC
RoHS2
Package Contents 1080p HDMI over IP Extender Splitter Kit (receiver & transmitter modules)
Power adapter (two units)
IR blaster and receiver (one unit)
Wall mounting hardware (two units each)
Quick Instruction Guide
General
Source-to-switch range up to 100 m (330 ft.)
Switch-to-display range up to 100 m (330 ft.)
Combined distance source-to-switch-to-display 120 m (396 ft.)
Cat6 cable 1080p at 120 m (396 ft.)
720p at 160 m (528 ft.)
480p at 200 m (660 ft.)
1080p at 100 m (330 ft.)
720p at 140 m (462 ft.)
480p at 180 m (594 ft.)
Power 5 VDC / 2 A (cable: 1.4 m [4.5 ft.])
Connections
Connections One HDMI female, 19-pin (transmitter/receiver)
One RJ45 female (transmitter/receiver)
One 5 VDC power female, OD 5.5 mm / ID 2.1 mm (transmitter/receiver)
Two 3.5 mm IR female (transmitter/receiver)
Signal Input/Output
Input video signal 0.5 – 1.0 V p-p
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 1.65 Gbps and 1080p resolution
Output video HDCP 1.2, DVI 1.0
Frequency 1.65 Gbps / 165 MHz
Supported Video Resolutions
SDTV/HDTV/UHDTV 480i/576i/480p/576p/720p/1080i/1080p
Physical
Dimensions 100 x 59 x 25 mm (3.9 x 2.3 x 1 in.)
Weight 0.66 kg (1.45 lbs.)
Housing metal
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 20 – 96%

.
Špecifikácia kábla / redukcie: Adaptér, Redukce
