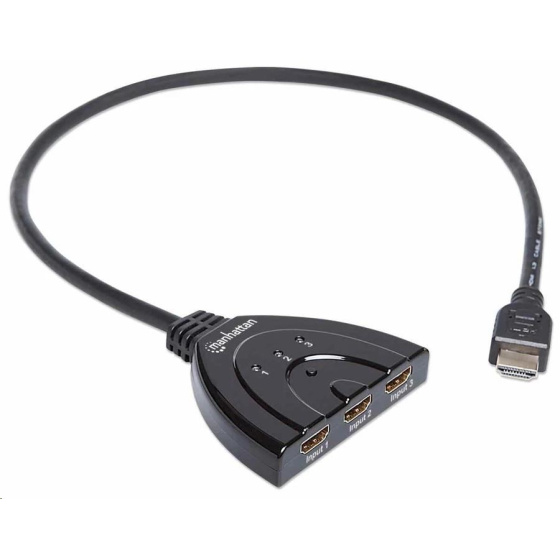

Manhattan HDMI přepínač, 3-Port HDMI Switch, 1080p, černá

Pridať do obľúbenýchManhattan HDMI přepínač, 3-Port HDMI Switch, 1080p, černá
Druh IO zariadenia:HDMI hub nebo switch; Prevedenie:Externé.

Kód produktu254975
Part number207843
EAN produktu766623207843

Záruka:24 Měsíc(ů)
Výrobca:Manhattan
Skladová dostupnosť:Na dotaz
Bežná cena
15 EUR
Vaša cena bez DPH
10.00 EUR
Vaša cena vrátane DPH
12 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

1080p 3-Port HDMI Switch

Easily connect multiple HDMI sources to a single display.
The Manhattan 1080p 3-Port HDMI Switch allows media enthusiasts to connect three HDMI video sources — including gaming consoles, Blu-ray players, satellite receivers, digital recorders, set-top boxes and other devices — to a single high-definition display.
Flexible Solution for Many HD Applications
With the increased number of high-definition media devices, the Manhattan 1080p 3-Port HDMI Switch expands the connectivity options for your HDTV, flat-panel display monitor or video projector. The switch automatically detects and selects the active HDMI source and routes the signal to your display. Additionally, it offers a switching button so you can manually select sources when more than one HD video source is on at the same time.
Best Possible Image Quality
Full compliance with HDMI and HDCP 1.0/1.1 ensures the Manhattan 1080p 3-Port HDMI Switch provides nothing short of high-quality performance and reliability. It delivers full 1080p resolution images and supports 3D video as well as LPCM, DTS and Dolby TrueHD audio.

  • Connects up to three HD video sources to a single HDMI display
  • Supports automatic switching (when an HD signal is detected) and manual switching (between sources with the push of a button)
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers and more
  • HDCP compliant
  • Supports LPCM, DTS Digital, DTS-HD Master Audio and Dolby TrueHD audio
  • Supports 3D video and 8-bits (24-bits total) Deep Color
  • Supports video amplifier bandwidth up to 2.5 Gbps for 1080p display
  • Plug and play: no special setup, power or remote required
  • Integrated HDMI cable
  • Gold-plated contacts for corrosion-free connections
  • Three-year warranty

TECHNICAL SPECIFICATIONS

Standards and Certifications HDMI 1.3b
HDCP 1.0 / 1.1
CE
FCC
RoHS2
Package Contents 1080p 3-Port HDMI Switch
Quick Instruction Guide
Connections One HDMI male, 19-pin (output)
Three HDMI female, 19-pin (input)
General
Source-to-switch range up to 15 m (49 ft.)
Signal Input/Output
Input video signal 400 – 600 mV
Input DDC signal 5 V p-p (TTL)
Maximum single-link range 2.5 Gbps and 1080p resolution
Output video HDMI 1.3b, HDCP 1.0 / 1.1
Frequency 2.5 Gbps / 250 MHz
Video Resolutions
DTV/HDTV 480i/480p/576i/576p/720p/1080i/1080p
Physical
Dimensions 82 x 61 x 15 mm (3.2 x 2.4 x 0.6 in.)
Cable length 58 cm (23 in.)
Weight 91 g (3.2 oz.)
Operating Environment
Operation Temperature 0 – 40°C (32 – 104°F)
Storage Temperature -20 – 60°C (-4 – 140°F)
Humidity (noncondensing) 0 – 96%

.
Druh IO zariadenia: HDMI hub nebo switch
Prevedenie: Externé
