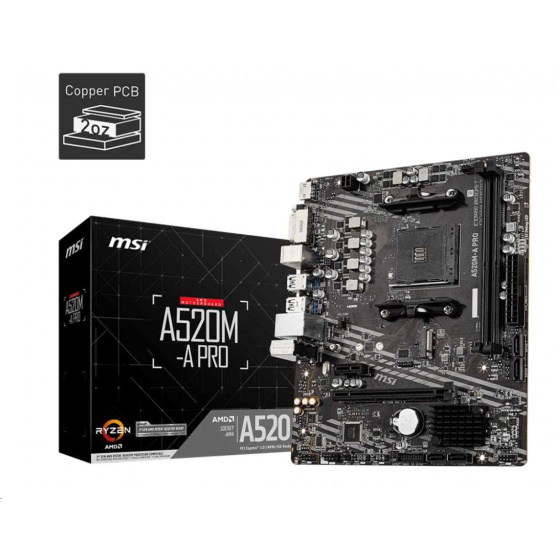

MSI MB Sc AM4 A520M-A PRO, AMD A520, VGA, 2xDDR4, m-ATX

Novinka
Pridať do obľúbenýchMSI MB Sc AM4 A520M-A PRO, AMD A520, VGA, 2xDDR4, m-ATX
Socket (pätica):Socket AM4; Formát:micro ATX; Integrovaná grafická karta:Ano (CPU); Chipset:AMD; Typ pamäťového modulu:DDR4; PCI express 16x:1; Integrovaná LAN karta:1; Podpora RAID:1, 10; Rozhranie:HDMI, USB 2.0, USB 3.2, 3.5mm Jack, DVI.

Kód produktu2647974
Part numberA520M-A PRO
EAN produktu4719072749927

Záruka:36 Měsíc(ů)
Výrobca:MSI
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
86 EUR
Vaša cena bez DPH
54.17 EUR
Vaša cena vrátane DPH
65 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

A520M-A PRO



  • Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors

  • Supports DDR4 Memory, up to 4600(OC) MHz

  • Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs

  • Core Boost: With premium layout and digital power design to support more cores and provide better performance.

  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.

  • 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.

  • Audio Boost: Reward your ears with studio grade sound quality

  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.




TECHNICAL SPECIFICATIONS









































Socket AM4
CPU Support Support 3rd Gen AMD Ryzen™ Desktop Processors and AMD Ryzen™ 4000 G-Series Desktop Processors
Chipset AMD® A520 Chipset
Memory

  • 2x DDR4 memory slots, support up to 64GB 1
    - Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    - Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400/ 4600+ MHz by A-XMP OC MODE
    - 1DPC 1R max speed 4600 MHz
    - 1DPC 2R max speed 3866 MHz

  • Dual channel memory architecture

  • Supports non-ECC UDIMM memory

  • Supports ECC UDIMM memory (non-ECC mode)

  • Supports un-buffered memory


Expansion Slot

  • 1x PCIe x16 slot

  • 1x PCIe 3.0 x1 slots


Onboard Graphics

  • 1x HDMI 2.1 port, supports a maximum resolution of 4096x2160 @60Hz

  • 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1

  • Maximum shared memory of 16 GB


Storage

AMD A520 Chipset



  • 4x SATA 6Gb/s ports

  • 1x M.2 slot (Key M) (from AMD Processor)
    - Supports PCIe 3.0
    - Supports SATA 6Gb/s
    - Supports 2242/ 2260/ 2280 storage devices


RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

AMD A520 Chipset



  • 2x USB 3.2 Gen 1 5Gbps ports are available through the internal USB 3.2 Gen 1 5Gbps connector

  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)


AMD Processor



  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel


AUDIO

Realtek® ALC892 Codec



  • 7.1-Channel High Definition Audio


LAN

  • 1x Realtek® RTL8111H Gigabit LAN controller


Internal Connectors

  • 1x 24-pin ATX main power connector

  • 1x 4-pin ATX 12V power connector

  • 4x SATA 6Gb/s connectors

  • 1x M.2 slots (M-Key)

  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

  • 1x 4-pin CPU fan connector

  • 1x 4-pin system fan connectors

  • 1x Front panel audio connector

  • 2x System panel connectors

  • 1x Chassis Intrusion connector

  • 1xTPM module connector

  • 1x Clear CMOS jumper


Back Panel Ports

  • LAN port

  • HDMI

  • DVI-D

  • Keyboard / Mouse

  • USB 3.2 Gen 1 5Gbps Type-A

  • USB 3.2 Gen 1 5Gbps Type-A

  • USB 2.0 Ports

  • Audio Connectors


Dimensions

  • M-ATX Form Factor

  • 9.3 in. x 7.9 in. (23.6 cm x 20 cm)


Mounting

  • 8 mounting holes


Box Content

  • A520M-A Pro

  • Quick Installation Guide

  • MSI Case Badge

  • 2x SATA Cables

  • Product Registration Card

  • I/O Shielding

  • Driver DVD


Form Factor m-ATX
Operating System Support for Windows® 10 64-bit

.
Typ pamäťového modulu: DDR4
Rozhranie: 3.5mm Jack
Socket (pätica): Socket AM4
Formát: micro ATX
Integrovaná grafická karta: Ano (CPU)
Chipset: AMD
PCI express 16x: 1
Integrovaná LAN karta: 1
Podpora RAID: 10
