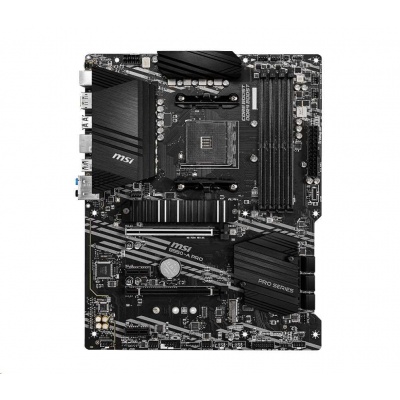

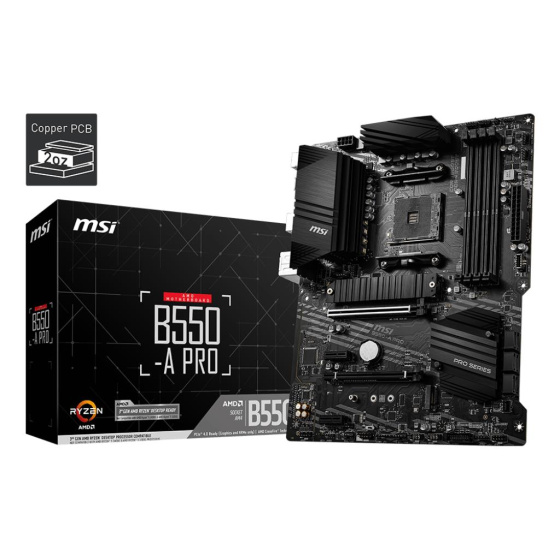

MSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATX

Novinka
Pridať do obľúbenýchMSI MB Sc AM4 B550-A PRO, AMD B550, 4xDDR4, VGA, ATX
Formát:ATX; Socket (pätica):Socket AM4; Chipset:AMD; Integrovaná grafická karta:Ano (CPU); Typ pamäťového modulu:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Rozhranie:HDMI, USB 2.0, USB 3.2, 3.5mm Jack, LAN, DisplayPort, USB Type-C.

Kód produktu2647960
Part numberB550-A PRO
EAN produktu4719072733667

Záruka:36 Měsíc(ů)
Výrobca:MSI
Skladová dostupnosť:Na dotaz
Bežná cena
177 EUR
Vaša cena bez DPH
125.00 EUR
Vaša cena vrátane DPH
150 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

B550-A PRO

TECHNICAL SPECIFICATIONS

CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update.
Chipset AMD B550 Chipset
Memory
  • 4x DDR4 memory slots, support up to 128GB 1
  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/
  • 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
  • 1DPC 1R Max speed 4800 MHz
  • 1DPC 2R max speed 3866 MHZ
  • 2DPC 1R max speed 4000 MHZ
  • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  • Supports un-buffered memory

Please refer www.msi.com for more information on compatible memory.

Slots
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
    The supported specification depends on installed processor.When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.
Multi-GPU
  • Supports 2-Way AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz 1
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 2048 MB
    Available for the processor with integrated graphics.
Storage

AMD B550 Chipset

  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
  • M2_1 slot (from AMD Processor)
  • Supports PCIe 4.0/ 3.0 x4 1
  • Supports SATA 6Gb/s
  • Supports 2242/ 2260/ 2280/ 22110 storage devices
  • M2_2 slot (from AMD B550 chipset)
  • Supports PCIe 3.0x4
  • Supports 2242/ 2260/ 2280 storage devices
  • The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB

AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)

AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
  • Realtek® ALC892 Codec
    7.1-Channel High Definition Audio
LAN
  • 1x Realtek® 8111H Gigabit LAN controller
Internal Connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x 4-pin RGB LED connector
  • 2x 3-pin RAINBOW LED connectors
  • 1xTPM module connector
  • 1x Clear CMOS jumper
Back Panel Ports
  • Keyboard / Mouse
  • DisplayPort
  • LAN
  • HD Audio Connectors
  • Flash BIOS Button
  • USB 2.0
  • HDMI
  • USB 2.0
  • USB 3.2 Gen 1 5Gbps Type-A
  • USB 3.2 Gen 2 10Gbps Type-A+C
Mounting
  • 9 mounting holes
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)

.
Typ pamäťového modulu: DDR4
Rozhranie: USB Type-C
Socket (pätica): Socket AM4
Formát: ATX
Integrovaná grafická karta: Ano (CPU)
Chipset: AMD
PCI express 16x: Více než 1
Integrovaná LAN karta: 1
