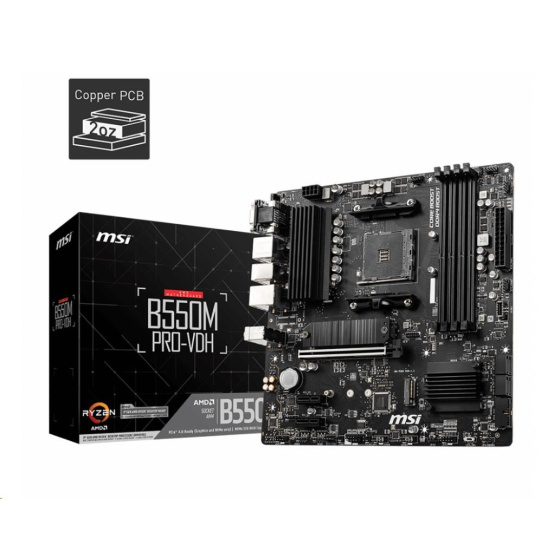

MSI MB Sc AM4 B550M PRO-VDH, AMD B550, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

Novinka
Pridať do obľúbenýchMSI MB Sc AM4 B550M PRO-VDH, AMD B550, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
Socket (pätica):Socket AM4; Formát:micro ATX; Integrovaná grafická karta; Chipset:AMD; Typ pamäťového modulu:DDR4; PCI express 16x:1; Integrovaná LAN karta:1; Rozhranie:HDMI, VGA, USB 2.0, USB 3.2, 3.5mm Jack, DisplayPort.

Kód produktu2648122
Part numberB550M PRO-VDH
EAN produktu4719072758417

Záruka:36 Měsíc(ů)
Výrobca:MSI
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
125 EUR
Vaša cena bez DPH
71.67 EUR
Vaša cena vrátane DPH
86 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

B550M PRO-VDH

  • Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
  • Premium Thermal Solution: 7W/mK pad, additional choke thermal pad and M.2 Shield Frozr are built for high performance system and non-stop works
  • Powerful Design: Core Boost, Digital PWM IC, 2oz Thickened Copper PCB, Creator Genie, DDR4 Boost
  • Audio Boost: Reward your ears with studio grade sound quality
  • Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.

CPU

Supports AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop processors

CHIPSET

AMD B550 Chipset

MEMORY

4x DDR4 memory slots, support up to 128GB*
Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
1DPC 1R max speed 4400 MHZ
1DPC 2R max speed 3733 MHZ
2DPC 1R max speed 3866 MHZ
2DPC 2R max speed 3466 MHZ
Dual channel memory architecture
Supports non-ECC UDIMM memory
Supports ECC UDIMM memory
Supports un-buffered memory
*Please refer www.msi.com for more information on compatible memory.

EXPANSION SLOT

1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)*
2x PCIe 3.0 x1 slots
*The supported specification depends on installed processor.

ONBOARD GRAPHICS

1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz*
1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz*
1x HDMI 1.4 port, supports a maximum resolution of 4096x2160 @60Hz*/**
Support for HDMI™ 1.4 version, HDCP 1.4 & 2.3
Maximum shared memory of 16 GB
*Available for the processor with integrated graphics.
**Graphics specifications may vary depending on the CPU installed.

STORAGE

AMD B550 Chipset
4x SATA 6Gb/s ports
2x M.2 slots (Key M)
M2_1 slot (from AMD Processor)
Supports PCIe 4.0/ 3.0 x4*
Supports SATA 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
M2_2 slot (from AMD B550 chipset)
Supports PCIe 3.0x4
Supports 2242/ 2260/ 2280 storage devices
*The supported specification depends on installed processor.

RAID

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

AMD B550 Chipset
3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel

AUDIO

Realtek® ALC892/ALC897 Codec
7.1-Channel High Definition Audio

LAN

1x Realtek® 8111HN Gigabit LAN controller

INTERNAL CONNECTORS

1x 24-pin ATX main power connector
1x 8-pin ATX 12V power connector
4x SATA 6Gb/s connectors
2x M.2 slots (M-Key)
1x USB 3.2 Gen 1 5Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
3x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Serial port connector
1x Chassis Intrusion connector
2x 4-pin RGB LED connectors
2x 3-pin RAINBOW LED connectors
1xTPM module connector
1x Clear CMOS jumper

BACK PANEL PORTS

VGA
USB 3.2 Gen 1 5Gbps Type-A
Keyboard / Mouse
LAN
Flash BIOS button
DisplayPort
HDMI
USB 2.0
USB 3.2 Gen 1 5Gbps Type-A
HD Audio Connectors
B550M PRO-VDH WIFI

DIMENSIONS

Micro-ATX Form Factor
9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)

MOUNTING

8 mounting holes

.
Typ pamäťového modulu: DDR4
Rozhranie: DisplayPort
Socket (pätica): Socket AM4
Formát: micro ATX
Integrovaná grafická karta: Áno
Chipset: AMD
PCI express 16x: 1
Integrovaná LAN karta: 1
