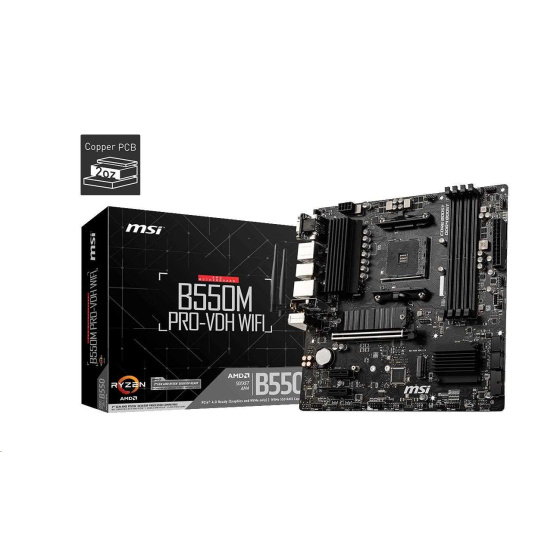

MSI MB Sc AM4 B550M PRO-VDH WIFI, AMD B550, 4xDDR4, VGA, mATX

Pridať do obľúbenýchMSI MB Sc AM4 B550M PRO-VDH WIFI, AMD B550, 4xDDR4, VGA, mATX
Socket (pätica):Socket AM4; Formát:micro ATX; Integrovaná grafická karta; Chipset:AMD; Typ pamäťového modulu:DDR4; PCI express 16x:1; Integrovaná LAN karta:1; Podpora RAID:1, 10; Rozhranie:HDMI, VGA, USB 2.0, USB 3.2, 3.5mm Jack, LAN, DisplayPort; Ďalšie rozhranie:WiFi.

Kód produktu2647953
Part numberB550M PRO-VDH WIFI
EAN produktu4719072733698

Záruka:36 Měsíc(ů)
Výrobca:MSI
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
160 EUR
Vaša cena bez DPH
91.67 EUR
Vaša cena vrátane DPH
110 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

B550M PRO-VDH WIFI


TECHNICAL SPECIFICATIONS

































CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD B550 Chipset
Memory


  • 4x DDR4 memory slots, support up to 128GB 1

  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

  • Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/

  • 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE

  • 1DPC 1R max speed 4400 MHZ

  • 1DPC 2R max speed 3733 MHZ

  • 2DPC 1R max speed 3866 MHZ

  • 2DPC 2R max speed 3466 MHZ

  • Dual channel memory architecture

  • Supports non-ECC UDIMM memory

  • Supports ECC UDIMM memory

  • Supports un-buffered memory
    Please refer www.msi.com for more information on compatible memory.


Slots

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1

  • 2x PCIe 3.0 x1 slots


Onboard Graphics

  • 1x VGA port, supports resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz1

  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz1

  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz1

  • Maximum shared memory of 16 GB

  • Available for the processor with integrated graphics.


Storage

  • 4x SATA 6Gb/s ports

  • 2x M.2 slots (Key M)

  • M2_1 slot (from AMD Processor)

  • Supports PCIe 4.0/ 3.0 x4 1

  • Supports SATA 6Gb/s

  • Supports 2242/ 2260/ 2280 storage devices

  • M2_2 slot (from AMD B550 chipset)

  • Supports PCIe 3.0x4

  • Supports 2242/ 2260/ 2280 storage devices

  • The supported specification depends on installed processor.


RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

  • AMD B550 Chipset

  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor

  • 4x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel


Audio

  • Realtek® ALC892 Codec
    7.1-Channel High Definition Audio


LAN

  • 1x Realtek® 8111HN Gigabit LAN controller


Internal Connectors

  • 1x 24-pin ATX main power connector

  • 1x 8-pin ATX 12V power connector

  • 4x SATA 6Gb/s connectors

  • 2x M.2 slots (M-Key)

  • 1x USB 3.2 Gen 1 5Gbps Type-C port

  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

  • 1x 4-pin CPU fan connector

  • 1x 4-pin water-pump fan connector

  • 3x 4-pin system fan connectors

  • 1x Front panel audio connector

  • 2x System panel connectors

  • 1x Serial port connector

  • 1x Chassis Intrusion connector

  • 2x 4-pin RGB LED connectors

  • 2x 3-pin RAINBOW LED connectors

  • 1xTPM module connector

  • 1x Clear CMOS jumper


Back Panel Ports

  • VGA

  • USB 3.2 Gen 1 5Gbps Type-A

  • Keyboard / Mouse

  • LAN

  • Flash BIOS Button

  • DisplayPort

  • HDMI

  • USB 2.0

  • USB 3.2 Gen 1 5Gbps Type-A

  • Wi-Fi Antenna connectors

  • 3x Audio jacks


Dimensions

  • Micro-ATX Form Factor

  • 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)


Mounting

  • 8 mounting holes



.
Typ pamäťového modulu: DDR4
Rozhranie: 3.5mm Jack
Socket (pätica): Socket AM4
Formát: micro ATX
Integrovaná grafická karta: Áno
Chipset: AMD
PCI express 16x: 1
Integrovaná LAN karta: 1
Podpora RAID: 10
Ďalšie rozhranie: WiFi
