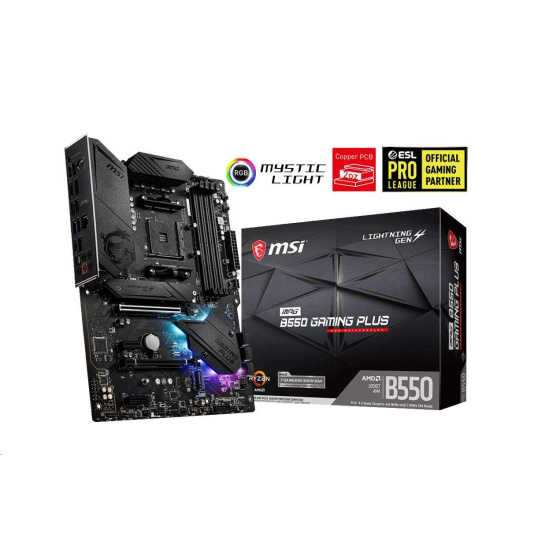

MSI MB Sc AM4 MPG B550 GAMING PLUS, AMD B550, 4xDDR4, VGA, ATX

Pridať do obľúbenýchMSI MB Sc AM4 MPG B550 GAMING PLUS, AMD B550, 4xDDR4, VGA, ATX
Socket (pätica):Socket AM4; Formát:ATX; Integrovaná grafická karta; Chipset:AMD; Typ pamäťového modulu:DDR4; PCI express 16x:Více než 1; Integrovaná LAN karta:1; Podpora RAID:1, 10; Rozhranie:HDMI, USB 2.0, USB 3.2, LAN, DisplayPort, USB Type-C; Ďalšie rozhranie:S/PDIF.

Kód produktu2647954
Part numberMPG B550 GAMING PLUS
EAN produktu4719072731885

Záruka:36 Měsíc(ů)
Výrobca:MSI
Skladová dostupnosť:Na dotaz
Bežná cena
165 EUR
Vaša cena bez DPH
120.00 EUR
Vaša cena vrátane DPH
144 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

MPG B550 GAMING PLUS


TECHNICAL SPECIFICATIONS









































CPU Supports AM4 socket 3rd Gen AMD Ryzen™ processors, and future AMD Ryzen™ processors with BIOS update
Chipset AMD B550 Chipset
Memory

  • 4x DDR4 memory slots, support up to 128GB 1

  • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC

  • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733 / 3866/ 4000/ 4133/ 4266/

  • 4400+ MHz by A-XMP OC MODE

  • 1DPC 1R max speed 4400 MHz

  • 1DPC 2R max speed 3866 MHz

  • 2DPC 1R max speed 4000 MHz

  • 2DPC 2R max speed 3600 MHz

  • Dual channel memory architecture

  • Supports non-ECC UDIMM memory

  • Supports ECC UDIMM memory (non-ECC mode)

  • Supports un-buffered memory

  • Please refer www.msi.com for more information on compatible memory.


Slots

  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1)

  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed

  • 2x PCIe 3.0 x1 slots
    The supported specification depends on installed processor.
    When installing PCIe SSD in M.2_2, PCI_E3 slot will be unavailable.


Onboard Graphics

  • 1x HDMI port, supports a maximum resolution of 4096x2160 @24Hz

  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz

  • Maximum shared memory of 16 GB
    Available for the processor with integrated graphics.


MULTI-GPU

  • Supports 2-Way AMD CrossFire™ Technology


Storage

AMD B550 Chipset



  • 6x SATA 6Gb/s ports

  • 2x M.2 slots (Key M)

  • M2_1 slot (from AMD Processor)

  • Supports PCIe 4.0/ 3.0 x4 1

  • Supports SATA 6Gb/s

  • Supports 2242/ 2260/ 2280/ 22110 storage devices

  • M2_2 slot (from AMD B550 chipset)

  • Supports PCIe 3.0x4

  • Supports 2242/ 2260/ 2280 storage devices


RAID

  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices


USB

AMD B550 Chipset



  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)

  • 8x USB 2.0 ports (4 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
    AMD Processor

  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)

  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel


Audio

Realtek® ALC892 Codec



  • 7.1-Channel High Definition Audio

  • Supports S/PDIF output


LAN

  • 1x Realtek® 8111HN Gigabit LAN controller


Internal Connectors

  • 1x 24-pin ATX main power connector

  • 1x 8-pin ATX 12V power connector

  • 6x SATA 6Gb/s connectors

  • 2x M.2 slots (M-Key)

  • 1x USB 3.2 Gen 1 5Gbps Type-C port

  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)

  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)

  • 1x 4-pin CPU fan connector

  • 1x 4-pin water-pump fan connector

  • 6x 4-pin system fan connectors

  • 1x Front panel audio connector

  • 2x System panel connectors

  • 1x Chassis Intrusion connector

  • 1x 4-pin RGB LED connector

  • 2x 3-pin RAINBOW LED connectors

  • 1xTPM module connector

  • 1x Clear CMOS jumper


Back Panel Ports

  • PS/2 Combo Port

  • DisplayPort

  • LAN Port

  • USB 3.2 Gen 2 10Gbps (Type-A)

  • HD Audio Connectors

  • Flash BIOS Button

  • USB 2.0

  • HDMI

  • USB 2.0

  • USB 3.2 Gen 1 5Gbps (Type-A)

  • USB 3.2 Gen 2 10Gbps (Type-C)

  • Optical S/PDIF OUT


Led Features

  • 1x EZ LED Control switch

  • 4x EZ Debug LED


I/O Controller

  • NUVOTON NCT6687-R Controller Chip


Hardware Monitor

  • CPU/ System/ Chipset temperature detection

  • CPU/ System/ Pump fan speed detection

  • CPU/ System/ Pump fan speed control


Dimensions

  • ATX Form Factor

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)


Mounting

  • 9 mounting holes



.
Typ pamäťového modulu: DDR4
Rozhranie: USB Type-C
Socket (pätica): Socket AM4
Formát: ATX
Integrovaná grafická karta: Áno
Chipset: AMD
PCI express 16x: Více než 1
Integrovaná LAN karta: 1
Podpora RAID: 10
Ďalšie rozhranie: S/PDIF
