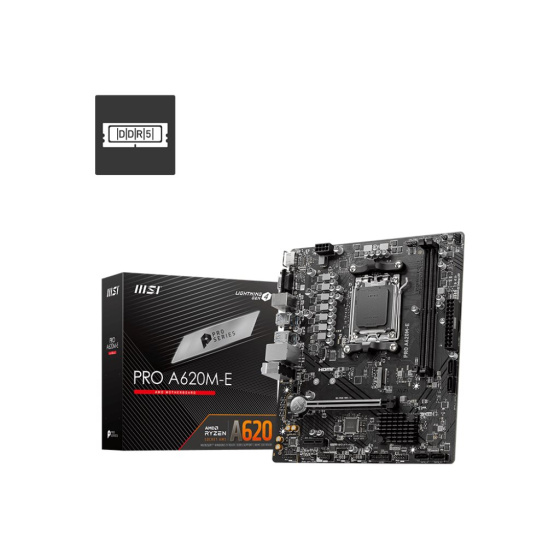

MSI MB Sc AM5 PRO A620M-E, AMD A620, 2xDDR5, 1xHDMI, 1xVGA, mATX

doprava zadarmo
Pridať do obľúbenýchMSI MB Sc AM5 PRO A620M-E, AMD A620, 2xDDR5, 1xHDMI, 1xVGA, mATX
Formát:micro ATX; Chipset:AMD A620; Socket (pätica):Socket AM5 (LGA 1718); Typ pamäťového modulu:DDR5; Podpora RAID:0, 1, 10; PCI express 16x:1.

Kód produktu2648471
Part numberPRO A620M-E
EAN produktu4711377093804

Záruka:36 Měsíc(ů)
Výrobca:MSI
Skladová dostupnosť:Skladom
Vaša cena bez DPH
71.74 EUR
Vaša cena vrátane DPH
86.80 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

MSI PRO A620M-E

  • Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors
  • Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC)
  • Core Boost : With premium layout and digital power design to support more cores and provide better performance
  • Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
  • Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
  • AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength


CPU

Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5



Chipset

AMD A620



Memory

2x DDR5, Maximum Memory Capacity 128GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO



Graphics

1x HDMI™
Support HDMITM 2.1, maximum resolution of 4K 60Hz*
1x VGA
Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.



Expansion Slots

1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)



Storage

1x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices



Ethernet

Realtek® RTL8111H Gigabit LAN



USB

2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)



Audio

Realtek® ALC897 Codec
7.1-Channel High Definition Audio



Internal I/O Ports

1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports



Back Panel I/O Ports

1x HDMI™
1x VGA
2x Keyboard/Mouse
4x USB 3.2 Gen 1 5Gbps (Type-A)
1x LAN port
3x Audio connectors
2x USB 2.0



LED FEATURE

4x EZ Debug LED



Operating System

Support for Windows® 11 64-bit, Windows® 10 64-bit



Form Factor

mATX
211mmx243.84mm


.
Technologie paměti RAM: DDR5
Socket (patice): Socket AM5 (LGA 1718)
Formát základní desky: micro ATX
Chipset: AMD A620
PCI Express x16: 1
Podpora RAID: 1
Podpora RAID: 10
Podpora RAID: 0
COM port: Ano
3.5mm Jack: Ano
Bezdrátové připojení: bez
Pro procesory: AMD
Počet paměťových slotů: 2
DisplayPort: 0
TPM: Ano
USB 2: 6
USB 3: 6
M.2 slot: 1
SATA 3: 4
VGA: 1
DVI: 0
HDMI: 1
Led Header: Ano
PCI Express x1: 1
LAN: 1Gbit/s
