SEASONIC zdroj 300W SSP-300SUB, 80+ Bronze, Flex ATX v1.0

Pridať do obľúbenýchSEASONIC zdroj 300W SSP-300SUB, 80+ Bronze, Flex ATX v1.0
Výkon zdroja (vo W):300; Formát zdroja:ATX; Konektory:Molex, FDD; Konektory pre základnú dosku:ATX 24-pin.

Kód produktu1036984
Part number1SUB30BFD2A10W
EAN produktu4711173873501

Záruka:24 Měsíc(ů)
Výrobca:Seasonic
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
56 EUR
Vaša cena bez DPH
35.00 EUR
Vaša cena vrátane DPH
42 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

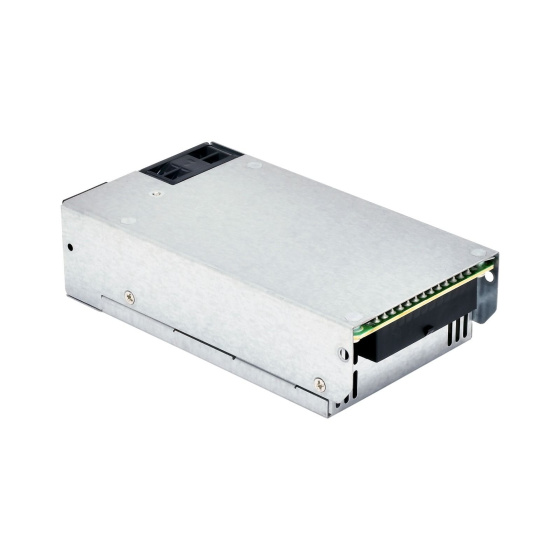

SUB Flex ATX Power Supply


The Seasonic industrial level switch mode power supplies offer a reliable source for a wide range of setups. Our fully modular Flex ATX range with its full range AC input comes in, 250 W and 300 W versions and is the ideal choice for workstations, standard or advanced servers and various automation or communication applications. Their super low noise fan control makes them a pleasant companion in any industrial system.


OVERVIEW:
















































SUG SUB M1U
80PLUS Gold Bronze Gold
Intel ATX 12 V v2.31 compliant YES YES YES
EPS 12 V compliant YES YES YES
Flex ATX v1.0 compliant YES YES YES
Dimensions 150 mm (L) x 81.5 mm (W) x 40.5 mm (H) 150 mm (L) x 81.5 mm (W) x 40.5 mm (H) 190 mm (L) x 81.5 mm (W) x 40.6 mm (H)
DC to DC converter design Yes No Yes
Forward converter circuit No YES No
Fully modular cables Yes Yes Yes
Semi modular cables No No No
Fixed cables No No No
40 mm double ball bearing fan Yes Yes Yes
S3FC - including Fanless mode No Yes Yes
S2FC - Smart and Silent Fan Control Yes No No
Easy-swap connector design Yes Yes Yes
Zero minimum load on 3.3 V rail Yes No Yes
Short circuit protection on all outputs Yes Yes Yes
Over voltage protection Yes Yes Yes
Over power protection Yes Yes Yes
100 % HiPot test Yes Yes Yes

Specifications





SSP-300SUB




























Specifications
Input frequency 47 / 63 Hz
Inrush current at cold start 100 A max.
Efficiency 80 PLUS Bronze
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
Ripple / noise 1 %
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 95 % (typical)















DC Outputs
+3.3 V +5 V +12 V1 +12 V2 -12 V +5 Vsb Total continuous power Input Type
14 A 17 A 18 A 18 A 0.8 A 2 A 300 W 100–240 VAC
110 W 252 W 9.6 W 10 W



.
Výkon zdroja (vo W): 300
Formát zdroja: ATX
Konektory: Molex
Konektory pre základnú dosku: ATX 24-pin
