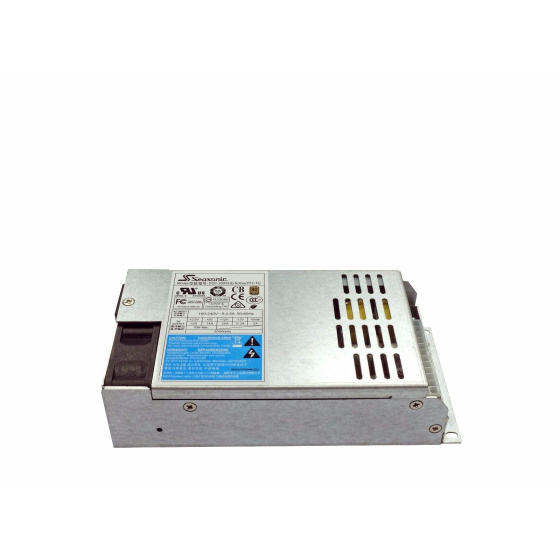

SEASONIC zdroj 300W SSP-300SUG, 80+ Gold, Flex ATX v1.0

Novinka
Pridať do obľúbenýchSEASONIC zdroj 300W SSP-300SUG, 80+ Gold, Flex ATX v1.0
Výkon zdroja (vo W):300; Formát zdroja:ATX; Konektory:Molex, FDD; Konektory pre základnú dosku:ATX 24-pin.

Kód produktu522249
Part numberSSP-300SUG
EAN produktu4711173873150

Záruka:24 Měsíc(ů)
Výrobca:Seasonic
Skladová dostupnosť:Skladom u dodávateľa, expedicia do 24 hodin
Bežná cena
73 EUR
Vaša cena bez DPH
46.67 EUR
Vaša cena vrátane DPH
56 EUR
Počet
ks
Otázka na predajcu>






Pridať produkt k porovnaniu>Pridať produkt k obľúbeným>
Popis
Parametre
Strážny pes

This is a Seasonic industrial power supply meeting important EMI, EMC and safety standards. This unit is ATX 12 V v.2.31 and EPS 12 V compliant with DC to DC converter design and important protection features. It features Active PFC (Power Factor Correction) circuit design and is 80 PLUS® Gold efficiency rated, meaning that at 115 V AC input the unit can achieve up to 90 % efficiency at 50 % load. This industrial power supply is built with quality and reliability in mind.


OVERVIEW:




















































SUG SUB M1U
80PLUS Gold Bronze Gold
Intel ATX 12 V v2.31 compliant YES YES YES
EPS 12 V compliant YES YES YES
Flex ATX v1.0 compliant YES YES YES
Dimensions 150 mm (L) x 81.5 mm (W) x 40.5 mm (H) 150 mm (L) x 81.5 mm (W) x 40.5 mm (H) 190 mm (L) x 81.5 mm (W) x 40.6 mm (H)
DC to DC converter design Yes No Yes
Forward converter circuit No YES No
Fully modular cables Yes Yes Yes
Semi modular cables No No No
Fixed cables No No No
40 mm double ball bearing fan Yes Yes Yes
S3FC - including Fanless mode No Yes Yes
S2FC - Smart and Silent Fan Control Yes No No
Easy-swap connector design Yes Yes Yes
Zero minimum load on 3.3 V rail Yes No Yes
Short circuit protection on all outputs Yes Yes Yes
Over voltage protection Yes Yes Yes
Over power protection Yes Yes Yes
100 % HiPot test Yes Yes Yes
100 % Burn-in, high temperature cycled on/off Yes Yes Yes
Safety compliance CB, cUL, TUV, CCC, BSMI CB, cUL, TUV, CCC, BSMI CB, cUL, TUV






EMI/EMC compliance CE, FCC, RCM CE, FCC, RCM CE, FCC, RCM

Specifications





SSP-300SUG




























Specifications
Input frequency 50 / 60 Hz
Inrush current at cold start 100 A max.
Efficiency 80 PLUS Gold
Line regulation ± 1 % (typical)
Load regulation ± 5 % (typical)
Cross regulation ± 5 % (typical)
Ripple / noise 1 %
MTBF, full load @ 25 °C ambient (excl. DC fan) > 100,000 hours
Active Power Factor Correction 99 % (typical)















DC Outputs
+3.3 V +5 V +12 V Combined -12 V +5 Vsb Total continuous power Input Type
10 A 14 A 25 A 0.3 A 2 A 300 W 100–240 VAC
100 W 300 W 3.6 W 10 W



.
Výkon zdroja (vo W): 300
Formát zdroja: ATX
Konektory: Molex
Konektory pre základnú dosku: ATX 24-pin
Aktuálna cena produktu je56EUR  s dph
